RGBlink Mini MX SDI Production MixerSKU: RGMINIMXSDIRGBlink mini-mx SDI features four 4K HDMI 2.0 inputs and four 3G SDI inputs, one UVC and one NDI bi-direction input & output, supporting digital embedded audio and video signals from PC, Camera and more. Also analog audio by 2 x Phamton,1 x Line in and 1 x Mic, and a blue tooth audio.There are two separately HDMI outputs for multi-viewer Preview, Program or Test Pattern. One USB 3.0 output supports YUY2 and MJPEG capture formats, which can be recognized as a webcam for streaming to Facebook, YouTube, ZOOM, etc. The UVC bi-direction for USB disk recording or wireless speaker or wireless microphone, such as RGBlink AI mini. The ethernet port with NDI license enable is bi-direction too, NDI encoder and decoder can work at the same time. mini-mx SDI is built in with 5-inch TFT touch panel for menu operation and multiviewer video display.Compared with mini-mx, mini-mx SDI has 4 more 3G SDI inputs and a ready to license NDI bi-direction in & out, also Noise Reduction, Equalizer, Echo, Reverb, Voice Fusion for audio inputs. Else it is the same to mini-mx, which features including dynamic output control, multi-view preview, picture in picture, chroma Key, luma Key, transitions, on board PTZ camera controls and much more. mini-mx SDI is web APP ready, also integrated with TAO Cloud for remote control and restream to at least 4 content platforms at the same time.FesturesEmbedded 5.5-inch TFT and touchscreen2K streaming and live via IP and UVC10 input connectors ( 4 x HDMI 2.0, 4 x 3G-SDl, 2K UVC, and 2K NDI)6-CH customizable video inputStreaming supports NDI | HX2
sStreaming and management via RGBlink TAO CloudMaximum 8 channels for audio mixingManual real-time control of PTZ cameras, such as zoom in/out, rotationDynamic text overlay/scoreboard and focus, via VISCA or NDIConfigurable VFA (video follow audio)Third-party control and integration via free RGBlink Central Control Protocol2-CH independent HD HDMI
RGBlink Mini Edge
SKU: MINIEDG
RGBlink Mini Edge is a controllable live broadcast recording and directing station with 5 video inputs, 8 audio inputs and multiple output interfaces, supporting multi-layer and mixing control. It is not only suitable for multi-platform live broadcasts and remote audio and video conferencing, but can also be used for various live events such as stages, education, press conferences, and sports games, while providing high-quality functions. while having excellent cost performance. The onboard 5.5-inch HD full-color screen monitors all input channels and output images in real time. Full-featured keyboard, fast control of any function.Integrated PTZ Camera ControlForget about having multiple separate control panels for video and camera control. mini-edge brings it altogether, supporting industry standard VISCA protocol for PTZ control directly from the mixer. Control up to four separate cameras with pan, tilt, zoom and focus.Precise Fingertip ControlIntegrated joystick provides tactile control for each PTZ camera. Used together toggle, pan, tilt, zoom and focus from the front panel. Joystick and toggle are additionally dynamically assigned to settings including scale, position and crop for enhanced useability.One-Click Chroma KeyEnable presenters to be in virtual studios and environments with Chroma Key.
Select from standard key colours and enable Chroma Key directly on mini-edge without the need for an app. Refine colour
selection and tolerances from the touch screen to optimise.
Built-in 5.5 inch LCD screenQuad HDMI 2.0 inputs (HDCP), resolution up to 4K@60One USB (UVC) input supports camera source from RGBlink vue PTZ and webCAMDual HDMI 1.3 outputs for monitoring of multi-window PVW, PGM or AUXEight audio inputs with Four HDMI 2.0 embedded audio inputs and Four external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio)Dual audio out jacks for listeningEight audio inputs allow for output of mixed audio across one or all available channelsWeb control and monitoring, compatible with mobile devices and computers, compatible with multiple operating systemsSimultaneous streaming to 4 live streaming platforms via RTMP(S)Support multi-layer overlay, layer scaling and cropping17 switching effect modes5-direction joystick for controlling up to 4 PTZ camerasSupport Chroma KeyOne-key recording. Recording capacity of hard drive is up to 2TSave up to 10 scene presets and thumbnails for real-time full preview5G/4G Smartphone Tethering for iOS and Android systemAir cooling design to ensure 24/7 stable operation
RGBlink Mini Edge SDI Production MixerSKU: RGMINIEDGSDIRGBlink mini-edge SDI features four 4K HDMI 2.0 inputs and four 3G SDI inputs, one UVC and one NDI bi-direction input & output, supporting digital embedded audio and video signals from PC, Camera and more. Also analog audio by 1xPhamton,1xLine in and 1xMic, and a blue tooth audio.There are two separately HDMI outputs for multi-viewer Preview, Program or Test Pattern. One USB 3.0 output supports YUY2 and MJPEG capture formats, which can be recognized as webcam for streaming to Facebook, YouTube, ZOOM, etc. The UVC bi-direction for USB disk recording or wireless speaker or wireless microphone, such as RGBlink AI mini. The ethernet port with NDI license enable is bi-direction too, NDI encoder and decoder can work at the same time. mini-edge SDI is built in with 5-inch TFT panel for menu operation and multiviewer video display.Compared with mini-edge, mini-edge SDI has 4 more 3G SDI inputs and a ready to license NDI bi-direction in & out, also noise reduction for audio inputs. Else it is the same to mini-edge, which features including dynamic output control, multi-view preview, picture in picture, chroma Key, luma Key, transitions, on board PTZ camera controls and much more.FeaturesEmbedded 5.5-inch mon itor10 input connectors (4 x HDMI 2.0, 4 x 3G-SDl, 2K UVC, and 2K NDI)Streaming supports NDI | HX2Streaming and management via RGBlink TAO Cloud6-CH customizable video inputsManual real-time control of PTZ cameras, such as zoom in/out, rotationMaximum 8 channels for audio mixing and focus, via VISCA or NDI2-CH independent HD HDMIThird-party control and integration via free RGBlink Central Control Protocol2K streaming and live via IP and UVC
RGBlink Mini MXThe RGBlink Mini MX is a professional 4 channel video and 8 channel audio mixer for productions, live events and streaming events. It is operated via mechanical controls, the 5.5" touch display or via a browser-based web interface on connected notebooks/tablets or smartphones.The joystick and zoom bar allow control of up to 4 PTZ cameras using the VISCA protocol. Video signals, images for chroma-key cross-fades, subtitles and logos can be placed in different layers and scaled and cropped as desired. Numerous transition modes, storable scene settings and recallable sound effects guarantee a professional result. The intuitive controls make the Mini MX the perfect companion for events and hybrid events, additionally the programme stream can be recorded on an external USB memory.Features4K multi-channel streaming video mixerBuilt-in 5.5 inch touch screen for menu operationQuad HDMI 2.0 inputs, resolutions up to 4K@60Dual HDMI 1.3 outputs for monitoring of multi-window PVW and PGMDual MIC In, Dual Audio Out for audio monitoringMix for HDMI embedded and external audioOne-key recording. Recording capacity of hard drive is up to 2TSupport multi-layer overlay, layer scaling and cropping15 switch effect modes5-direction joystick for controlling up to 4 PTZ camerasSave and store up to 16 scene presets. One-click for preset recallControl via computer and mobile phoneSupport Chroma KeyOne-key quick switch between portrait and landscape screenStream to up to 4 platforms simultaneously over IP and 32 platforms via TAO APPTechnical dataConnectionInput: 4x HDMI2.0 (HDMI-A) 4K Output: 2x HDMI 2K (HDMI-A), 1x USB-C recording, 1x USB-C streamAudio IN: 2×6.35mm XLR/6.35mm TRS Jack, 1×6.35mm TRS jackAudio OUT: 1×6.35mm TRS jack, 1× 3.5mm stereo jack input/outputNetwork: 1x RJ45 LANPower supply: Type-C 12V/3A max 36Resolution InputSMPTE: 720p@50/60 |1080i@50 | 1080p@23.98/24.97/50/59.94/60Vesa: 1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 |
1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 | 3840×2160@60 | 4096x2160@60Resolution OutpuSMPTE: 720p@50/60 | 1080p@23.98/24.97/50/59.94/60 Vesa: 1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 | 1920×1080@6Streaming in H.265Recording in H.264VideoVideo formats: HDMI 2.0 | HDCP 2.2Video latency <4 framesRecord Format: MP4 | WAVDisk Format: FAT32( ≤32 GB) | exFAT(64GB~2T)AudioAudio Format: HDMI Linear PCM, 24 bits/48 kHz, 2 chUSB Linear PCM, 16 bits/48 kHz, 2 chSupported standardsHDMI 2.0USB 3.0H.265 ITU-T H.265/ ISO/IEC 23008 -2Colour space and samplingRGB 8bit 4:4:4 YUVPower supplyType-C 12V/3A max 36WDimensions280mm x 222.6mm x 63.5mm (l/w/h) 1480g net Weight1/4"-20 tripod thread and VESA mount 100 x 100 mm on the underside
RGBlink VUE NDI PTZ Camera 30x Optical Zoom
SKU: RGB30X-PNDI-TLY
The RGBlink VUE NDI PTZ Camera 30x Optical Zoom is a professional broadcast PTZ camera in a sleek black design with a tally LED light on top. With its fast, silent rotation and zoom function, it is ideal for smaller productions, live events or in the education sector. Video output is via HDMI, 3G-SDI, USB 2.0 or IP streaming via network at up to 1080p60. Even in low-light conditions, it delivers top-notch image quality with rich colors thanks to dynamic noise reduction. The lens' high zoom factor and intelligent, fast autofocus allow for sharp distance shots.
The camera has one HDMI, 3G-SDI, USB and network port each, simultaneously outputting video signals at a maximum of 1080p60. Connected to a PC via USB, the camera is recognized as a UVC webcam without driver installation. It can be immediately integrated into OBS-Studio for streaming or into Zoom, MS-Teams or similar for video conferencing. The video signal can be output at 720p or 1080p with the frames common in broadcast. Optionally, date, time and the individual camera name can be displayed in the image. Audio signals from a microphone or line-in device are embedded in the HDMI, SDI or network stream via the 3.5 mm stereo jack. Power is supplied to the camera via the included AC adapter, or alternatively via LAN thanks to the PoE function if Power over Ethernet is supported by the router.
Features
High image quality with dynamic noise reduction in low light conditionsHigh-speed optical zoomNDI|HX2 license: control, video over IP and embedded audio signal Full HD resolution with up to 60 frames/sec simultaneously on all video outputsEmbedded audio in HDMI, SDI and network streamH.264/H.265 dual streaming with all relevant network protocolsTally LED light on topOSD menu with manual IP entry/DHCP activation via remote controlAdministration via web browserPTZ camera control via VISCA or Pelco protocolsPower supply via PoEPower saving sleep function with parking position of lens vertically downwards1/4" tripod thread on the bottom sideSuitable for wall or ceiling mounting (accessories not included)
Technical data
Interface
Output 3G SDI 1xBNCHDMI 1xHDMI-AUSB 1xUSB-ALAN 1xRJ45Audio IN 1x3.5mm Stereo JackControl RS232 IN/OUT 2xDIN8RS485 1x4pin TerminalPower 1xDC12V Jack
Performance
Video format
1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 1080P59.94 1080I59.94 1080P29.97 720P59.94
Camera 30XOptical Zoom f=5.2~148.4mm View Angle 2.14°~ 58.1° AV F1.3 ~ F4.8 Digital Zoom 10XMinimum Illumination 0.5Lux (F1.8, AGC ON)DNR 2D & 3D DNRWhite Balance Auto/Manual/One Push/3000K to 7000K(selectable)Focus Auto/ManualAperture/Electronic Shutter Auto/ManualBLC ON/OFFWDR OFF/Dynamic Level AdjustmentVideo Adjustment Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curveSNR >55dBEffective Pixels 2.07m,16:9
Pan-and-Tilt Parameter
Pan/Tilt Movement -170°~+170°/'-30°~+90°Pan/Tilt Control Speed 0.1~60°/S;0.1~30°/SPreset Speed/Quantity Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)360° TALLY full 360° view of TALLY
Audio Compression Format AAC | MP3 | G.711AVideo Compression Format H.264 | H.265 | Dual Streaming OutputOutput Resolutions 1080p60/59.94/50/30/29.97/25 | 1080i60/59.94/50 | 720p60/59.94/50Control Protocol VISCA | Pelco-D | Pelco-PBaud Rate(bps) 115200 | 9600 | 4800 | 2400bpsNetwork Protocol RTSP | RTMP | ONVIF | GB/T28181 | VISCASupported Standards SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
Power
Input Voltage DC12V/1.5AMax Power 12W
Environment
Temperature -10℃~50℃Humidity 20%~80%
Physical
Weight Net 1.7kgDimension Net 180mm(front)×188mm(side)×198mm(height)
In the box
1 x RGBlink VUE NDI PTZ Camera 30x Optical Zoom1 x IR remote control (2 x AAA batteries not included)1 x 230V power supply1 x RS-232 serial cable1 x user manual
ATOMOS NinjaSKU: ATOMNJA004The handy and compact Ninja series from Atomos has long been setting new standards in video production. Whether as a preview monitor with numerous analysis tools or as a professional solution for external recording. The NINJA has not only established itself with filmmakers and other creative professionals, but has also constantly improved to meet the demands of users. The brand new NINJA is at the top of this ecosystem. The completely new OS11 operating system not only makes it easier for the user to operate, but also ensures a pleasant and professional look. The tried and tested Atomos accessories also fit through the proven form factor. Advanced monitoring tools such as ARRI False Color or SegmentPro integrate the NINJA perfectly into your individual workflow. The popular H.265 codec is automatically included on top of the NINJA! All these tools make the NINJA an unbeatable companion on the film set or in the field. In combination with the Atomos Connect module, you can give your Atomos NINJA even more possibilities and integrate your camera into the Camera2Cloud workflow.
In the box
1x Ninja 1 x battery eliminator1 x USB C PD to 2.1mm DC power lead (2m)1x QuickStart Guide
recommended is a 30Wpower supply unit (not included) Features
Lightweight, robust and reliable unit with a new, clear and modern user interface that is compatible with a wide range of cameras via HDMIRecords up to 4Kp60 in Apple ProRes, Avid DNxHD and now H.265 (HEVC) and up to 6Kp30 in Apple ProRes RAWH.265 recording and NDI TX same time +New AtomOS 11 operating system improves memory management, increases responsiveness and offers new featuresShare what you see on your Atomos screen with other Atomos Connect users, as well as with Shogun Connect, iPad, Mac and Apple TV - wirelessly on location or anywhere in the world with Atomos RemoteViewNew tools for pre-scheduling recording and playback with RecordAssist and PlayBackAssist
• Additional advanced monitoring tools with one-touch operation: SegmentPro, EL Zone, ARRI False Color and the proven tools such as Vectorscopes, Zebra, Atomos False Color, Onion Skin, etc.The AtomX extension port provides an ecosystem of SDI connectivity and NDI workflows with Atomos Connect and AtomXUsing Atomos Connect as a gateway to the cloud to benefit from all the advantages of Atomos Cloud StudioSame form factor as NinjaV: all accessories are compatible with the new Ninja series (Ninja & Ninja Ultra)Automatic file split for big files while recording
ATOMOS Sumo19 SESKU: ATOMSUMSE1
Unlock the true potential of your RAW cinema camera with the Sumo19 SE. Preserve your sensor’s pristine pixels in ProRes RAW at up to 5.7kp30, 4kp120 DCI/UHD and 2kp240 DCI/HD. CDNG supports up to 4kp30 DCI. ATOMOS Sumo19 is compatible with Sony FS series, Canon C300MKII/C500 or Panasonic EVA-1/Varicam LT. Record up to 4kp30 in CDNG.
HDR in the field and in the studio
HDR really comes to life on the Sumo19 SE. It’s 19” 1920 x 1080 LCD panel with 10-bit processing takes the RAW/Log/PQ/HLG output from cameras or games consoles and precisely maps to display 10+ stops of dynamic range in real time. Use as a director or client monitor in the field, or an affordable HDR studio monitor.
10-bit ProRes/DNxHR up to 4Kp60
Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in ProRes or DNxHR codecs at 4Kp60 or 2Kp240, depending on the camera’s capability. The depth and quality of the image is preserved with data rates of up to 1.8Gbs, 220MB/s.
Live quad channel HD swithcing and recording
Live switch four 1080p channels and record each as separate ISOs. Switch between feeds intuitively on-screen with hard cuts. Save space by replacing several boxes in your rack with a single Sumo19.
Two stereo balanced XLR inputs with 48V
Use full size XLR connections with 48V Phantom power to connect two external microphones with balanced analogue audio recording and monitoring. The Sumo19 has dedicated meters, gain controls and adjustments for frame delay on each channel. Mic or line level audio can be seamlessly synchronized with embedded audio from HDMI and SDI sources.
Quad SDI & HDMI 2.0 In/Out
Seamlessly connect any SDI or HDMI device for monitoring and recording. Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G/Quadlink & Dual link 12G SDI in almost any combination and eliminate the need for specialist converters.
Features
19“1920x10801200nit Display4K 12 bit Raw RecordingHD 240p RecordingSwitch, mix and record up to 4 HD SignalsAtomHDRContinous PowerAluminum Cage
In the box
1x Sumo 19 SE Unit1x Master Caddy II1x BattWing mounting bracket4x Screws2x Desktop Feet4x 1/4“ Mounting Screws1x AC power supply
ATOMOS Shogun ClassicSKU: ATOMSHG701
The versatile, 7-inch workhorse that enables you to monitor, record, and switch all in the one device. It’s the perfect tool for live production, multi-camera shoots, and in-the-field event coverage. Designed for professionals that push boundaries with the quality of their videos, this 7-inch monitor-recorder-switcher enhances the image captured by any HDMI or SDI camera to new levels.With 1,000,000:1 contrast ratio and peak brightness of 3000nits, ATOMOS Shogun Classic is the ultimate all-rounder production tool. Shogun Classic gives you the high production values of 4K HDR, and complete control of every aspect of your production, on-set and in post. Meticulously monitor every pixel of SDR or HDR as it’s captured and view it in glorious 10-bit HDR.
FeaturesIntuitive touch screen operationInstant playback & reviewShot taggingBalanced audioHigh speed connectionsQuad SDI & HDMI 2.0 In/Out7.2“ Screen SizeContrast Ratio 1.000.000:1High Bright 3000nitsResolution 1920x1280105% DCI:P3 Color GamutD65 White Point360 Zones Backlight Control10 bit PrecisionFocus Peaking/OutlineExposure LOG/Zebra/False/Blue screen3D LUTs .cube supportZoom 2:1/1:1 PANCalibration Auto Calibration with X-riteScopes WFM/RGB/Vector12 Gb/s HDMI/SDI500MB/s Record Write Sata III SSD120mins Record on 2TB SSD2TB Playback Read Sata III SSD
In the box1x Shogun 7 unit1x Master Caddy II1x 12V-3A AC power supply1x Carry Case Quick Start guide
ATOMOS Shinobi II SKU: ATOMSHB003Shinobi II has been redesigned with a new, slimline case and a 50% brighter HDR screen, yet it still manages to pack in all of Atomos' renowned screen processing technology and professional monitoring tools, plus exciting new hardware features like camera control. Take control of Canon, Panasonic or Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to Serial cable. More vendors will be supported with future firmware releases. Due to its low power consumption and efficient hardware, Shinobi II will run all day on a single battery charge. Expose your shots accurately using our advanced exposure tools like false color, zebras, histograms, waveforms and vectorscopes. A multi-tool Analysis View gives you all the essential info at a glance. There’s even a selfie Mirror Mode for vloggers. ATOMOS Shinobi II is the perfect accessory to improve any photo or video production.Features
Much slimmer body and low-profile design – weighs just 210gms50% brighter – 1500nit HDR, 5-inch, high-resolution touchscreenCamera control via USB-C for Canon, Panasonic and Sony cameras, plus ZCAM cameras via optional USB-C to Serial cableUse the Camera Status indicators to check the camera’s internal record settings, battery status & remaining record timeNew AtomOS 11 user interface has a more modern look, more responsive operation and easy access to all the most-used monitoring toolsPowered by NP-F style batteries, or via USB-C PD (10W input). Also charge/power the camera via USB-C PD (13W output)Included HDMI & USB-C locking adapter allows you to use Atomos' new line of locking cables for rock-solid connectivityUnique Analysis Mode can deploy the waveform, histogram & vectorscope tools simultaneouslyFrame Guides and 9 Grid help get perfect framing and compositionLow power consumption - Shinobi II can run all day off a single battery charge.
MID49 Universal Speedball Monitor Mount
SKU: M49-SPD-ARM-0
Universal Speedball Monitor Mount is an articulating arm with combination 1/4-20 and 3/8-16 mounting screws on each end and one double-ball clamp. Each ball end contains both mounting thread standards. Push the 3/8-16 outer screw down to reveal the hidden 1/4-20. Install the ball with the cam-lever in the down position to finger-tight, then lift the lever to add extra locking force to the assembly.The extra force of the cam-lever design allows the arm to lock in place without the use of messy rubber pads. The "Chip Clip" clamp design allows for easy, annoyance-free installation, and the ratcheting thumbscrew can be pulled out and repositioned. Universal Speedball components are compatible with any other brand of 1 inch (25mm) ball attachment like Ultralight Control Systems, Wooden Camera, etc.Weight: 201gDimensions (WxLxH): 63 x 25 x 152mm
MID49 Power Distribution Box DB-9 (Blackmagic PYXIS, V-Mount)Power Distribution Box DB-9 (Blackmagic PYXIS, V-Mount) attaches directly to the camera body using the rear two 1/4-20 threaded holes and provides intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable REMOTE USB-C cable enables remote start/stop capability using 3pin Fischer devices.Also available in a hinged 15mm LW Rod Mount version for attaching further away from the camera.Hot-swap between on-board battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-4 will switch to an onboard battery.The mount design allows a Sony BP-U35 battery to be installed in the camera to function as an emergency backup. To swap the internal battery, swing the DB-9 up and release the battery.The DB-9 can also be separated from its camera mount, revealing a 15mm rod clamp with an internal friction sleeve.With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the C80 uses approximately 1.8A at 14V so when using a 10A capable battery, the remaining 8.2A is allocated for accessory use. If an accessory configuration exceeds the 8.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate, showing the error, and once the configuration has been adjusted to lower than 8.2A, the RESET button can be pressed, and power will be re-enabled to accessory outputs.In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.User changeable Gold Mount Plates are available as wellINPUTS BATT V-Mount plateDC IN 4pin XLR (11-17V)OUTPUTS2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)
MID49 EVF/LCD Extension Cable (Sony Burano, FX9, FX6)EVF/LCD Extension Cable (Sony Burano, FX9, FX6) is an extension for Sony's 40 pin monitors system found on recent cameras including Burano, FX9, FX6, FS7, FS7mkII, FS5, FS5mkII.

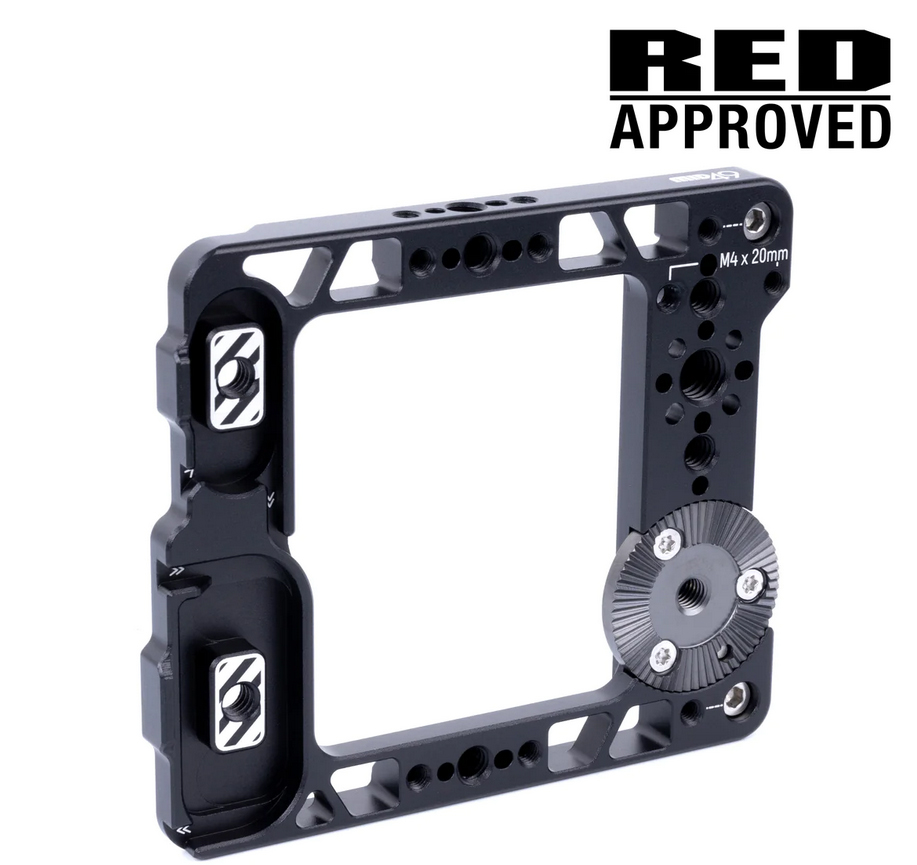

MID49 Breakout Side Plate for RED V-Raptor
SKU: M49-BOB-SPL-RVR
Breakout Side Plate for RED V-Raptor attaches to the side of the RED V-Raptor and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Two offset 1/4-20 holes matching RED's spacing allow certain 3rd party products to be attached like GDU Atlas Side Handle (Raptor, Right). Rear 1/4-20's provide ideal mounting locations for Audio Breakout AB-1 (V-Raptor) and EXT Breakout EB-1. Recessed cable loops in the side plate allow for clean cable management.
Weight: 102gDimensions: 137 x 108 x 12mm
MID49 Audio Breakout AB-4
SKU: M49-BOB-AB4
Audio Breakout AB-4 (Canon C70) is a passive adapter that converts the camera's two mini XLRs to two standard, full-size XLRs.
Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates.
Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-4 to attach using a 3/8-16 screw with ARRI locating pins.
30.5cm cable length with custom low profile right angle mini XLR connector.
Product Weight: 56gProduct Dimensions (WxLxH): 35 x 362 x 28mm
MID49 Base Kit for Blackmagic Cinema Camera 6K
SKU: M49-KTB-BMD-P6K
Base Kit for Blackmagic Cinema Camera 6K (Full Frame, Pocket Pro, Pocket G2) is an accessory kit that includesUpper Cage for Blackmagic Cinema Camera 6K (Full Frame, Pocket Pro, Pocket G2)
Form fitting cage with 1/4-20, 3/8-16, and M4x20mm threaded holes in several places along with shoe mounts and 15mm rod clamps. ARCA Swiss dovetail slot on top accepts included ARCA Top Handle and Top Plate. Two included 15mm accessory rods provide additional mounting for optional AB-6 XLR adapter. Lower ARCA Swiss dovetail attaches to included baseplate and lens support adapter attaches to 3rd party lens adapters like Metabones, etc. Installation guide video is here.Baseline 15mm LW (Core) is an quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.Baseline ARRI Dovetail is the lower ARRI mounting plate that interfaces with the Baseline Core.ARCA Top Handle is a sliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.
€695.00*
gross: €827.05
Pay with:
We ship with:
Fast shipping
Buy VAT exempt with your valid VAT EU ID
B2B Shop - Only for commercial / professional customers
