Accsoon Cineview SE

Accsoon

€415.00*

gross: €493.85

Prices excl. VAT plus shipping costs

Available, delivery time: 1-3 days

Product number: SW28279

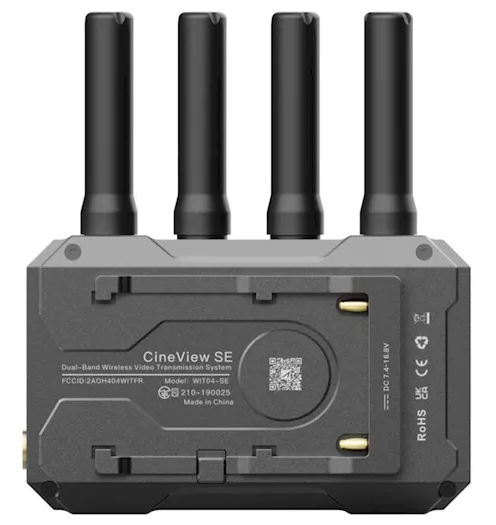

Accsoon Cineview SE

The CineView SE is a wireless video transmitter and receiver, with new best in class latency at under 50ms. The CineView SE can transmit a video source via SDI & HDMI up to 1080p 60fps inputs/outputs. It transmits the signal on 2.4GHz+5GHz Dual- Band frequencies simultaneously for increased signal stability and sends video at an impressive maximum range of 1200ft line-of-sight.

Transmitter data

Video Input: SDI/HDMI
SDI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
Level: A/B 1080p 23.98/24/25/29.97/30/50/59.94/60fps
HDMI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
DC Port: 5.5mm x 2.1mm center positive
DC Voltage: 7.4~16.8V
Audio: 44.1KHz/48KHz 16bit/24bit PCM
Latency: <0.05s (Camera latency not included)
OLED Display: 1.3inch
Transmission Power: 17~20dBm
Transmission Range: 1200ft (No obstacles, no interference)
Power Consumption: 4.5Watt (Typical)
Operating Environment Temperature: -10°C~40°C℃
Dimensions: 105mm x 66mm x 32mm (Antennas not included)
Weight: 210g (Antennas not included)

Receiver data

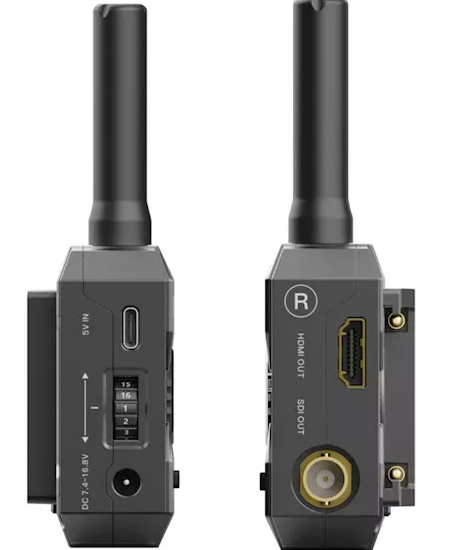

Video Output: SDI/HDMI
SDI Output Format: 1080p 24/25/30/50/60fps Level A
HDMI Output Format: 1080p 24/25/30/50/60fps
DC Port: 5.5mm x 2.1mm center positive
DC Voltage: 7.4~16.8V
OLED Display: 1.3inch
Power Consumption: 3.5Watt (Typical)
Operating Environment Temperature: -10°C~40°C℃
Dimensions: 105mm x 66mm x 32mm (Antennas not included)
Weight: 210g (Antennas not included)
