AES POWER BOX
AES POWER BOX

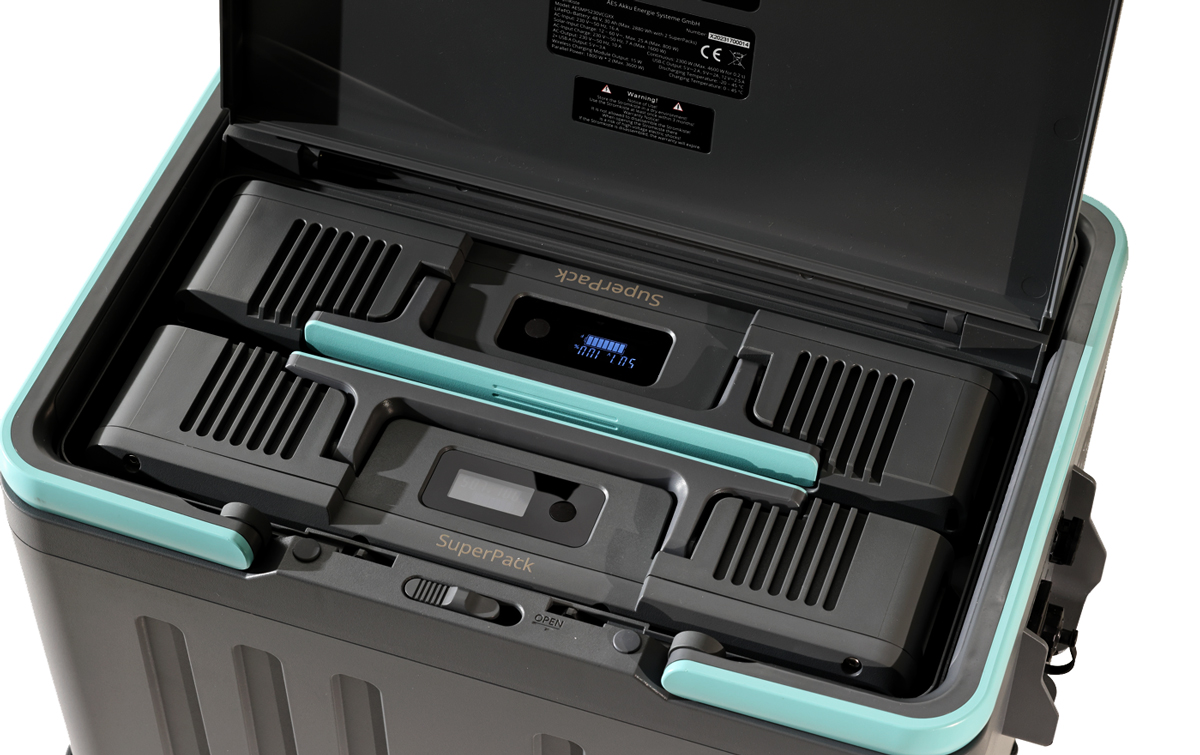

Unique mobile power station that adapts to all your needs. With the energy of one or two AES SuperPacks with 1440 Wh each, the AES power box has a maximum capacity of 2880 Wh. The only modular power station based on our proven LiFePO4 technology that is as flexible as the ways in which it can be used. Packed with the energy of up to 2 AES SuperPacks, you can not only power your campsite, your boat or your power tools, but also use it as energy storage for your balcony power stations or your solar panels. Easily transportable thanks to its modularity, the AES power box even serves as a power source for your electric vehicle or as a safety supply to bridge minor power failures (switching less than 0.03 seconds) at events and/or on construction sites. By connecting two fully equipped AES power boxes in parallel, you can increase the capacity from 2.8 kWh to 5.6 kWh. You can vary the power duration of your AES power box individually by flexibly equipping it with AES SuperPacks - depending on how many AES SuperPacks you have available.
Key features
- Expandable capacity
- Reliable and safe technology
- Rechargeable with solar panels
- LiFePO4 technology, therefore durable and extremely safe
- Emergency power supply
- > 3000 charging cycles with 80% residual capacity
- Smart BMS with CAN bus communication
- 1x rollboard with 4 extra stable, 360° rotating, smooth-running professional castors with parking brake. (The rollboard can also be permanently mounted on a surface, e.g. as a holder/anti-slip device in the vehicle. The wheels are removable).
Technical features
- Capacity: 60 Ah (2x 30 Ah)
- 2 AES SuperPacks
- Energy: 1440 Wh with one AES SuperPack / 2880 Wh with two AES SuperPacks
- USB-C output: 30 W (max.)
- USB-A output: 15 W (max.)
- Inductive charging: 15 W
- Solar charging input: 12-60 V, max. 25 A
- Net weight: 14 kg
- Fully equipped weight: 41 kg (incl. two AES SuperPacks (12 kg) and the AES Mobility Board (3 kg))
- Dimensions: 510.5 x 349 x 318 mm

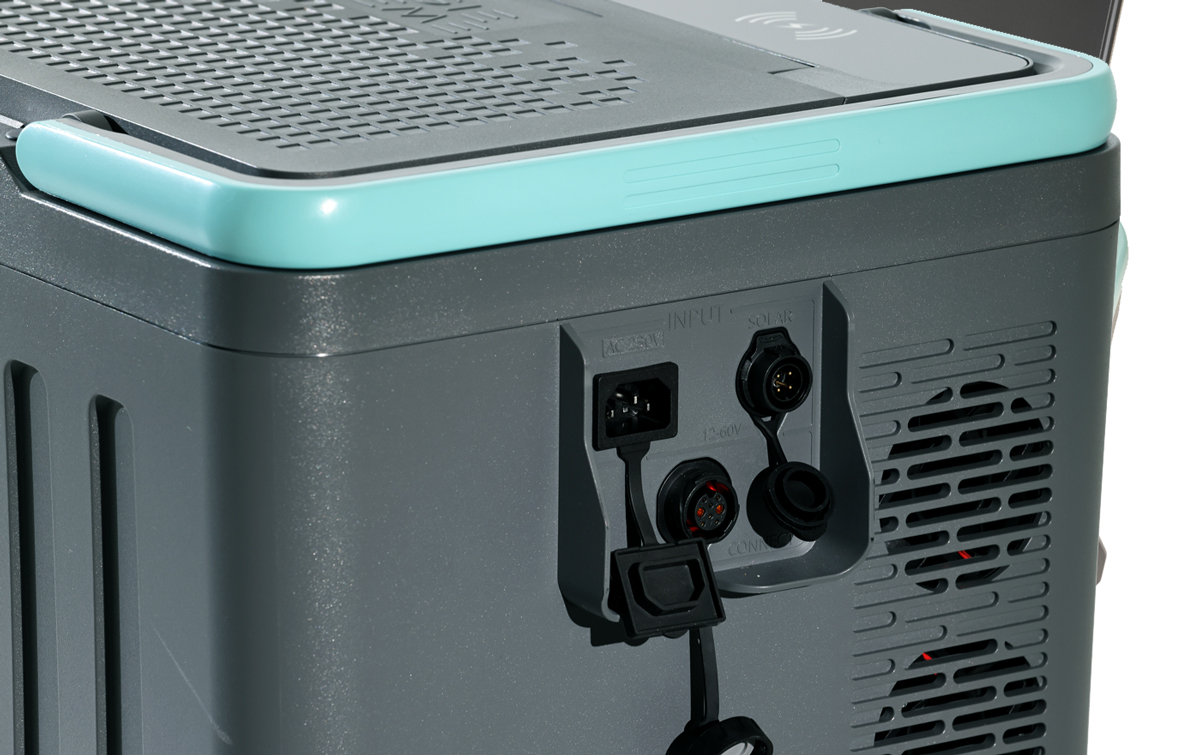

Input
- AC charging input power: 800 W with one AES SuperPack / 1600 W with two AES SuperPacks
- AC charging input voltage: 230 V, 10 A, 50/60 Hz
Output power
- One: AES power box: 2.3 k
- Two: AES power boxes: 3.6 kW in parallel operation
