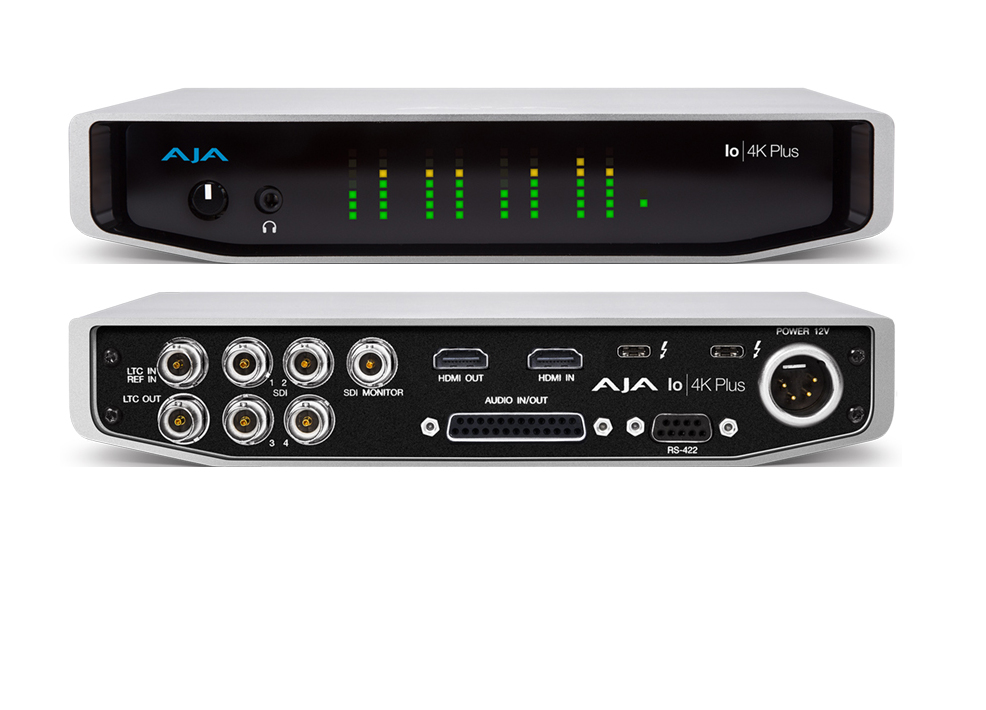

AJA Io 4K Plus Video I/O for Thunderbolt 3

AJA Io 4K Plus

Io 4K Plus is the cutting edge of capture and output hardware available over Thunderbolt 3, offering a full set of professional video and audio connectivity with support for the latest 4K/UltraHD devices, High Frame Rate (HFR), High Dynamic Range (HDR) and deep color workflows. The power of Thunderbolt 3 enables AJA Io 4K Plus to handle a wide range of formats from SD to HD, UltraHD and full 4K with frame rates up to 60p over both 12G-SDI and HDMI 2.0 with single cable simplicity, plus HDR support over both HDMI and SDI for emerging HDR workflows.

Features

• 4K/UltraHD/2K/HD/SD 10-bit I/O up to 50/60p
• 4x bidirectional 12G-SDI BNC with 16-channel embedded audio
• 4K/UltraHD HDMI 2.0 I/O with 8-channel embedded audio
• Two Thunderbolt 3 ports with loop through
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• 12-bit and 10-bit LUT support (.cube)
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
• PQ, HLG, HDR10, HDR 10+ and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Analog Audio flexibility with a choice of 8-channel In or 8-channel Out or 4-channel In and 4-channel out
• Includes support for the Apple M1 chip
• Compatible with OBS Studio, vMix, Telestream Wirecast, Adobe Creative Suite, Apple Final Cut Pro, Avid Media Composer, and much more
• XLR 12V power for battery or AC use
• Headphone jack and level control for mobile and live environments
• RS-422 VTR control, Reference, LTC Input
