Aputure INFINIBAR PB3 RGBWW LED panel

€299.00*

gross: €355.81

Free shipping

Available, delivery time: 2-5 days

Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.

Product number: SW26482

Manufacturer: Aputure

EAN: 6971842184538

Manufacturer product number: APS0300A1H

Delivery time: 2-5 days

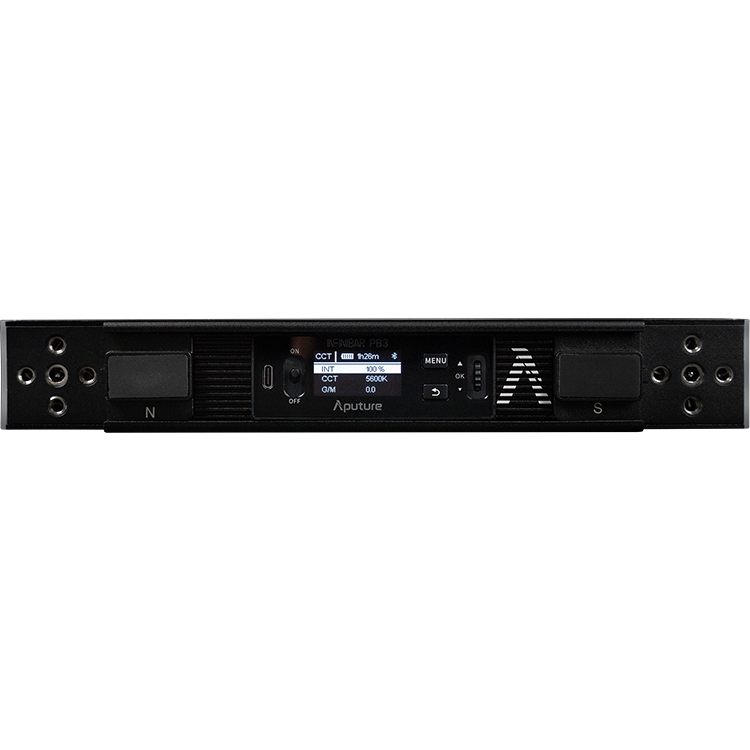

Aputure INFINIBAR PB3

The INFINIBAR Pixel Bar is Aputure’s first RGBWW full-color LED pixel bar. Featuring 24 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB3 is a 1-foot (30cm) pixel bar that excels in building and creating unique, colorful designs that bring scenes to life in new and exciting ways.

The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB3’s 24 RGB pixels.

Main Features

1-Foot (30cm) 6.5W RGBWW Full Color LED Pixel Bar
24 Individual Pixels (Lighting Zones)
Infinite Blending Design to Reduce Visible Gaps When Connecting Multiple Lights
10 Splicing Connectors: Straight, Triangle Flat, Triangle 3D, Hexagon
Flat, Hexagon 3D, 3-Way Flat, 4-Way Flat, 6-Way Flat, Square Flat, Square 3D

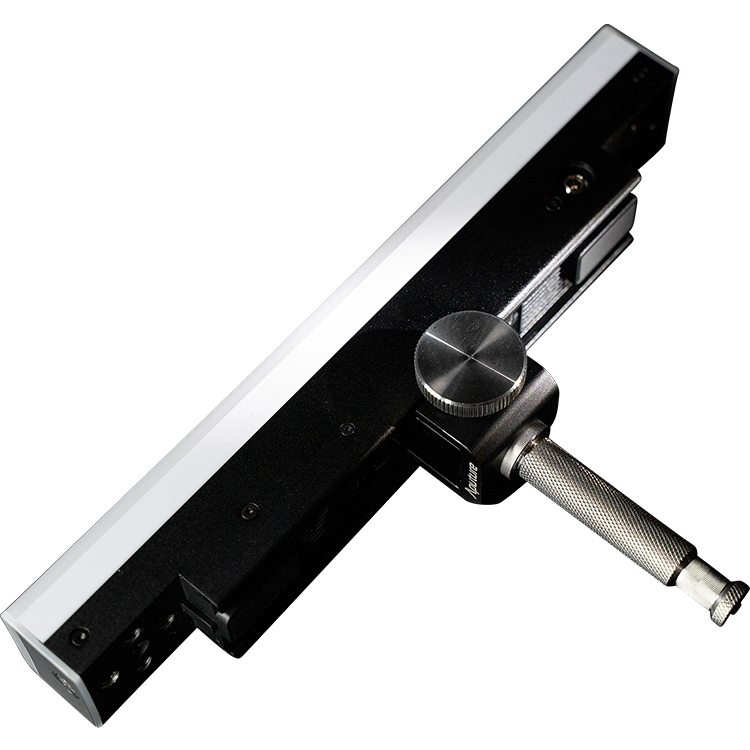

Share AC Power Over Multiple INFINIBARs w/ Splicing Connectors Mounting: INFINIBAR Clamp (Baby Pin) & Neodymium Magnets, 1/4-20in Screw Mount
Frosted Diffusion Layer for Smoother Light and Reduced Glare
Approx. 120 Min Battery Life With Built-In Battery (14.8Wh)
Smart Battery Life Mode: Preset Timer at 2/4/6/8 Hour Increments 0-100% Brightness Control at 0.1% Increments
Fully Tunable CCT from 2,000K-10,000K + G/M Adjustment
CRI: ≥96, TLCI: ≥98, TM-30 Rf (Avg.) = 94, TM-30 Rg (Avg.) = 103, SSI(D56) ≥74, SSI(Tungsten) ≥85
≥90% of Colors within Rec.2020 Color Space
Advanced HSI with White Point CCT Control
Industry-standard xy (CIE 1931), RGB, 300+ Gel Presets
Multiple Control Methods: Sidus Link® App, DMX/RDM via USB-C, LumenRadio CRMX
23 Built-In DMX Profiles: Supports DMX Loss Behavior
9 Built-in System FX: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
7 Built-In Pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
Supports SidusPro® FX: Including Manual FX, System FX, Picker FX, Magic Program, and Music FX
Save up to 10 Custom FX and 10 Music FX
Frequency Selection to Reduce Flicker
Included Carrying Case
Optional Light Control Accessories: 1) Softbox. 2) 45º Slip-On Light Control Grid

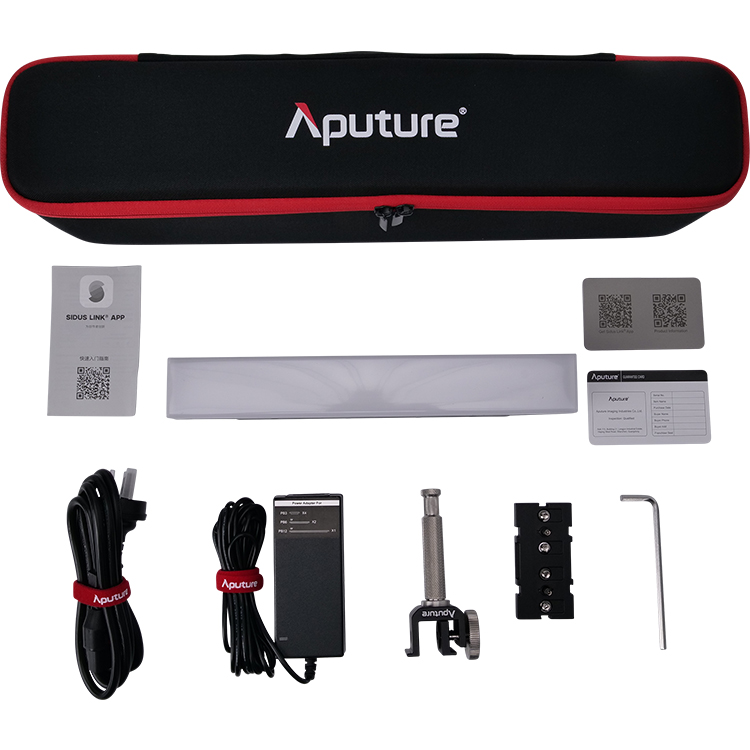

What’s in the Box

1x INFINIBAR PB3
1x 48W DC Power Adapter (3m)
1x AC Locking Power Cable (1.5m)
1x INFINIBAR Clamp to Baby Pin Adapter
1x INFINIBAR Straight Connector
1x 5mm Hex Wrench
1x Carrying Case
