AVtec XFS070SDI 7” FullHD SDI Monitor

AVtec XFS070SDI

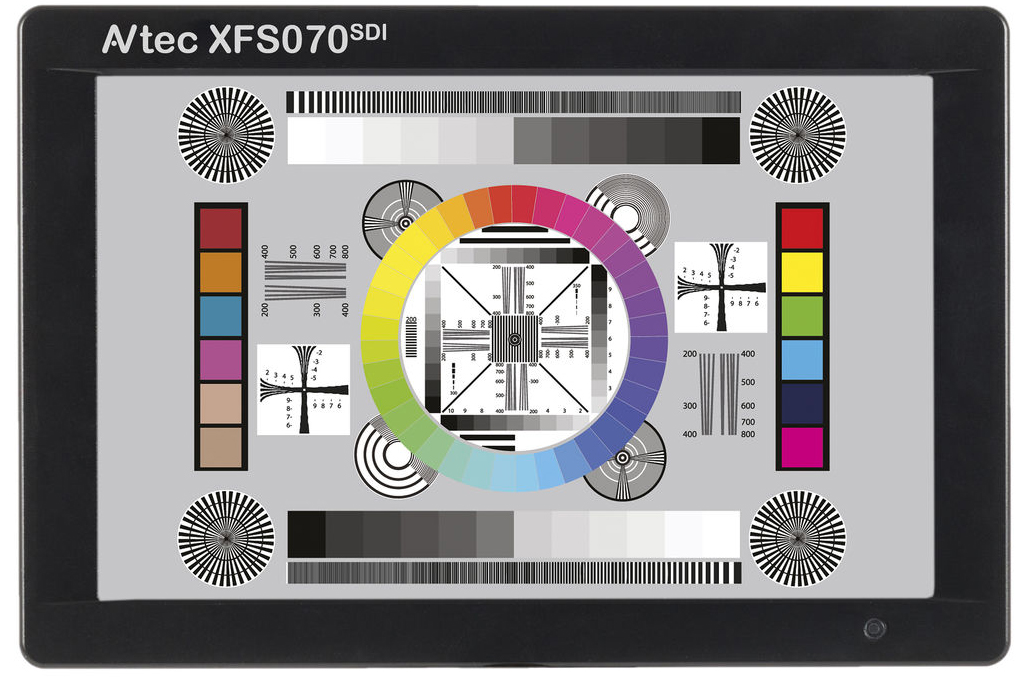

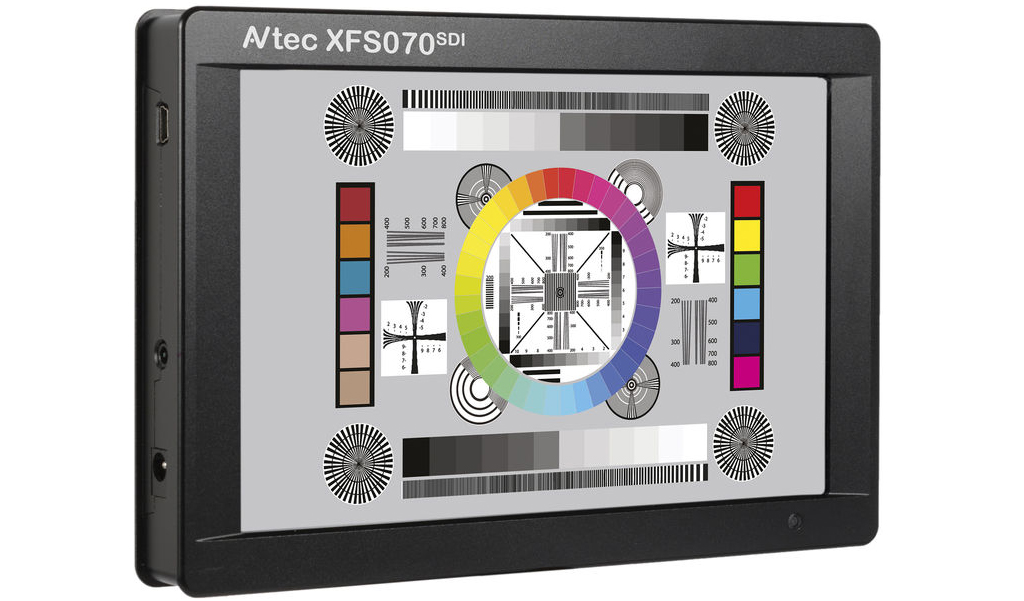

Supporting both SDI and HDMI signals (input and output) makes it a very versatile unit when you need a dependable image reference. The AVtec XFS070SDI has a wide viewing angle IPS LED screen featuring 16.7M colors. It’s conveniently sized for easy transportation and shooting in various and difficult situations. This monitor only weighs 350 grams and can be mounted on your camera via the hot shoe attachment on the supplied ball head. The unit can be powered by both a battery (NP-F, BP-U & LP-E6) and DC adapter.

Connect it directly to any DSLR or HD/4K video camera through HDMI and monitor your shots in 1920x1080 resolution. With brightness levels of 450 cd/m2, a 1200:1 contrast ratio and 160° vertical and horizontal viewing angles, it’s a great tool for professional videographers.

Professional Functions

Analyze the perfect exposure, color settings and other characteristics with features like Histogram, False Color, Exposure (Zebras), Focus Assist, Pixel-to-Pixel, and altogether over a dozen useful features. Assign often-used menu functions to one of the function buttons for quick and easy access.

The focus and exposure-assist features mentioned above are only some of the image control features available on the monitor. The entire set of professional functions consists of the following; Histogram, False Colors, Exposure (Zebras), Focus Assist, Center Marker, Safe Frames, Check Field, Camera Mode, Aspect Ratio, Image Flip, Pixel-to-Pixel, Image Freeze, Image zoom, Anamorphic, Peaking Color, Embedded audio, Nine grid, Ratio marker and Marker color.

The monitor also features an on-screen adjust brightness, contrast, tint, saturation etc., to fine-tune your display. The default aspect ratio is 16:9 but you can easily switch to 4:3, Panorama or Automatic in the menu.

Many Accessories Included!

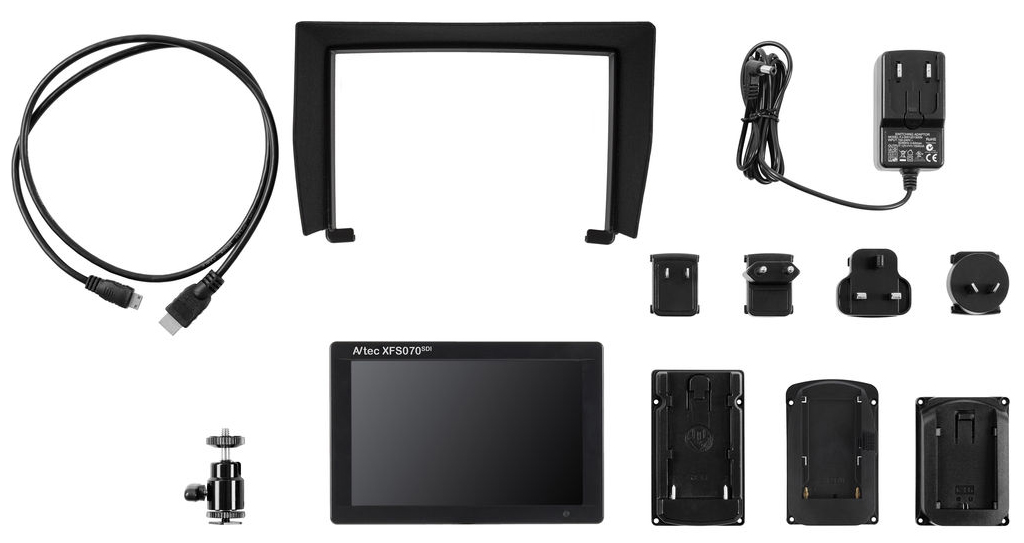

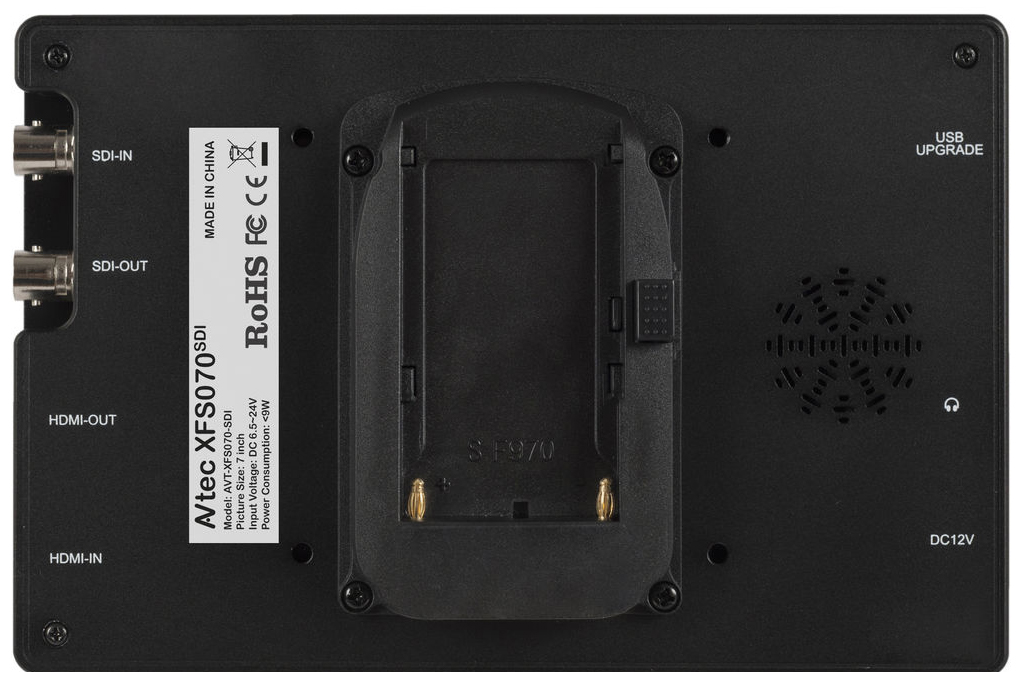

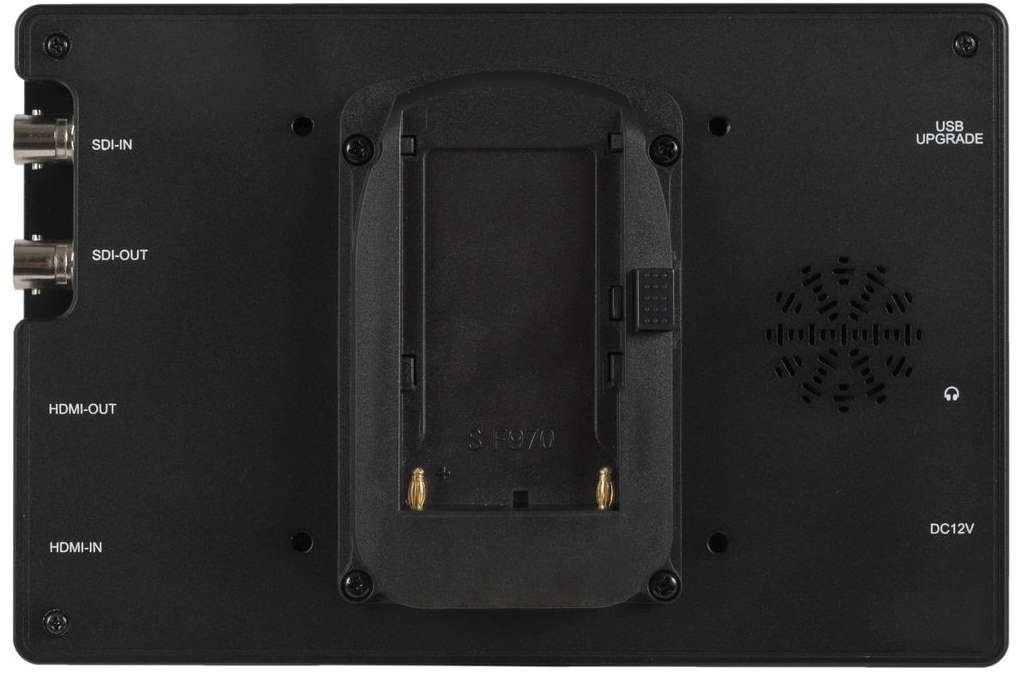

The monitor comes with three interchangeable battery brackets for Canon LP-E6, Sony NP-F & BP-U batteries. The brackets are connected to the monitor with 4 screws so they are safely secured for any kind of circumstances.

In case you prefer using an AC/DC adapter, the monitor comes with a power adapter supplied with 4 interchangeable plugs for international use in the US, UK, Europe, and Australia / New Zealand.

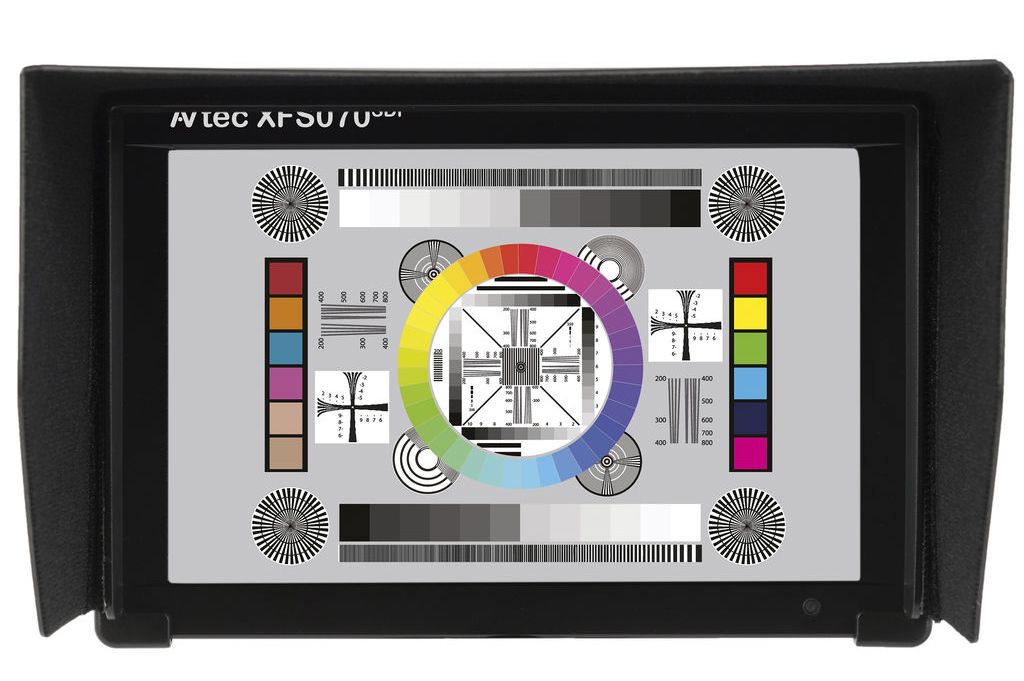

The monitor has a foldable sun hood to protect against glare from any bothersome light source, including sunlight. It comes together with the sun hood attachment that simply clips on the monitor housing.

The XFS070SDI incorporates a 1/4"-20 threaded mounting hole and includes a ball head accessory that allows you to mount the monitor directly to your camera's hot/cold shoe. Also included is a HDMI cable suitable for using the AVtec XFS070SDI with a wide range of camcorders and cameras.

Features

7” IPS LCD Panel
1920x1080 FullHD screen
Supports 4K UHD HDMI input and output
Built-in speaker & integrated jack port for headphones
Firmware upgradable through USB
Supports a variety of battery types (F970/ LP-E6/ U60)
AC/DC Adapter with EU, UK, US & AU plugs included
Detachable sun hood attachment & foldable sun hood
Two assignable function buttons
Focus Assist, Center Marker, Safe Frames, Check Field
Image Freeze, Image Flip & Pixel-to-Pixel
Histogram, Exposure (Zebras) & False Colors
Analog stereo L/R, Embedded Audio Display
Image Zoom function, Image Nine Grid and Anamorphic Mode
Brightness, Contrast, Tint, Saturation and Color Temperature Adjustment

Technical data

Panel Size: 7.0 inch
Panel Type: IPS LCD
Resolution: 1920x1080
Backlight: LED
Dot Pitch: 0.07875 (H) x 0.07875 (W) mm
Aspect Ratio: 16:9
Brightness: 450cd/m2
Contrast Ratio: 1200:1
Viewing Angle: 80°/80°(Left/Right) 80°/80°(Up/Down)
Input Signal: SDI, HDMI
Output Signal: SDI, HDMI
HDMI Support Format : 480i /480p /576i /576p 720p (60/59.94/50/30/29/25/24/23.98) 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25 / 24/24fps /23.98/23.98fps) 4K UHD 3840x2160p - (30/29.97/25/24/23.98 Hz) 4096x2160p (24 Hz)
Audio: Stereo 3.5mm headphone
Input Voltage: DC:7.4~24V
Power Consumption: ≦9W
Unit Size (LxWxH): 180 x 120 x 20.5 mm / 7.09 x 4.72 x 0.81 inch
Unit Weight: 350 g / 0.77 lbs (incl. F970 bracket)
Installation Method: 1/4 inch bracket screw hole, can be easily connected to the hot shoe mount, tripod fixed installation
Working Temperature : -20°C～55°C / -4°F～131°F
Storage Temperature: -30°C～65°C / -22°F～149°F
