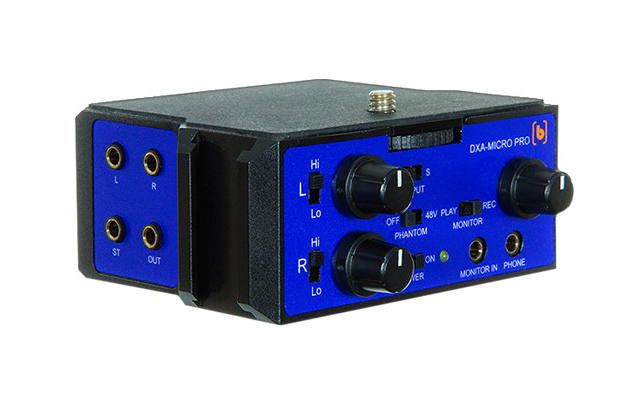

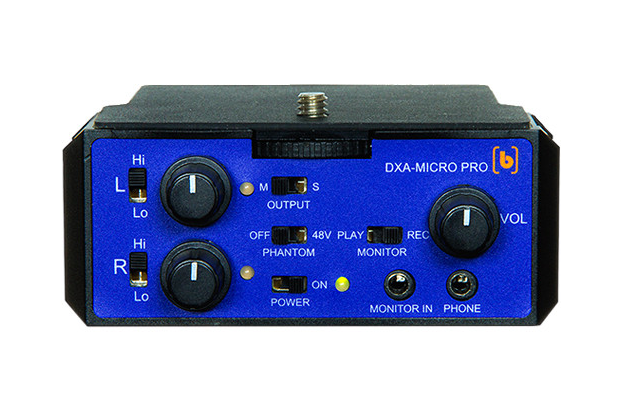

Beachtek DXA-MICRO PRO Audio-Adapter

Beachtek DXA-ALEXA Low Noise Preamplifier for ARRI ALEXA MINI Transform your ALEXA Mini to a fully featured mini doc camera with on-board audio capabilities with the Beachtek DXA-ALEXA. The carbon fiber chassis matches the look and feel of the camera and with a weight of under 1 lb, the slim line design will easily fit on your rig and not bog you down. Constructed of top quality components, including weather resistant top panel switches for outstanding reliability and durability. Also ideal for use with any other mini cinema cameras such as the RED DSMC2 models. Cinematic Sound The ultra low-noise preamplifiers provide exceptional performance with over 100dB in dynamic range. The two XLR inputs are transformer balanced for galvanic isolation and high common mode rejection. The DXA-ALEXA also provides all the features you need including dual gain controls, phantom power, level indicators and headphone monitoring. The tri-color LED level indicators make it a snap in setting the proper recording levels. The output is a balanced 5-pin XLR that connects directly to the 5-pin Lemo input on the camera via an optional cable. There is also an auxiliary mic level output via an unbalanced stereo mini-jack so it can be connected to a variety of other cameras and recording gear. Power is from your rig via the 2 pin Lemo connector. Flexible Mounting Options With the included bracket, you can mount the DXA-ALEXA in several ways to the camera cage.  When using the ARRI ALEXA Mini camera cage, you can mount it under the handle, side bracket or anywhere with an optional V-Lock. The bracket has captive thumb screws to easily add or remove the device from the camera. The base of the unit has three threaded 1/4″/20 holes to also allow it to be mounted to the rails via a third party rail bracket. Technical specs Frequency Response20Hz to 20kHz (+/- 1.0dB)GainLine Out Lo Gain: 40dB, Hi Gain: 60dBMic Out Lo Gain: 10dB, Hi Gain: 30dBMaximum Input LevelLo Gain: -15dBuHigh Gain: -35dBuOutput Clipping LevelLine Output: +25dBuMic Output: -5dBuDynamic Range100dBTHD+NLo Gain: 0.012% (+4dBu output, 1kHz)Hi Gain: 0.06% (+4dBu output, 1kHz)Channel SeparationLo Gain: 85dB (+4dBu output, 1kHz)Hi Gain: 80dB (+4dBu output, 1kHz)Metering (Tri-Color LED)Green -40dBu to 16dBuYellow -16dBu to +4dBuRed Over +4dBuPoweringExternal DC Input Jack (12-16V)Pin 1 = (-), Pin 2 = (+)Dimensions: 126 mm x 96 mm x 40 mmWeight: 374g

BEACHTEK DXA-RED Compact, robust and easy to install Dual XLR adapter including low noise amplifier for RED DSMC2 cameras. Offers features to record audio in cinematic quality. With the V-CLIK Quic Release Plate, the device can be quickly and easily mounted onto the camera.  Can be used with the ARRI ALEXA Mini, ALEXA Mini LF or other DSLR cameras with a microphone connector, with the following cables: ALEXA Mini: BT-RED2ALX (3,5mm TRS zu 5-pin LEMO)ALEXA Mini LF: BT-RED2LF (5-pin XLR zu 6-pin LEMO)DSLR: SC35 (3,5mm TRS zu 3,5mm TRS) is a included item The DXA-RED is easy to use and offers the best audio quality. Features Phantom powerLED IndicatorLow noise amplifier2x XLR Inputs2-pin LEMO or USB electricityQuick-Release bracketsmall and lightweightMain and Aux 3,5mm OutputsDual amplificationnumerous mounting options Technical data Frequency: 20Hz bis 20kHz (+/-0,5dB)Amplifier - Main OUT: Lo Gain: 40dB; Hi amplification: 60dBAmplifier - AUX OUT: Lo Gain: 20dB, Hi amplification: 40dBDynamic range: 94dBTHD+N: Lo Gain: 0,001% (+4dBu Output, 1kHz); Hi Gain: 0,09% (+4dBu Output, 1kHz)Channel Seperation: Lo Gain: 80dB (+4dBu Output, 1kHz), Hi Gain: 68dB (+4dBu Output, 1kHz)Level indicator: green: -40dBu to -4dBu; red: over -4dBuMaximum input level: Lo Gain: -20dBu; Hi Gain: -40dBuOutput Clipping: Main Out: +20dBu; Aux Out: 0dBuElectricity: 2-Pin 0B LEMO Connector (5-18V, 120mA), Pin 1 = (-), Pin 2 = (+); Micro USB Connector (5V, 800mA)Dimensions: 83,6mm x 75mm x 28mmWeight: 257g In the box 1x Preamplifier1x BT-PWR Cable (2-Pin LEMO zu D-TAP)1x USB Cable1x SC35 Output Cable (TRS 3,5mm zu TRS 3,5mm)1x V-CLIK Quick-Release Bracket1x Foot, Bolt and Allen key 1x Reference card

BEACHTEK DXA-PRE The new standard for recording audio on RED, ALEXA and other cinema cameras Super compact, super tough and easily mountable Dual XLR Adapter with low-noise preamplifiers for cinema cameras. Simple, no fuss layout and features gives you everything you need to easily record cinema quality audio to your camera. Easy to read VU Meter makes setting the ideal recording levels a snap. Has both balanced and unbalanced outputs to connect to wide variety of cameras. Includes the V-CLIK quick release plate to quickly snap the unit on or off your camera. Nothing could be easier to use or give you better audio than the DXA-PRE. Can also be used with any cinema camera or DSLR camera with a mic jack. Features Phantom PowerDual GainTrim ControlsVersatile Mounting OptionsVU MeterLow-Noise PreamplifierMounting Shoes5-pin XLR OutputTiny and Light WeightTransformer Balanced Inputs2 x XLR InputsStereo Mini-Jack OutputBracketingQuick Release Mount In the box 1 x Beachtek DXA-PRE1 x SC35 output cable1 x V-Clik Quick Release mounting accessory1 x Brass Mounting Foot, Bolt + Allen wrench1 x Reference Card
