BirdDog Mini Compact NDI Encoder and Decoder
€450.00*
Available, delivery time: 1 day

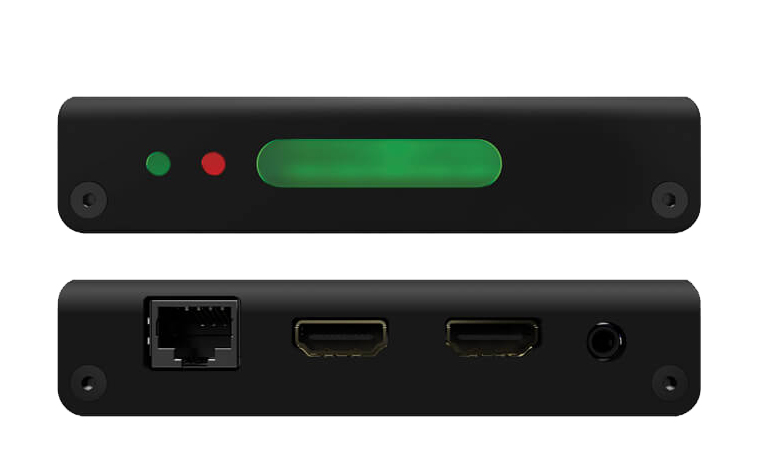

BirdDog Mini
Designed from the ground up around BirdDog’s custom NDI silicon chip, Mini is the ultimate NDI Encoder and Decoder. Attach BirdDog Mini to any camera via a HDMI connection and you can introduce that camera source into your NDI workflow. Mini also features a complete Tally system to eliminate the need for multiple boxes on your camera. Mini can also be used as an NDI Decoder making it perfect for Digital Signage and IMAG applications. Simply attach Mini to your HDMI television or HDMI monitor and send NDI sources to the Mini to play out onto the screen. Due the super intelligent design of the BirdDog custom NDI silicon chip the latency on Mini is insanely low; Just 16ms on encode and 16ms on decode. Mini is compatible with BirdDog Comms. Comms is a complete Audio Intercom solution that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.
Technical data
- (HD) 1080p 25, 29.97, 50, 59.94
- (HD) 1080i 50, 59.94
- (HD) 720p 50, 59.94
- 1x HDMI Standard Type A connector
- HDMI v1.4a, RGB or YCbCr
- 1x HDMI Standard Type A connector
- HDMI v1.4a, RGB or YCbCr
- 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
- 3.5mm Microphone headset input / output VIDEO
- Realtime, ultra-low latency, full-bitrate NDI (i-frame)
- Bicolour Tally (Red/Green)
- Multicolour status information
- Full status information on HDMI output (Selectable)
- 10/100/1000 Ethernet (RJ-45) with PoE (Power over Ethernet)
- Embedded web configuration panel for control and firmware updates
- Network settings
- Video settings
- Tally settings
- Audio and Comms settings
- 98x110x22mm
- 200g
- 100-240V, 50/60 Hz Universal Input
- 5-18V DC7W Max
- Power over Ethernet (PoE) 802.3af/at
Details of the manufacturer
- BirdDog Australia Pty Ltd
- 1 Sackville Street
- 3066 Collingwood – VIC, Australia
Details of the person responsible for putting the product on the European market
- New Media AV Bauer und Trummer GmbH
- Johannes Bauer
- Pirnaer Straße 20
- 90411 Nürnberg, Germany
+49 911 5399-60
