Blackmagic Design has a wide range of SMPTE-2110 IP video products, including converters, video monitors, audio monitors and even cameras! Plus they support Ultra HD using low cost 10G Ethernet! Most converter models are bidirectional, so they're fantastic to use on cameras when you need an extra program return! The rack mount models have an elegant design with a color LCD for monitoring, menus and diagnostics. All models conform to the SMPTE ST-2110 standard for IP video, including PTP clocks and even NMOS support so you can make connections using a video router panel. The Blackmagic 2110 IP Converter 3x3G model even includes a reference video output, timed to the 2110 PTP clock!

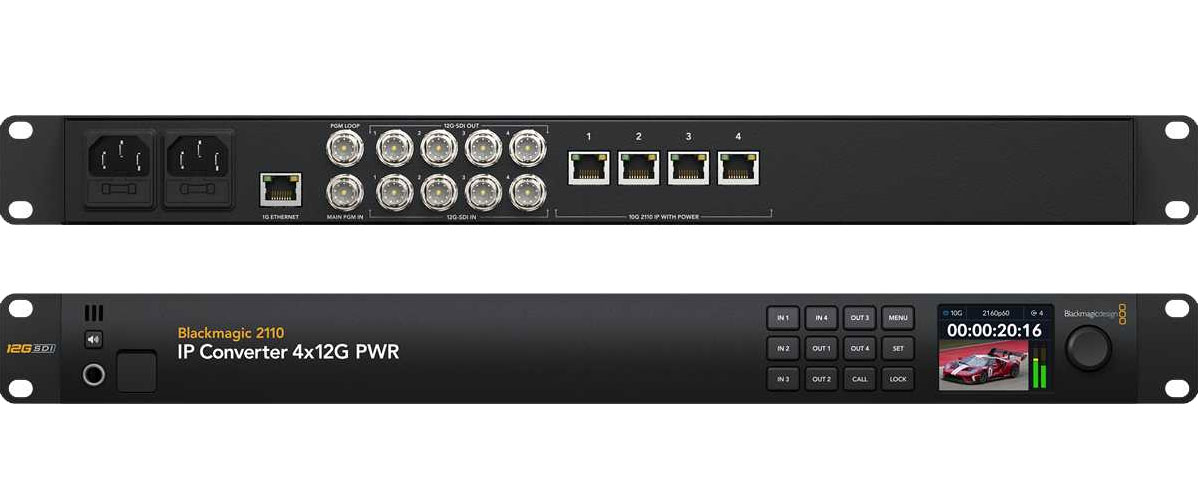

Blackmagic 2110 IP Converter 4x12G PWR lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment. It features 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections which can also provide power. Its 1RU design includes a control panel with LCD and supports HD and Ultra HD standards up to 2160p60.
Connections
- Total SDI Inputs: 5
- SDI Video Inputs: 4
- SDI Main Program Inputs: 1
- Total SDI Outputs: 5
- SDI Video Outputs: 4
- SDI Main Program Outputs: 1 Loop Out
- SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
- SMPTE ST-2110 IP Video Inputs: 4 x 10G Ethernet
- SMPTE ST-2110 IP Video Outputs: 4 x 10G Ethernet
- Analog Audio Outputs: 1 x 6.35 mm headphone socket
- SDI Audio Inputs: 16 Ch embedded audio on SDI input
- SDI Audio Outputs: 16 Ch embedded audio on SDI loop output
- SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
- SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
- Multi Rate Support: Auto detection of SD, HD, Ultra HD and 4K
- Reclocking: Yes
- Ethernet: 4 x 10Gb/s RJ‑45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters, 1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates
- Computer Interface: 1 x USB-C 3.0 for configuration and firmware updates
