Blackmagic 2110 IP Presentation Converter

Blackmagic 2110 IP Presentation Converter

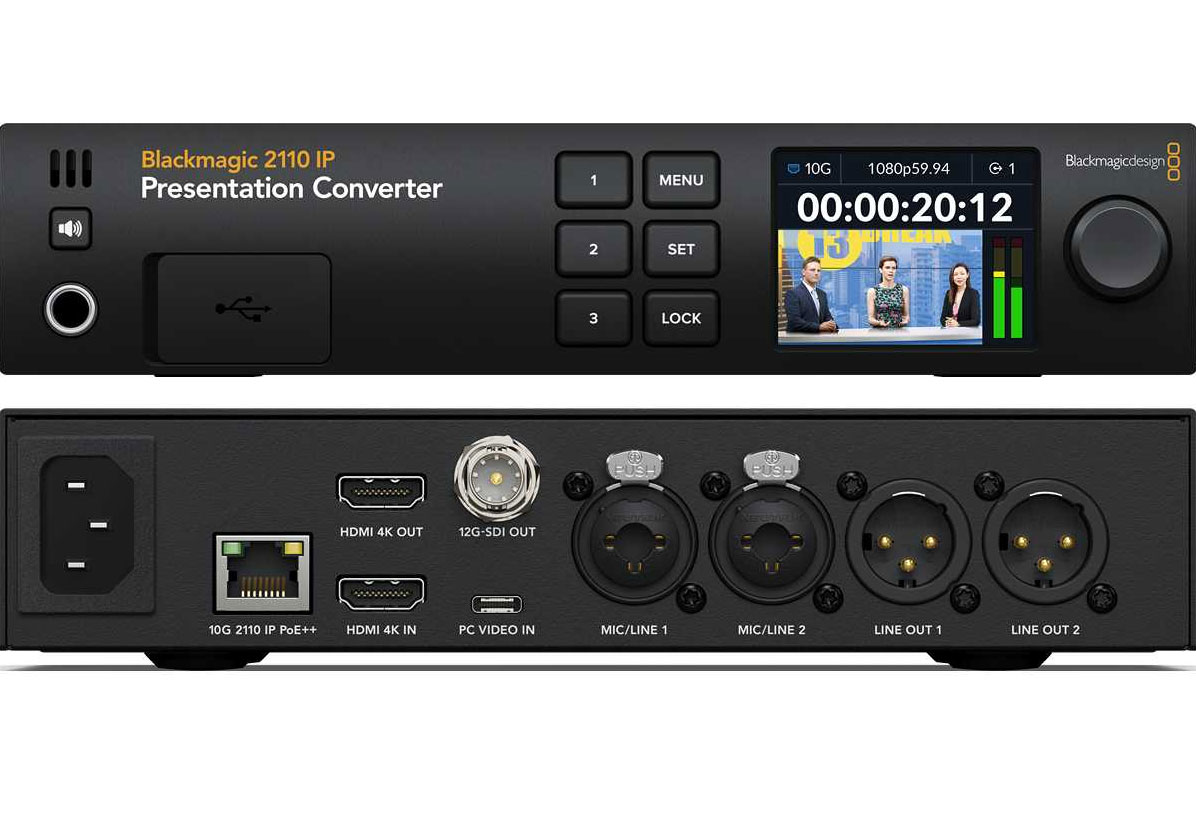

Blackmagic 2110 IP Presentation Converter is designed for speaker podiums with connections for laptops, projectors and microphones all in the one converter. Computers can connect via USB-C for both video and power and there is an HDMI output for projectors that can be switched to the video input or the 2110 IP return feed. For audio, there are XLR microphone inputs and an XLR audio out for PA speakers. The RJ-45 10G Ethernet video connection can power the whole converter, even when charging a USB computer!

2110 IP Converters Features

• All converters conform to the SMPTE-2110 IP video standard
• Choose between Mini Converter or rack mount models
• Uses readily available 10G Ethernet for low cost installation
• Re-syncs SDI inputs to a common PTP clock
• Includes NMOS Protocol for building a virtual router
• Low latency, open standard Blackmagic IP10 codec
• Supports all SD, HD and Ultra HD formats up to 2160p60

Connections

• PC Video Inputs: 1 x front USB‑C plus 1 x rear USB‑C with 45W host charging capability
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• SDI Video Outputs: 1, Automatically standards converted to destination
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
• SMPTE ST-2110 IP Video Inputs: 1 x 10G Ethernet
• SMPTE ST-2110 IP Video Outputs: 1 x 10G Ethernet
• Analog Audio Inputs: 2 x Combination 3-pin XLR / TRS 1/4 inch Jack connectors, switchable between +24dB line and mic level with support for +48V phantom power
• Analog Audio Outputs: 2 channels of professional balanced analog audio with 3-pin XLR connectors, 1 x 6.35 mm headphone jack
• SDI Audio Outputs: 16 Channels embedded in SD/HD/2K/UHD/4K
• HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K
• HDMI Audio Outputs: 8 Channels embedded in SD/HD/UHD/4K
• USB: 2 x USB‑C 3.1 Gen 1 (up to 5 Gb/s)
• Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates
