Blackmagic ATEM 1 M/E Advanced Panel 20
Blackmagic ATEM 1 M/E Advanced Panel 20
SKU: SWPANELADV1ME20

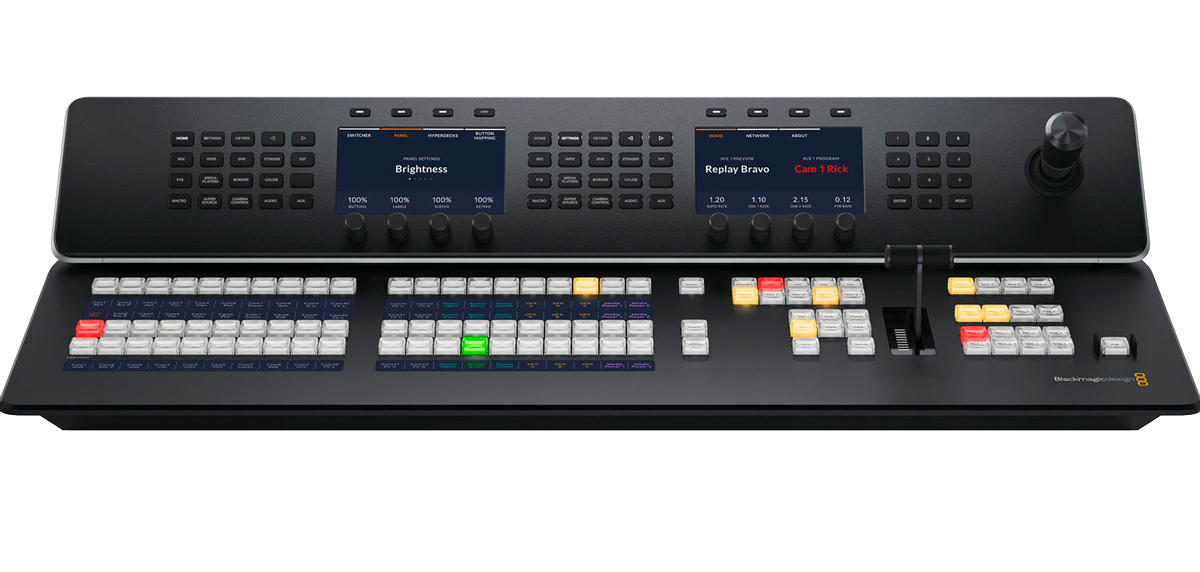

The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Connections
- Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers
- Software Updates: 1 x USB-C for firmware updates.
Merkmale
- Number of Mix Effects Rows: 1
- Direct Cross Points: 20
- Shifted Cross Points: 40
- Crosspoint Button Type: Tri-Color LED
- Preview Transition: 1
- Transition Rate Displays: Via main menu
- LCD Menu Displays: 2
- Menu Control: 2 x 20 buttons
- Dedicated Macro Buttons: 1 x 20
- Transport Control Buttons: 8
- Destination Bus: 1
- Source Select Bus: 1
- Fader Bar: 1
- 3 Axis Joystick: 1
- Numeric Keypad: 1
