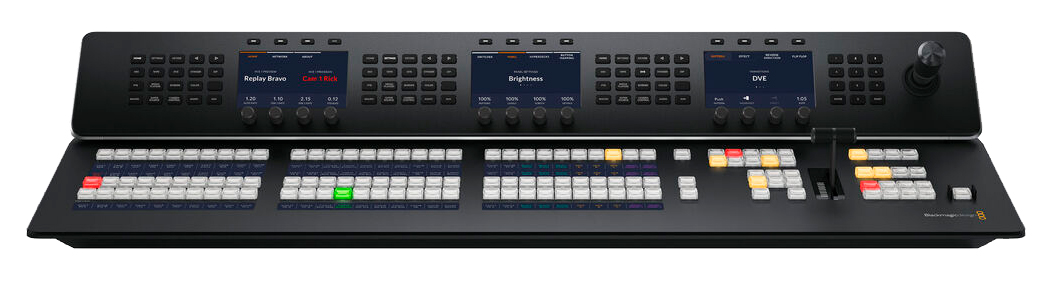

Blackmagic ATEM 1 M/E Advanced Panel 30
Blackmagic ATEM 1 M/E Advanced Panel 30
SKU: SWPANELADV1ME30
The ATEM 1 M/E Advanced Panel 30 features a single M/E row, 30 input button design that is ideal for switching big productions from desk surfaces that are not deep enough for a bigger panel. It has 3 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and it also includes an independent select bus! Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Connections
- Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers
- Software Updates: 1 x USB-C for firmware updates.
Features
- Number of Mix Effects Rows: 1
- Direct Cross Points: 30
- Shifted Cross Points: 60
- Crosspoint Button Type: Tri-Color LED
- Preview Transition: 1
- Transition Rate Displays: Via main menu
- LCD Menu Displays: 3
- Menu Control: 3 x 20 buttons
- Dedicated Macro Buttons: 1 x 30
- Transport Control Buttons: 8
- Destination Bus: 1
- Source Select Bus: 1
- Fader Bar: 1
- 3 Axis Joystick: 1
- Numeric Keypad: 1
