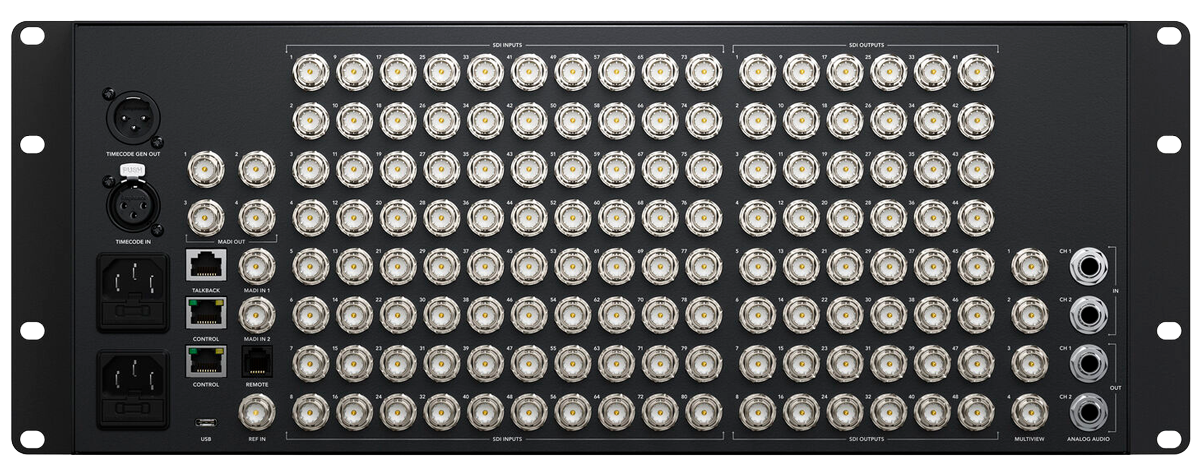

Blackmagic ATEM 4 M/E Constellation 4K Plus
Skip image gallery
Free shipping
New
Product number:
SW28579
Manufacturer:
Blackmagic Design
EAN:
9338716009972
Manufacturer product number:
SWATEMSCN2/2ME4/4K/P
Delivery time:
21-30 days
Blackmagic ATEM 4 M/E Constellation 4K Plus
SKU: SWATEMSCN2/2ME4/4K/P
ATEM 4 M/E Constellation 4K Plus is a massive 4 M/E Ultra HD live production switcher. It features 80 standards converted 12G-SDI inputs, 48 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multi-views, 2 SuperSource processors and more. You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!
Connections
- Reference Input: Tri-Sync or Black Burst
- Video Input Re-Sync: On all 80 inputs
- Frame Rate and Format Converters: On all 80 inputs
- Â SDI Video Inputs: 80x 10-bit 720p, 1080i, 1080p, 2160p
- SDI Audio Inputs: 8 Ch embedded audio on all SDI inputs
- Extra Audio Inputs: 1x 5 pin XLR Talkback
- SDI Video Outputs: 52x 10-bit 720p, 1080i, 1080p, 2160p
- SDI Audio Outputs: 16 Ch embedded into SDI output on all outputs
- Extra Audio Outputs: 1x 5 pin XLR Talkback
- SDI Program Outputs: Any of the 48 SDI outputs
- Down Converted SDI Program Outputs: 8
- SDI Preview Outputs: Any of the 48 SDI outputs
- SDI Multi View Outputs: 4x dedicated outputs, up to an extra 48 routable outputs
- HDMI Multi View Outputs: None
- Webcam Output: 1x USB-C supporting 720p or 1080p at program frame rate
- Remote: RJ12 supports RS-422
- Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network
- Internal Timecode Generator: Yes
- Talkback: RJ45 for 3rd party talkback systems
- Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). On any of the 48 SDI Outputs
- Computer Interface: 1x USB-C port
- Total Video Inputs: 80
- Total Video Outputs: 52
- Total Aux Outputs: 48
- SDI Rates: 1.5G, 3G, 6G, 12G
Total Audio Inputs
- 2x balanced 1/4 inch jack
- 2x 64 channel BNC MADI in
- 1x 5-pin XLR Talkback
Total Audio Outputs
- 2x balanced 1/4 inch jack
- 4x 64 channel BNC MADI out
- 1x 5-pin XLR Talkback
Timecode Connections
- 1x 3-pin XLR Timecode In
- 1x 3-pin XLR Timecode Out
Standards
- SD Video Standards: None
HD Video Standards
- 720p50, 720p59.94, 720p60
- 1080i50, 1080i59.94, 1080i60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
- SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space: REC 709, REC 2020
- SDI Auto Switching: Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI
Product Specification
- Upstream Keyers: 16
- Downstream Keyers: 4
- Advanced Chroma Keyers: 16
- SuperSource: 2
- Talkback Support: Yes
- Mix Minus Support: Yes
- Linear/Luma Keyers: 20
- Transition Keyer (Stinger/DVE): 4 Stinger, 4 DVE
- Total Number of Layers: 28
- Pattern Generators: 21
- Color Generators: 2
- DVEs: 4
- Control Panel: Front fascia emergency switching, software or optional hardware panel
- Routable Windows: 64
- Tally: Red for program and green for preview indication
- Windows Source Labels: Yes
