Blackmagic ATEM Constellation 8K

Blackmagic ATEM Constellation 8K

SKU: SWATEMSCN4/1ME4/8K

The new ATEM Constellation 8K is an Ultra HD live production switcher with so many features, you can combine them all to make an incredibly powerful 8K switcher! You get 4 M/Es, 40 x 12G‑SDI inputs, 24 x 12G‑SDI aux outputs, 4 DVEs, 16 Keyers, 4 media players, 4 multi viewers, 2 SuperSource and standards conversion on every SDI input! Then when switched to 8K, all these features combine to make a powerful 8K switcher! You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics! That’s an audio mixer so big, you can connect and use a full Fairlight audio console! Blackmagic ATEM Constellation 8K has also been designed as an ideal upgrade for ATEM Television Studio!

Designed for Massive Live Events!

With so many inputs, ATEM Constellation is ideal for concerts and music festivals because you can place cameras on all areas of the stage for amazing coverage! Even live sports benefit from the huge number of inputs and four DVEs let you build multi‑layer compositions to cover the action. The fastest way to produce programming is live! With powerful internal graphics and four ATEM Advanced Chroma Keyers, you get everything you need for complex program production. ATEM Constellation is also perfect for house of worship programming as it has the size to produce professional results, but it’s simple to learn so it’s easy to train volunteer crew!

The Ultra HD Switcher Ready for an 8K Future!

Because ATEM Constellation is so incredibly big, you can use it as a massive HD and Ultra HD switcher, then instantly combine all of these features together to work in native 8K. You get the power of 40 independent 12G‑SDI inputs when working in HD or Ultra HD, or when switched to 8K, these 40 inputs transform into 10 Quad Link 12G‑SDI 8K inputs! Each input even has up and cross conversion! That means you can instantly switch 720p, 1080p, 1080i, Ultra HD and 8K video standards! Plus, you get 4 independent Ultra HD multi views that also transform into a full resolution 8K multi view! Even the keyers, DVE, Super Source and downstream keyers all switch to native 8K!

Seriously Advanced Broadcast Power

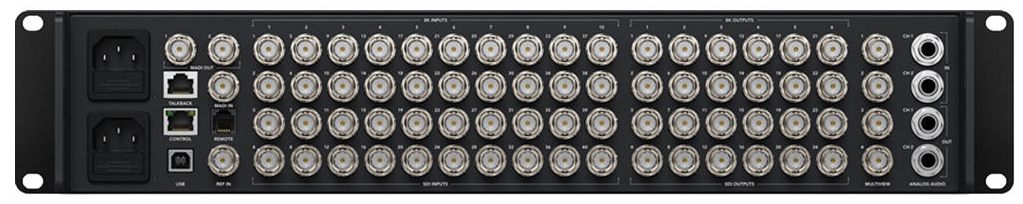

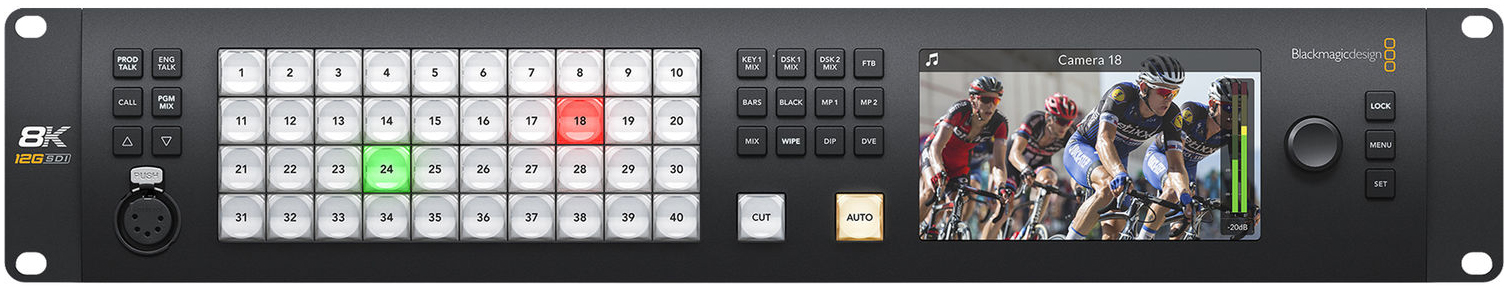

ATEM Constellation 8K features a compact 2RU rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus. Although only 2RU size, the rear of the switcher has a massive 40 x 12G‑SDI inputs, 24 x 12G‑SDI aux outputs, plus balanced audio, Ethernet, RS‑422 control and MADI digital audio extra inputs to the internal Fairlight audio mixer. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system and three low speed cooling fans.
