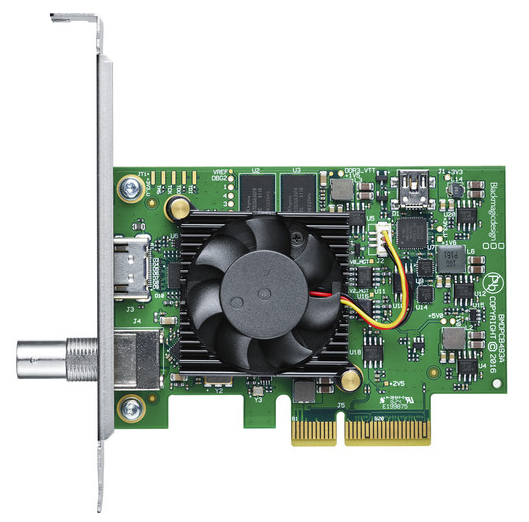

Blackmagic DeckLink Mini Recorder 4K

Blackmagic Decklink 8K Pro SKU: BDLKHCPRO8K12G Blackmagic Decklink 8K Pro is an advanced 8 lane PCI Express capture and playback card designed for the next generation of high resolution 8K workflows. Featuring four 12G-SDI connections, DeckLink 8K Pro supports all SD, HD, Ultra HD, 4K, 8K and 8K DCI frame sizes. DeckLink 8K Pro works in 8 and 10‑bit YUV 4:2:2 as well as 10 and 12‑bit RGB 4:4:4 with full Rec. 2020 support, giving you deep color for true digital cinema quality images! In addition, you can work at up to 60 frames per second up to 8K, as well as up to 64 channels of audio. The connections are also bi-directional, so they can be used to capture or playback quad link 8K. Or, you can use them to capture a single or a dual link SDI source while simultaneously playing back another single or dual link SDI source!

Blackmagic DeckLink SDI 4K BDLKSDI4K Blackmagic DeckLink SDI is perfect when you need an SDI only solution but demand high quality 10 bit 4:2:2 based SDI capture and playback. DeckLink SDI plugs into Windows, Mac OS X and Linux computers and features HD/SD-SDI capture and playback combined with tri-sync/black burst reference input and RS-422 deck control. Features SD Format Support: 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSCHD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60SDI Compliance: SMPTE 259M and SMPTE 292MSDI Metadata Support: VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioningAudio Sampling: Television standard sample rate of 48 kHz at 24 bitVideo Sampling: 4:2:2Color Precision: 10-bitColor Space: REC 601, REC 709Multiple Rate support: SDI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI

Blackmagic DeckLink Quad 2 BM-BDLKDVQD2 4 stream SDI/HD-SDI capture card for software developers Build custom broadcast solutions with Blackmagic DeckLink Quad. When you need broadcast grade multi channel SDI capture and playback, then DeckLink Quad gives you four completely independent DeckLink capture cards, each with bypass relays and watchdog timer, all designed into a single PCI Express card. Only DeckLink Quad empowers developers to create custom software and workflows on Mac, Windows or Linux without limitations. We include a sophisticated SDK, DirectShow filters and QuickTime API that integrate seamlessly with an unbelievably wide range of applications and codecs. Develop your solutions with confidence because DeckLink Quad is a flexible, proven foundation, freeing you to do what you do best. Connections SDI Video Input: 4 x 10-bit SD/HD independently switchableSDI Video Output: 4 x 10 bit SD/HD independently switchableSDI Audio Input: 8 Channels per input, embedded in SD and HDSDI Audio Output: 8 Channels per output, embedded in SD and HDSync Input: Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD formatComputer Interface: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots Video Standards SD Format Support: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSCHD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296MSDI Metadata Support: VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188 and closed captioning.Audio Sampling: Television standard sample rate of 48 kHz and 24 bitVideo Sampling: 4:2:2Color Precision: 10-bitColor Space: REC 601, REC 709Multiple Rate support: SDI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI

Blackmagic DeckLink Duo 2 SKU: BDLKDUO2 PCIe capture and playback card with 4 independent channels for SD and HD up to 1080p60. Featuring 4 independent 3G-SDI connections, DeckLink Duo 2 is a PCIe capture and playback card that supports SDI formats in SD and HD up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more! In the box DeckLink Duo 2SD card with software and manual

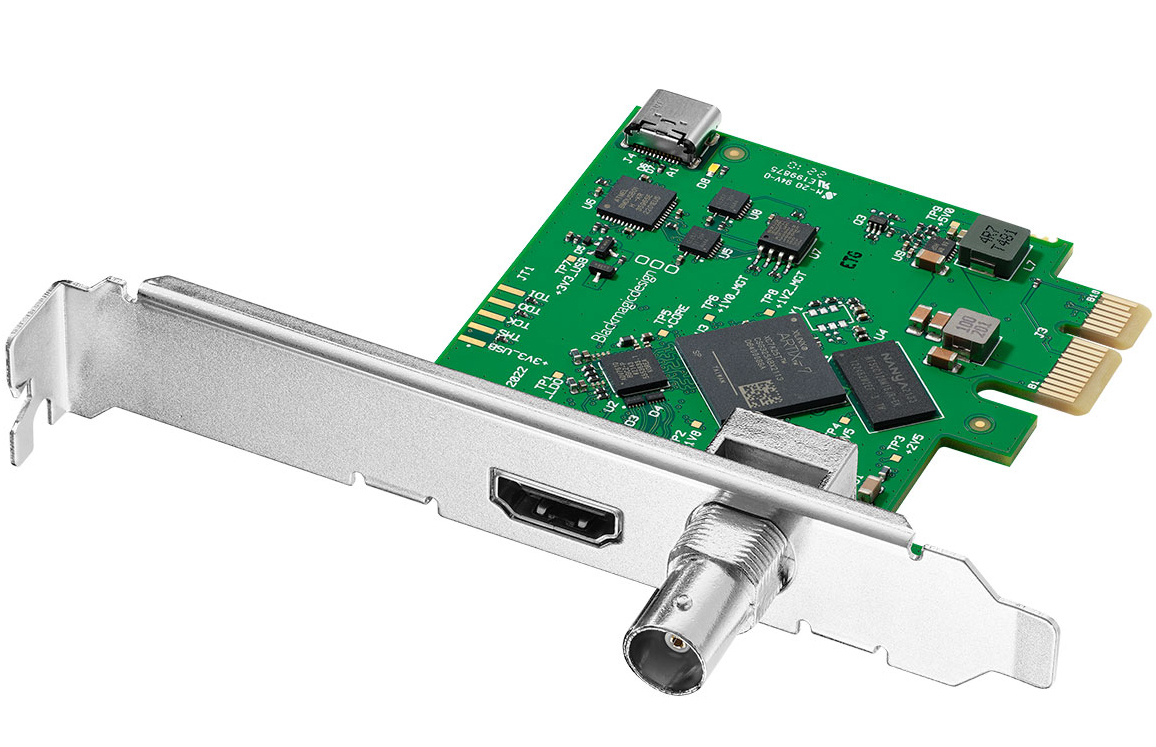

Blackmagic DeckLink Mini Recorder HD SKU: BDLKMINIREC3G Blackmagic Design DeckLink Mini Monitor HD and DeckLink Mini Recorder HD are new models of PCIe capture and playback solutions featuring 3G‑SDI and HDMI connections. These updated models of the popular DeckLink Mini cards support video formats up to 1080p60 and 2Kp60 DCI, and are designed to work with advanced color spaces such Rec. 2020 for deep color and higher dynamic range. The new DeckLink Mini HD models are also lower cost. Get broadcast quality HDMI and SDI video capture for your PCIe computer! DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI! You get a broadcast quality capture card that’s compatible with virtually all SD and HD equipment and popular video software such as DaVinci Resolve and more!

Blackmagic DeckLink 4K Extreme BDLKHDEXTR4K12G Blackmagic DeckLink 4K Extreme features a high performance design for working in the highest film quality! Get 4 times the resolution of 1080 HD with full Ultra HD 4K capture and playback using 6G-SDI and HDMI 4K support. DeckLink 4K Extreme includes single and dual channel SDI connections for both regular 2D and 3D stereoscopic workflows as well as full resolution color RGB 4:4:4 capture and playback. Includes dual link 6G-SDI, HDMI 3D/4K and analog component, composite, S-video connections. Work in SD, HD and Ultra HD 4K. Also includes AES and analog balanced audio, 16 channel SDI audio, genlock, deck control, broadcast quality up, down and cross conversion, plus built in SD/HD internal keyer. What's Included Blackmagic DeckLink 4K ExtremeSoftware-CDBreakout cable for analog and RS-422 controlHDMI bracket

Blackmagic DeckLink Mini Monitor 4K SKU: BDLKMINIMON4K DeckLink Mini Monitor 4K is a low profile PCIe playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI, along with support for Rec. 2020 color space. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS X, Windows and Linux! Includes two PCIe shields for both full height and low profile slots. What's Included DeckLink Mini Monitor 4KLow profile slot bracketSD card with software and manual Warranty 3 Year Limited Manufacturer's Warranty
