Blackmagic HyperDeck Shuttle 4K Pro

Blackmagic HyperDeck Shuttle 4K Pro

SKU: HYPERD/PTSKD

HyperDeck Shuttle 4K Pro from Blackmagic Design is an advanced recorder and player with a large 7'' LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT and network recording via fast 10G Ethernet.

The advanced Blackmagic HyperDeck Shuttle 4K Pro includes the latest 12G-SDI and HDMI 4K video connections. Standard definition support includes NTSC and PAL. 720p HD standards include 720p50 and 59.94p. 1080i HD interlaced standards include 1080i50 and 1080i59.94. 1080p HD television standards include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. HyperDeck Shuttle 4K Pro even handles 1080 PsF formats. 12G-SDI and HDMI 4K also handles Ultra HD in all television standards including 2160p23.98, 24, 25, 29.97, 50, 59.94 and 60p. SDI also supports both level A and level B when working in 3G-SDI rates.

The powerful Blackmagic Design HyperDeck Shuttle 4K Pro has extremely fast 10G Ethernet. The network speeds are so fast that lots of editors and colorists can access the built-in HyperDeck M.2 storage over their network, all at the same time. Customers can also transfer files via an easy-to-use HTTP/S web interface or an FTP client. For broadcast automation control, HyperDeck uses the Ethernet connection and a simple text-based protocol, which customers can test with a simple Telnet client. A REST protocol is also supported for custom automation and it's fully documented in the manual. This means HyperDeck Shuttle 4K Pro is a fully self-contained broadcast server for ingest, media management and play out.

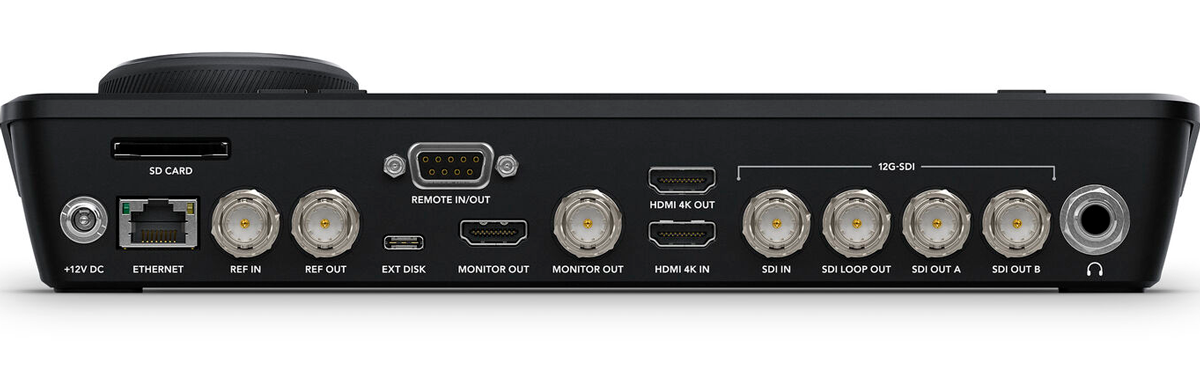

Connections

• SDI Video Inputs: 1
• SDI Loop Outputs: 1
• SDI Video Outputs: 2
• SDI Monitor Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• HDMI Monitor Outputs: 1
• Built in Speaker: Mono
• Audio Output: 1x 6.35 mm headphone jack
• Screen: 7 inch LCD
• Reference Input: 1x BNC In, Tri-Sync or Black Burst
• Reference Output: 1x BNC Out
• SDI Audio Inputs: 64 channels embedded audio
• SDI Audio Outputs: 64 channels embedded audio
• HDMI Audio Inputs: 8 channels embedded audio
• HDMI Audio Outputs: 8 channels embedded audio
• Remote Control: 1x RS-422 In
• Recorder Configuration: Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol
• Ethernet: 1x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T
• External Recording: 1x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording
• Computer Interface: 1x USB-C for software updates.
