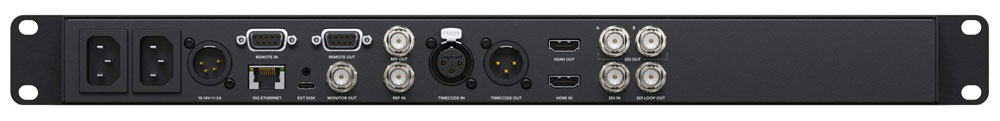

Blackmagic Hyperdeck Studio 4K Pro

AJA Ki Pro Rack With a wealth of professional connections including SDI and HDMI, Ki Pro Rack will fit right into your existing cabling and routing system. AJA Ki Pro Rack also features AJA’s industry leading conversion technology, enabling you to perform broadcast quality up, down, cross-conversion during recording or playback without the need for additional conversion hardware. HD/SD Recorder and PlayerRecord and playback Apple ProRes or Avid DNxHD filesSDI, HDMI, and Component Video I/OAES (BNC) and analog (XLR) audio I/O2x KiStor media bays with Ki ProtectBalanced XLR analog audio inputs, mic/line/48v switchableMulti-channel embedded SDI and HDMI audio = Up, down, cross-conversion built-inREF, LTC, RP-188 and RS-422 supportREST interfaceFront panel button controlsEasy to use web UI, configure and control from standard web browsersCompact 1RU designThree year warranty TECHNICAL DATA Video Formats1080i 25, 29.97, 301080PsF 23.98, 24, 25*, 29.97*1080p 23.98, 24, 25, 29.97720p 23.98*, 25*, 29.97*, 50, 59.94, 60625i 25525i 29.97*25 and 29.97 require a valid camera source and the use of the Record Type>PsF selectionCodec SupportApple ProRes 422Apple ProRes 422 (HQ)Apple ProRes 422 (LT)Apple ProRes 422 (Proxy)Avid DNxHD HQX (220x)Avid DNxHD SQ (145)Avid DNxHD LD (36), only provides support for the 1080p formatRemovable StorageAJA KiStor modules - 2 slots with rollover recordingVideo Input DigitalSD/HD SDI, SMPTE-259/292, 10-bitSingle Link 4:2:2 (2 x BNC, input selection in software)HDMI v1.3Video Output DigitalSD/HD SDI, SMPTE-259/292Single Link 4:2:2 10-bit (1 x BNC)HDMI v1.3Note: HDMI requires 1080i, 720p or 1080p to be active; HDMI does not provide support for PsFVideo Input AnalogSD/HD Component (3 x BNC)SMPTE/EBU N10, Betacam 525 line, Betacam 525J12-bit A/D, 2 x oversampling+/- .25dB to 5.5 mHz Y frequency response+/- .25dB to 2.5 mHz C frequency response .5% 2T pulse response<2 ns Y/C delay inequity, or Composite (1 x BNC – CVBS on Y)Video Output AnalogComponent (3 x BNC)NTSC, NTSCJ, PALHD: YPbPr, RGBSD: YPbPr, RGB (component mode)SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB12-bit D/A, 8 x oversampling+/- .2dB to 5.5 mHz Y frequency response+/- .2dB to 2.5 mHz C frequency response.5% 2T pulse response<1 ns Y/C delay inequity, or Composite (1 x BNC – CVBS on Y)+/- .2dB to 5.0 mHz Y frequency response+/- .2dB to 1 mHz C frequency response<1% Diff Phase<1% Diff GainAudio Input Digital8-channel, 24-bit SMPTE-272/299 SDI embedded audio, 48 kHz sample rate, synchronous8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous8-channel, 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)Audio Input Analog2-channel, 24-bit A/D analog audio, 48 kHz sample rate, balanced (2 x XLR)+24 dBu full scale digital+/- 0.2 dB 20Hz to 20 kHz frequency response (Note: Line or Mic selection via CONFIG menu parameters)Audio Output Digital8-channel, 24-bit SMPTE-272/299 SDI embedded audio, 48 kHz sample rate, synchronous8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous8-channel, 24-bit AES/EBU audio, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)Audio Output Analog2-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced (2 x XLR)+24 dBu full scale digital (0dbFS)+/- 0.2 dB 20 Hz to 20 kHz frequency responseStereo unbalanced headphone (1 x 3.5mm mini jackUp-ConversionHardware 10-bitAnamorphic: fullscreenPillarbox 4:3: results in a 4:3 image in center of screen with black sidebarsZoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side barsZoom Letterbox: results in image zoomed to fill fullscreenZoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio changeDown-ConversionHardware 10-bitAnamorphic: fullscreenLetterbox: image is reduced with black top and bottom added to image area with the aspect ratio preservedCrop: image is cropped to fit new screen sizeCross-ConversionHardware 10-bit1080i to 720p720p to 1080iTimecodeSDI RP188/SMPTE 12M via SDI BNCHDMI (when used with compatible cameras)LTC Input (1x BNC)LTC output (1x BNC) (Note: active during playback not during record or EE)Reference InputExternal, 2x BNCLooping, nonterminatingBlackburst or tri-level syncNetwork Interface10/100/1000 Ethernet (RJ-45)Embedded web server for remote controlUser Interface2x 20 character display, with dedicated buttonsClosed Captioning SupportCEA-708, CEA-608Machine ControlRS-422, 1x DE-9 female connector, Sony 9-pin protocol9-pin D-connector pinout is as follows: 1-GND, 2-TX-, 3-RX+, 4-GND, 5-No Connection, 6-GND, 7-TX+, 8-RX- ,9-GND, Shell-GNDSize (w x d x h)482.6mm x 317.5mm x 44.5mmWeight3.4 kgPower100-240 VAC 50/60 Hz, dual, redundant power supplies, 40W typicalEnvironmentSafe Operating Temperature: 0 to 40 C (32 to 104 F)Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)Operating Relative Humidity: 10-90% noncondensingOperating Altitude: <3,000 meters (<10,000 feet)

Blackmagic HyperDeck Studio HD Plus The new HyperDeck Studio recorders have been totally redesigned with dozens of new features! The advanced models have new broadcast style front panel controls and more connections on the rear panel. The LCD screen supports both light and dark modes, plus the transport control buttons are stronger with a firm professional feel HyperDeck Studio HD Plus includes all the features of the Mini model, but is larger so it has more space for extra controls and extra connections. This model adds 6G-SDI so it can record and playback ProRes up to Ultra HD 30fps, and it includes an SDI loop out and HDR support. Plus the two 6G-SDI outputs allow fill and key playback up to 1080p60. There is also an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Any button pushed on the front panel is sent to a dedicated RS-422 remote output and the DC power is now a broadcast style XLR connector. The front panel is also upgraded with better transport control buttons, a headphone socket and built in speaker.

Blackmagic HyperDeck Studio HD Pro HyperDeck Studio lets you record broadcast quality video files directly onto SD cards and SSD media! The new redesigned HyperDeck Studios feature modern design with more codecs and quieter cooling. All models now support recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio. Plus the 4K model adds support for H.265 files! The HyperDeck Studio HD Pro includes all the features of the Plus model but at a full rack width size, there's space for more features! The larger model has space for two SSD slots but still includes the two SD card slots of the smaller models. This means you can instantly move media cards between different models of HyperDeck Studio. You get the nice transport control buttons as well as a machined metal search dial with electronic clutch for limiting rotation when in shuttle mode. There are also dedicated buttons for jog, shuttle and scroll search dial modes. The rear panel has extra space so the timecode connections have been upgraded to XLR connectors.

Blackmagic HyperDeck Studio HD Mini All HyperDeck Studio models support recording to common SD cards and UHS-II cards so you don't need expensive custom media. However the Pro models also add two SSD slots so you can use two different types of media! SD cards and SSDs are the perfect choice for broadcast media because they are small and very affordable. When using H.264, the files are so incredibly small you get very long recordings even on smaller low cost cards The most compact model of HyperDeck Studio is based on the Teranex Mini form factor. This modular design means that you can use a Teranex Mini Rack Shelf to rack mount 3 HyperDeck Studio HD Minis in a single rack unit, or you can combine them with other products such as switchers, converters or streaming processors. It might be small, but you still get powerful features, such as 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls and both AC and DC power inputs. You can even connect the USB to a computer as HyperDeck Studio HD Mini works like a webcam so you can use any video software!
