Blackmagic PYXIS 12K
Skip image gallery
Free shipping
New
Product number:
SW28592
Manufacturer:
Blackmagic Design
EAN:
9338716009927
Manufacturer product number:
CINECAMCPYXM12LFL
Delivery time:
21-30 days

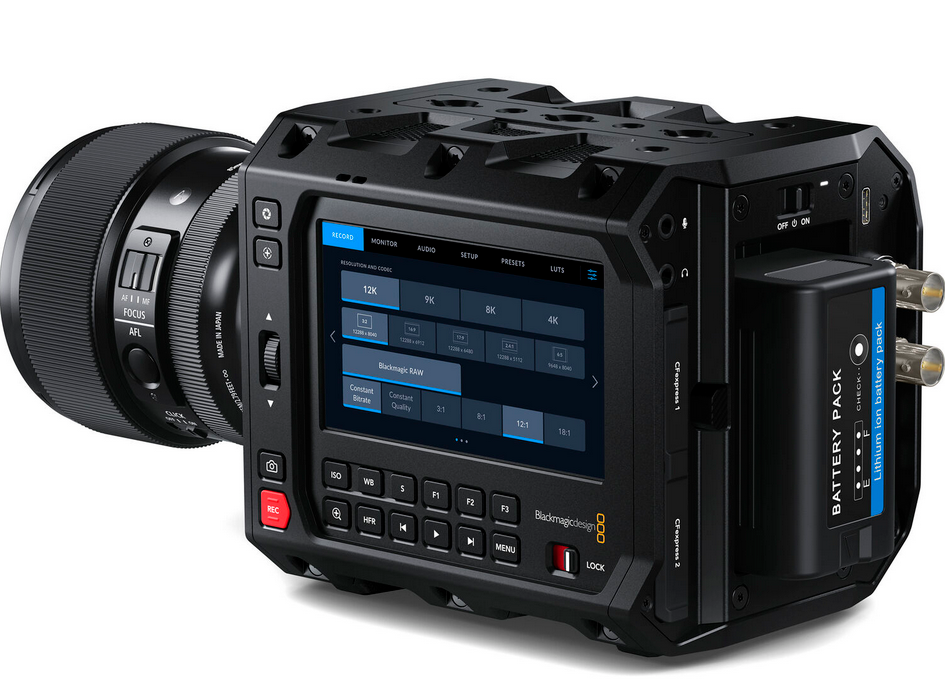

Blackmagic PYXIS 12K
SKU: CINECAMCPYXM12LFL
Blackmagic PYXIS 12K L-Mount is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 12,288 x 8040 full frame RGBW sensor with built in optical low pass filter, 16 stops of dynamic range, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates.
Blackmagic PYXIS 12K L-Mount features a fixed L-Mount that works with the latest full frame lenses and a wide range of lens adapters.
Camera Features
- Effective Sensor Size: 35.64mm x 23.32mm (Large Format)
- Pixel Pitch: 2.9 microns
- Lens Mount: Active L-Mount
- Lens Control: Iris and focus on supported lenses
- Dynamic Range: 16 Stops
- Native ISO: 800
- Focus: Focus control possible using compatible lenses
- Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses
- Screen Dimensions: 4'' 1920 x 1080
- Screen Brightness: 1500 nits
- Screen Type: LCD capacitive touchscreen
- Metadata Support: Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files
- Controls: Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys
- Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours
- Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected
Shooting Resolutions
- 12,288 x 8040 (12K 3:2 open gate)
- 12,288 x 6912 (12K 16:9)
- 12,288 x 6480 (12K 17:9)
- 12,288 x 5112 (12K 2.4:1)Â
- 9648 x 8040 (12K 6:5)
- 9408 x 6264 (9K 3:2)
- 8688 x 4896 (9K 16:9)
- 9312 x 4896 (9K 17:9)
- 9312 x 3864 (9K 2.4:1)
- 7680 x 6408 (9K 6:5)
- 8192 x 5360 (8K 3:2 open gate)
- 8192 x 4608 (8K 16:9)
- 8192 x 4320 (8K 17:9)
- 8192 x 3408 (8K 2.4:1)
- 6432 x 5360 (8K 6:5)
- 4096 x 2680 (4K 3:2 open gate)
- 4096 x 2304 (4K 16:9)
- 4096 x 2160 (4K 17:9)
- 4096 x 1704 (4K 2.4:1)
- 3216 x 2680 (4K 6:5)
High Frame Rates
- 12K (3:2 open gate) up to 40 fps
- 12K (16:9) up to 45 fps
- 12K (17:9) up to 50 fps
- 12K (2.4:1) up to 60 fps
- 12K (6:5) up to 40 fps
- 9K (3:2 Super 35) up to 50 fps
- 9K (16:9 Super 35) up to 65 fps
- 9K (17:9 Super 35) up to 65 fps
- 9K (2.4:1 Super 35) up to 80 fps
- 9K (6:5 Super 35) up to 50 fps
- 8K/4K (3:2 open gate) up to 72 fps
- 8K/4K (16:9) up to 84 fps
- 8K/4K (17:9) up to 90 fps
- 8K/4K (2.4:1) up to 112 fps
- 8K/4K (6:5) up to 72 fps
Connections
- Total Video Inputs: None
- Total Video Outputs: 1x 12G-SDI up to 2160p60 1x Viewfinder USB-C with power, data, video and locking connector
- Analog Audio Inputs: 1x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to +14dBu). 1x 3.5mm Stereo Input
- Analog Audio Outputs: 1x 3.5mm headphone jack
- Reference Inputs: Tri-Sync/Black Burst and Timecode
- Computer Interface: USB Type-C for external drive recording, PTP camera control and software updates
- Ethernet: 1x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE‑T
What's Included
- Blackmagic PYXIS 12K
- Lens turret dust cap
- PYXIS Standard Plate
- PYXIS SSD Plate
- 90W power supply with locking connector and international adapters
- Welcome booklet
- DaVinci Resolve Studio activation key
