Blackmagic PYXIS 6K Canon EF

Blackmagic URSA Cine EVFBlackmagic URSA Cine EVF makes outdoors and handheld shooting with your Blackmagic URSA Cine or Blackmagic PYXIS digital film camera easy! You get a high quality 1920 x 1080 color OLED display with 4 element glass diopter for incredible accuracy with a wide focus adjustment, assignable function buttons and more. URSA Cine EVF is easy to set up with a single USB-C cable connection for video, power and camera control and can be position in multiple different ways. It also includes an extension arm to position it on a dolly or geared head.Video Inputs: USB-CPower Input: USB-CData Input / Output: USB-CComputer Interface: USB-C for software updatesDisplay Resolution: Full 1920 x 1080Frame Rates: Up to 60fpsDisplay Type: OLEDDisplay Pixels: 6.22 Million PixelsColor Precision: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084Focus: 4 Element diopterDiopter Range: -5 to +5Controls: Record button, Exposure Button, Zoom Button, 3 x assignable VF buttonsOverlays: Built in overlay display processor and top mounted buttonsEyepiece: Can be tilted vertically and extended for left or right eye useTally: LED tally lightMounting Options: Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supportsMetadata Support: Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K camera

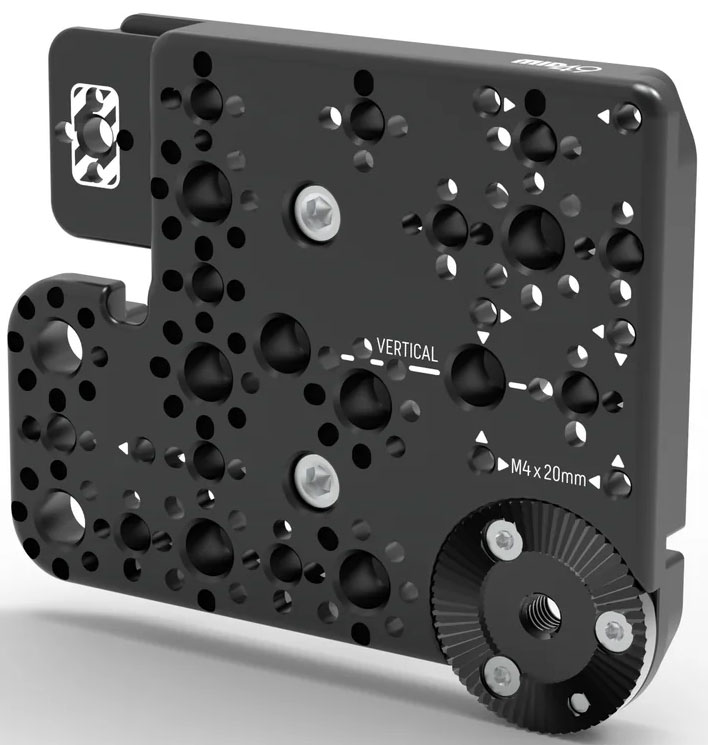

MID49 Side Plate (Blackmagic PYXIS)SKU: M49-CAG-BMP-SDPSide Plate (Blackmagic PYXIS) attaches to the side of the camera and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. A marked set of 3/8-16 and 1/4-20 holes are on the sensor axis and the plate is the correct thickness to mount the camera vertically on Baseline 15mm LW (Blackmagic PYXIS) and use 15mm rods at the correct lens height. The striped 1/4-20 provides an ideal mounting location for Audio Breakout AB-9 (Blackmagic PYXIS) and recessed cable loops on the back of the side plate allow for clean cable management.Dimensions (WxLxH):88.5 x 104 x 11.5mm

8Sinn Side Plate for Blackmagic Pyxis 6KSKU: 8-SPBMPThe aluminum side plate comes with four points of attachment, ensuring a secure and stable connection to the camera body. This design provides an enhanced level of stability, reducing the risk of unwanted movement or detachment during intense shooting sessions. No matter the conditions, multiple attachment points guarantee a reliable hold.Versatility is a hallmark of this side plate, thanks to its 1/4” mounting points. These standard-sized threads allow for a wide range of accessories to be attached and ensure that the users can customize their rigs to suit specific shooting conditions and preferences.Key features4 points of attachment1/4” mounting points3/8" threaded openings with Arri locating pointsCold shoe mountBuilt-in NATO railBuilt-in Arri rosetteAluminum made

MID49 Breakout Box and Side Plate Bundle for Blackmagic PYXISSKU: M49-BOB-SPB-BPBreakout Box and Side Plate Bundle for Blackmagic PYXIS includes:Side Plate (Blackmagic PYXIS)A mounting plate that attaches to the side of the camera and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. A marked set of 3/8-16 and 1/4-20 holes are on the sensor axis and the plate is the correct thickness to mount the camera vertically on Baseline 15mm LW (Blackmagic PYXIS) and use 15mm rods at the correct lens heightAudio Breakout AB-9 (Blackmagic PYXIS)A passive adapter that converts the camera's front mini XLR and rear 3.5mm TRS plug into two standard, full-size XLRsInput 1 - balanced audio with phantom power via camera menuInput 2 - unbalanced audio, no phantom power available24 cm cable length with custom low profile mini XLR connector and Neutrik 3.5mm TRS.

MID49 Audio Breakout AB-9 (Blackmagic PYXIS)SKU: M49-BOB-AB9 Audio Breakout AB-9 (Blackmagic PYXIS) is a passive adapter that converts the camera's front mini XLR and rear 3.5mm TRS plug into two standard, full-size XLRsInput 1 - balanced audio with phantom power via camera menuInput 2 - unbalanced audio, no phantom power availableAttaches by a captive 1/4-20 screw and rubber pad to the camera body or Side Plate (Blackmagic PYXIS). Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-9 to attach using a 3/8-16 screw with ARRI locating pins. Attaches easily to rods using the Single 15mm Rod Clamp or Single 19mm Rod Clamp (sold separately). 24 cm cable length with custom low profile mini XLR connector and Neutrik 3.5mm TRSWeight: 56gDimensions (WxLxH): 35 x 250 x 28mm

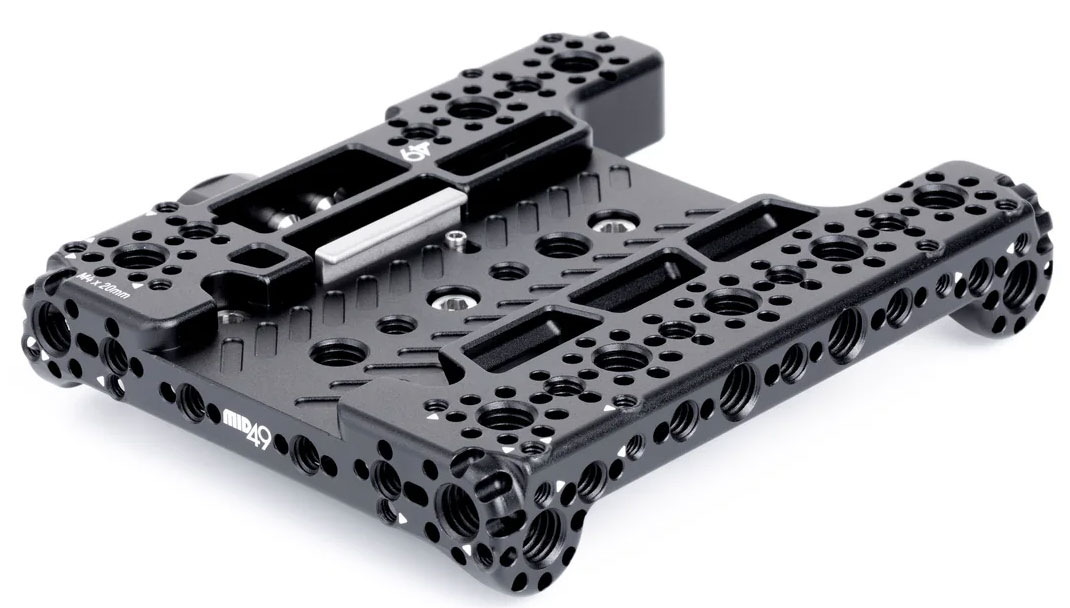

MID49 Top Plate (Blackmagic PYXIS) SKU: M49-CAG-BMP-TOP Top Plate (Blackmagic PYXIS) attaches to the top of the camera and provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, M4x20mm ARRI standard threaded holes, and ventilation holes for the PYXIS fan. Center ARCA dovetail clamp allows for attachment of the the Rainbow Handle Kit, ARCA Top Handle, ARCA Top Plate, and Gimbal Adapter Plates (Freefly Mōvi Pro and DJI Ronin 2) for quick change between handheld and studio modes. Side 3/8-16 ARRI accessory mounts can accept Cage NATO Side Arm (ARRI 3/8-16) for cage building.Weight: 252gDimensions (WxLxH): 107 x 132 x 24mm

MID49 Base Kit for Blackmagic PYXIS SKU: M49-KTB-BMD-PY Base Kit for Blackmagic PYXIS is an accessory kit that includes:Top Plate (Blackmagic PYXIS)Provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, M4x20mm ARRI standard threaded holes, and ventilation holes for the PYXIS fan.ARCA Top HandleSliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.Baseline 15mm LW (Blackmagic PYXIS)Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.

MID49 Base Kit for Blackmagic PYXIS + Breakout BundleSKU: M49-KTB-BMD-PYBB Base Kit for Blackmagic PYXIS is an accessory kit that includes:Top Plate (Blackmagic PYXIS)Provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, M4x20mm ARRI standard threaded holes, and ventilation holes for the PYXIS fan.ARCA Top HandleSliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.Baseline 15mm LW (Blackmagic PYXIS)Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.Side Plate (Blackmagic PYXIS)A mounting plate that attaches to the side of the camera and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. A marked set of 3/8-16 and 1/4-20 holes are on the sensor axis and the plate is the correct thickness to mount the camera vertically on Baseline 15mm LW (Blackmagic PYXIS) and use 15mm rods at the correct lens height.Audio Breakout AB-9 (Blackmagic PYXIS)A passive adapter that converts the camera's front mini XLR and rear 3.5mm TRS plug into two standard, full-size XLRs.Input 1 - balanced audio with phantom power via camera menu Input 2 - unbalanced audio, no phantom power available9.5 inch (24 cm) cable length with custom low profile mini XLR connector and Neutrik 3.5mm TRS.

MID49 Mid Kit for Blackmagic PYXISSKU: M49-KTM-BMD-PYMid Kit for Blackmagic PYXIS is an accessory kit that includes:Top Plate (Blackmagic PYXIS)Provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, M4x20mm ARRI standard threaded holes, and ventilation holes for the PYXIS fan2x Cage NATO Side Arm (ARRI 3/8-16)Attaches to the sides of the Top Plate and provides an ARRI Rosette adjustable NATO accessory rail with safety pins on each endARCA Top HandleSliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mountsBaseline 15mm LW (Blackmagic PYXIS)Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom2x 15mm Rod (9 inch)Stainless steel iris rodsSide Plate (Blackmagic PYXIS)A mounting plate that attaches to the side of the camera and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. =A marked set of 3/8-16 and 1/4-20 holes are on the sensor axis and the plate is the correct thickness to mount the camera vertically on Baseline 15mm LW (Blackmagic PYXIS) and use 15mm rods at the correct lens heightAudio Breakout AB-9 (Blackmagic PYXIS)A passive adapter that converts the camera's front mini XLR and rear 3.5mm TRS plug into two standard, full-size XLRs. Input 1 - balanced audio with phantom power via camera menuInput 2 - unbalanced audio, no phantom power available9.5 inch (24 cm) cable length with custom low profile mini XLR connector and Neutrik 3.5mm TRS.

8Sinn Top Plate for Blackmagic Pyxis 6KSKU: 8-TPBMPOne of the standout features of this aluminum top plate is its four-screw attachment system. This ensures the plate is securely fastened to your camera, providing a stable and reliable connection. The four screws distribute the holding force evenly across the plate, minimizing any potential movement or wobble during use. The inclusion of multiple 1/4” mounting points offers versatility for adding accessories. These standardized mounting points allow for the attachment of a wide range of peripherals. This flexibility enables you to customize your camera setup according to the specific needs of your shoot. For those requiring even more robust mounting options, the top plate also features 3/8" threaded openings with Arri locating points. These are strategically placed on both the top and the sides of the plate, providing additional attachment points for larger and heavier accessories. The Arri locating points ensure a secure and anti-twist connection, which is essential for maintaining stability when using heavier gear. A built-in NATO rail adds another layer of convenience and security. The NATO rail is equipped with safety pins, which prevent accidental dislodging of mounted accessories. This quick-release rail system allows for fast and easy attachment or detachment of accessories, speeding up your workflow. Constructed from high-quality aluminum, this top plate is designed to withstand the rigors of professional use. Aluminum offers an excellent balance of strength and weight, making it durable yet lightweight. This ensures that the top plate does not add unnecessary bulk to your camera setup. Key features4 points of attachment1/4” mounting points3/8" threaded openings with Arri locating pointsBuilt-in NATO railAluminum made

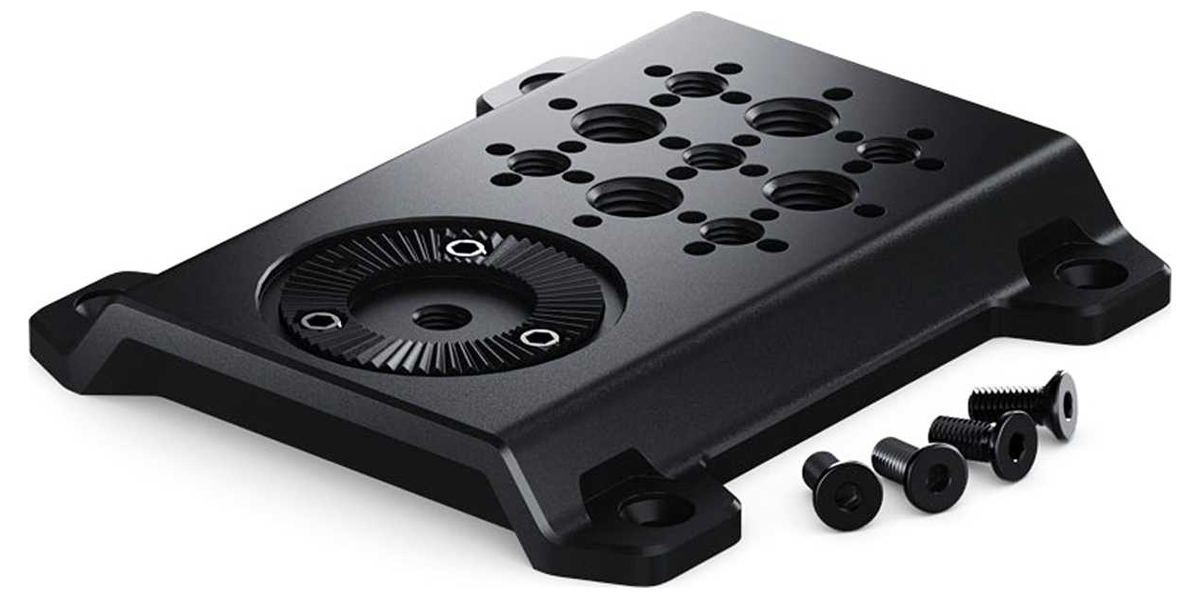

Blackmagic PYXIS Rosette PlateSKU: CINECAMCPYXK/RPLATEBlackmagic PYXIS Rosette Plate is an optional side plate with 5 1/4″ thread mounts and 4 3/8″ thread mounts for adding accessories, plus a rosette mounting point for attaching handgrips or extension arms.

Blackmagic PYXIS MonitorBlackmagic PYXIS Monitor is a versatile 5'' HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.ConnectionsUSB-C with Locking Connector: Video, power, data and software updatesFeaturesDisplay Size: 5 inchDisplay Resolution: Full 1920 x 1080Display Type: LCD capacitive touchscreenDisplay Brightness: 1500 nitsFrame Rates: Up to 60fpsTally: Rear facing LED tally lightAccelerometer: Automatically rotates image when monitor mounted upside downControlOn Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menusButton Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functionsFunction Button Presets: FPS: Preset Value, Iris: Preset Value, WB: Preset Value, ISO: Preset Value, Shutter: Preset ValueFunction Button Toggle: Clean Feed, Status Text, Display LUT, Frame Guides, Focus Assist, False Color, Zebra, Grid, Safe Area Guide, Off Speed Rec, Focus Zoom, Focus, Record, Auto White Balance, Color Bars, Playback, False Color + Zebra, OIS, Stream, StillMountingMounting Points1x 1/4-20 bottom mounting point with ARRI locating pin pattern2x M4 bottom mounting points1x 1/4-20 side mounting point with ARRI locating pin pattern2x M4 side mounting points.Mounting BracketsBlackmagic PYXIS Monitor Swivel Mount ‑ included in KitBlackmagic PYXIS Monitor Fixed Mount ‑ included in KitBlackmagic PYXIS Monitor Dovetail Shoe ‑ included in KitCompatible withBlackmagic PYXIS 6KBlackmagic PYXIS 6K PLBlackmagic PYXIS 6K EFBlackmagic URSA Cine 12K LFBlackmagic URSA Cine 17K 65Monitor - in the boxBlackmagic PYXIS MonitorBlackmagic PYXIS Clip On SunshadeWelcome wallet with QR code for software downloadBlackmagic Design Sticker Monitor Kit - in the boxBlackmagic PYXIS MonitorBlackmagic PYXIS Clip On SunshadeBlackmagic PYXIS Monitor Swivel MountBlackmagic PYXIS Monitor Fixed Mount and screwsBlackmagic PYXIS Monitor Dovetail Shoe and screws1x USB-C Viewfinder CableWelcome wallet with QR code for software downloadBlackmagic Design Sticker EVF kit - in the boxBlackmagic PYXIS MonitorBlackmagic PYXIS Clip On SunshadeBlackmagic PYXIS Monitor Swivel MountBlackmagic PYXIS Monitor Fixed Mount and screwsBlackmagic PYXIS Monitor Dovetail Shoe and screwsBlackmagic URSA Cine EVF Bracket rod mountBlackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod2x short 15mm carbon fibre rods1x USB-C viewfinder cableWelcome wallet with QR code for software downloadBlackmagic Design Sticker

Blackmagic PYXIS MonitorBlackmagic PYXIS Monitor is a versatile 5'' HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.ConnectionsUSB-C with Locking Connector: Video, power, data and software updatesFeaturesDisplay Size: 5 inchDisplay Resolution: Full 1920 x 1080Display Type: LCD capacitive touchscreenDisplay Brightness: 1500 nitsFrame Rates: Up to 60fpsTally: Rear facing LED tally lightAccelerometer: Automatically rotates image when monitor mounted upside downControlOn Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menusButton Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functionsFunction Button Presets: FPS: Preset Value, Iris: Preset Value, WB: Preset Value, ISO: Preset Value, Shutter: Preset ValueFunction Button Toggle: Clean Feed, Status Text, Display LUT, Frame Guides, Focus Assist, False Color, Zebra, Grid, Safe Area Guide, Off Speed Rec, Focus Zoom, Focus, Record, Auto White Balance, Color Bars, Playback, False Color + Zebra, OIS, Stream, StillMountingMounting Points1x 1/4-20 bottom mounting point with ARRI locating pin pattern2x M4 bottom mounting points1x 1/4-20 side mounting point with ARRI locating pin pattern2x M4 side mounting points.Mounting BracketsBlackmagic PYXIS Monitor Swivel Mount ‑ included in KitBlackmagic PYXIS Monitor Fixed Mount ‑ included in KitBlackmagic PYXIS Monitor Dovetail Shoe ‑ included in KitCompatible withBlackmagic PYXIS 6KBlackmagic PYXIS 6K PLBlackmagic PYXIS 6K EFBlackmagic URSA Cine 12K LFBlackmagic URSA Cine 17K 65Monitor - in the boxBlackmagic PYXIS MonitorBlackmagic PYXIS Clip On SunshadeWelcome wallet with QR code for software downloadBlackmagic Design Sticker Monitor Kit - in the boxBlackmagic PYXIS MonitorBlackmagic PYXIS Clip On SunshadeBlackmagic PYXIS Monitor Swivel MountBlackmagic PYXIS Monitor Fixed Mount and screwsBlackmagic PYXIS Monitor Dovetail Shoe and screws1x USB-C Viewfinder CableWelcome wallet with QR code for software downloadBlackmagic Design Sticker EVF kit - in the boxBlackmagic PYXIS MonitorBlackmagic PYXIS Clip On SunshadeBlackmagic PYXIS Monitor Swivel MountBlackmagic PYXIS Monitor Fixed Mount and screwsBlackmagic PYXIS Monitor Dovetail Shoe and screwsBlackmagic URSA Cine EVF Bracket rod mountBlackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod2x short 15mm carbon fibre rods1x USB-C viewfinder cableWelcome wallet with QR code for software downloadBlackmagic Design Sticker

Blackmagic PYXIS MonitorBlackmagic PYXIS Monitor is a versatile 5'' HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.ConnectionsUSB-C with Locking Connector: Video, power, data and software updatesFeaturesDisplay Size: 5 inchDisplay Resolution: Full 1920 x 1080Display Type: LCD capacitive touchscreenDisplay Brightness: 1500 nitsFrame Rates: Up to 60fpsTally: Rear facing LED tally lightAccelerometer: Automatically rotates image when monitor mounted upside downControlOn Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menusButton Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functionsFunction Button Presets: FPS: Preset Value, Iris: Preset Value, WB: Preset Value, ISO: Preset Value, Shutter: Preset ValueFunction Button Toggle: Clean Feed, Status Text, Display LUT, Frame Guides, Focus Assist, False Color, Zebra, Grid, Safe Area Guide, Off Speed Rec, Focus Zoom, Focus, Record, Auto White Balance, Color Bars, Playback, False Color + Zebra, OIS, Stream, StillMountingMounting Points1x 1/4-20 bottom mounting point with ARRI locating pin pattern2x M4 bottom mounting points1x 1/4-20 side mounting point with ARRI locating pin pattern2x M4 side mounting points.Mounting BracketsBlackmagic PYXIS Monitor Swivel Mount ‑ included in KitBlackmagic PYXIS Monitor Fixed Mount ‑ included in KitBlackmagic PYXIS Monitor Dovetail Shoe ‑ included in KitCompatible withBlackmagic PYXIS 6KBlackmagic PYXIS 6K PLBlackmagic PYXIS 6K EFBlackmagic URSA Cine 12K LFBlackmagic URSA Cine 17K 65Monitor - in the boxBlackmagic PYXIS MonitorBlackmagic PYXIS Clip On SunshadeWelcome wallet with QR code for software downloadBlackmagic Design Sticker Monitor Kit - in the boxBlackmagic PYXIS MonitorBlackmagic PYXIS Clip On SunshadeBlackmagic PYXIS Monitor Swivel MountBlackmagic PYXIS Monitor Fixed Mount and screwsBlackmagic PYXIS Monitor Dovetail Shoe and screws1x USB-C Viewfinder CableWelcome wallet with QR code for software downloadBlackmagic Design Sticker EVF kit - in the boxBlackmagic PYXIS MonitorBlackmagic PYXIS Clip On SunshadeBlackmagic PYXIS Monitor Swivel MountBlackmagic PYXIS Monitor Fixed Mount and screwsBlackmagic PYXIS Monitor Dovetail Shoe and screwsBlackmagic URSA Cine EVF Bracket rod mountBlackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod2x short 15mm carbon fibre rods1x USB-C viewfinder cableWelcome wallet with QR code for software downloadBlackmagic Design Sticker

8Sinn Top Plate for Blackmagic Pyxis 6K + Top Handle Pro SKU: 8-TPBMP+8-THP-B Our aluminum top plate is securely fastened to your camera using four screws. This ensures a solid connection, minimizing any movement and providing a stable platform for your gear. The product is equipped with multiple 1/4” mounting points, which allows you to attach a variety of accessories such as lights, microphones, and monitors, enhancing the functionality of your setup. For heavier accessories, the plate includes 3/8" threaded openings with Arri locating points on both the top and sides. These points ensure a secure, anti-twist connection for maintaining stability. The built-in NATO rail with safety pins provides quick and secure mounting of accessories. Made from high-quality aluminum, this top plate offers an excellent balance of strength and weight.The top handle offers front-back and left-right adjustment, allowing you to position it exactly where you need it for the best handling and balance of your camera rig. Like the top plate, the handle includes 1/4" and 3/8" mounting points. Additionally, the handle is equipped with two cold shoe mounts and it can hold extra accessories such as lights and microphones, providing even more customization options for your setup. The camera grip connects with the safety NATO rail built into the top plate, ensuring that you can quickly attach or detach it as needed. Key features - plate4 points of attachment1/4” mounting points3/8" threaded openings with Arri locating pointsBuilt-in NATO railAluminum madeKey features - handleFront/back, left/right adjustment1/4"; 3/8" mounting points2 x cold shoe mountsNATO standard quick-release
