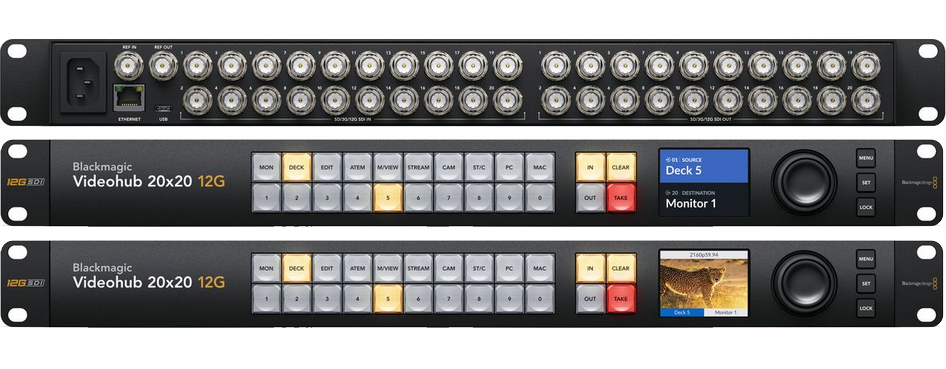

Blackmagic Videohub 20x20 12G

Blackmagic Videohub Smart Control Pro SKU: VHUB/WSC/PRO 40 button control panel for XY or single destination control. Supports ethernet. When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection! Blackmagic Videohub Smart Control Pro is a compact 1 RU panel that controls your Videohub over your existing ethernet network. It features 40 customizable buttons that can be set to any cross point so you can quickly switch video sources using fast, direct “cut-bus” style routing. Each panel can be setup for 1, 2, or more destinations, so you can control video routing to multiple decks and monitors from one panel!

Blackmagic Videohub 40x40 12G SKU: VHUBSMAS12G4040 All models of Blackmagic Videohub 12G feature advanced 12G-SDI connections which are multi rate so they support any SD, HD and Ultra HD video format up to 2160p60 and will connect to any SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI equipment. Plus Blackmagic Videohub 12G also supports routing any video standard on the same router at the same time. That means on the 40x40 model you could route up to 40 different video standards at the same time! 12G-SDI gives you high frame rate Ultra HD via a single BNC connection that also plugs into all of your regular HD equipment! With 12G-SDI you get a future proof technology that connects to the equipment you have now and in the future! Blackmagic Videohub 40x40 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 40 12G-SDI inputs and 40 12G-SDI outputs, redundant power and reference connections in two rack units size. The large full HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60. Connections SDI Video Inputs: 40SDI Video Outputs: 40SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.Video Input Re-Sync: NoneSDI Reclocking: On all SDI outputs.Reference Inputs: Tri-Sync or Black Burst.Reference Outputs: Reference terminating loop output.Ethernet: Supports 10/100/1000 BASE‑T.Computer Interface: USB‑C

Blackmagic Videohub Master Control Pro SKU: VHUB/WMSTRCRL/PRO Spin knob and direct entry control panel with LCD status. Supports ethernet. When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection! For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Blackmagic Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels! Customize your control options for any installation! Videohub lets you create your own custom router control with the free software developer kit. As a developer, you can download the Videohub SDK for sample code and control protocol information. You’ll get all the information you need to create your own hardware or software remote control. You can also use the RS-422 protocol to control Videohub as a slave device for router crosspoint switching, or even use telnet instructions from your computer.

Blackmagic Videohub 10x10 12G SKU: VHUBSMAS12G1010 The new Blackmagic Videohub 12G-SDI video routers let you connect all your equipment without creating a complex cable mess! Blackmagic Videohub routers support 12G-SDI so they allow you to connect and route any combination of SD, HD and Ultra HD on the same router at the same time. Plus they have zero latency so are perfect for live production and broadcast! The design features an elegant front panel with LCD for labels and even live video, shortcut buttons and a machined metal spin knob with soft rubber coating that lets you browse video sources. Ethernet is also included so you can remotely control the router using a range of external hardware or software control panels. Blackmagic Videohub 10x10 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 10 12G-SDI inputs and 10 12G-SDI outputs plus reference connections in a one rack unit size. The front panel LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60. Connections SDI Video Inputs: 10SDI Video Outputs: 10SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.Video Input Re-Sync: NoneSDI Reclocking: On all SDI outputs.Reference Inputs: Tri-Sync or Black Burst.Reference Outputs: Reference terminating loop output.Ethernet: Supports 10/100/1000 BASE‑TComputer Interface: USB‑C
