Blackmagic Videohub 80x80 12G
Blackmagic Videohub 80x80 12G
SKU: VHUBSMAS12G8080
The new Blackmagic Videohub 12G-SDI video routers let you connect all your equipment without creating a complex cable mess! Blackmagic Videohub routers support 12G-SDI so they allow you to connect and route any combination of SD, HD and Ultra HD on the same router at the same time. Plus they have zero latency so are perfect for live production and broadcast!

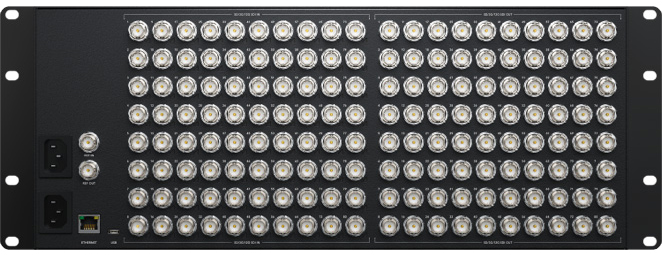

Blackmagic Videohub 80x80 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. The 80 12G-SDI inputs feature LEDs on each BNC that indicate an SDI signal, plus there are 80 12G-SDI outputs, redundant power and reference connections in a stylish four rack unit design. The large full HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Connections
- SDI Video Inputs: 80
- SDI Video Outputs: 80
- SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
- Video Input Re-Sync: None
- SDI Reclocking: On all SDI outputs
- Reference Inputs: Tri-Sync or Black Burst
- Reference Outputs: Reference terminating loop output
- Ethernet: Supports 10/100/1000 BASE‑T
- Computer Interface: USB-C
