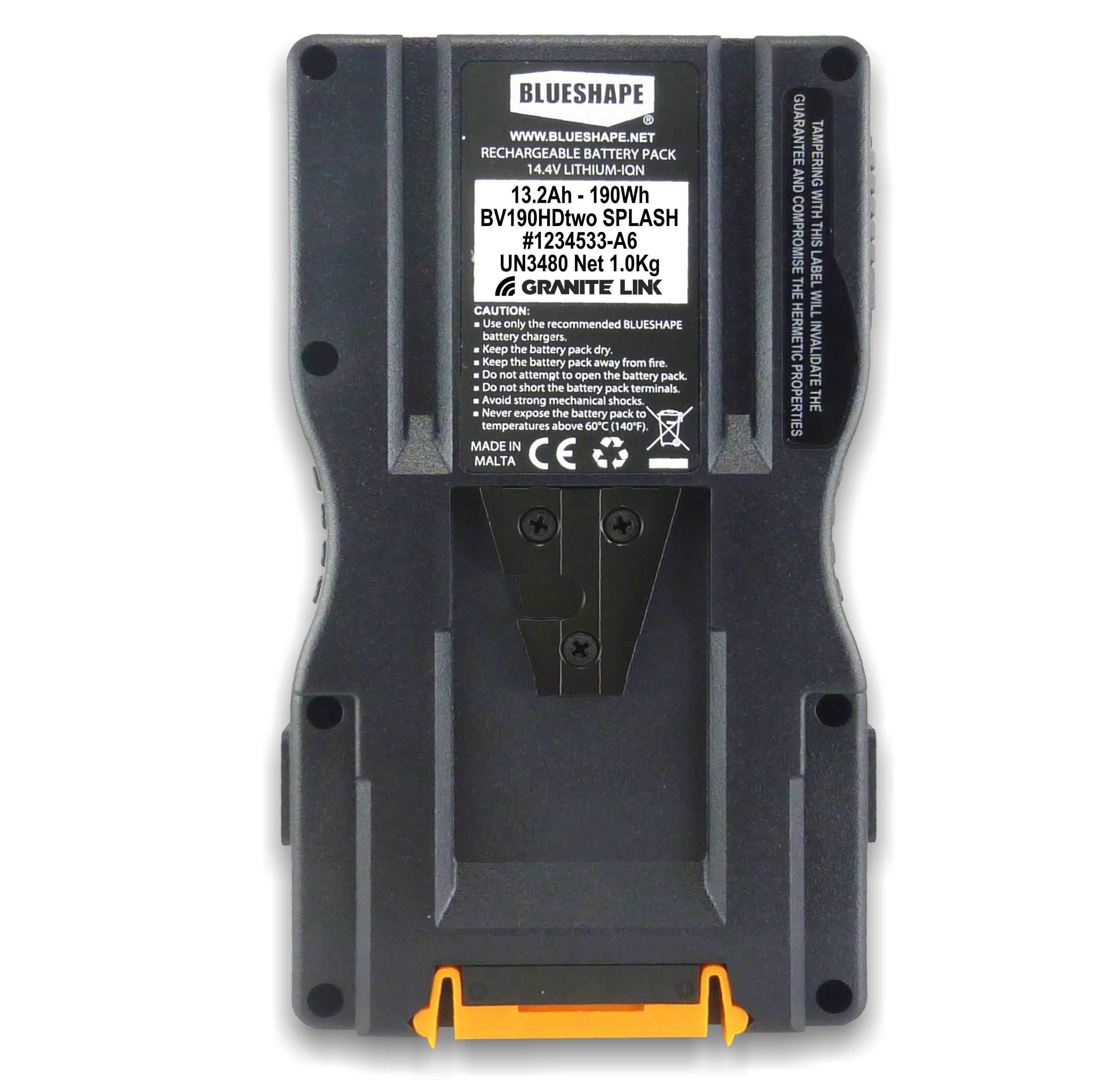

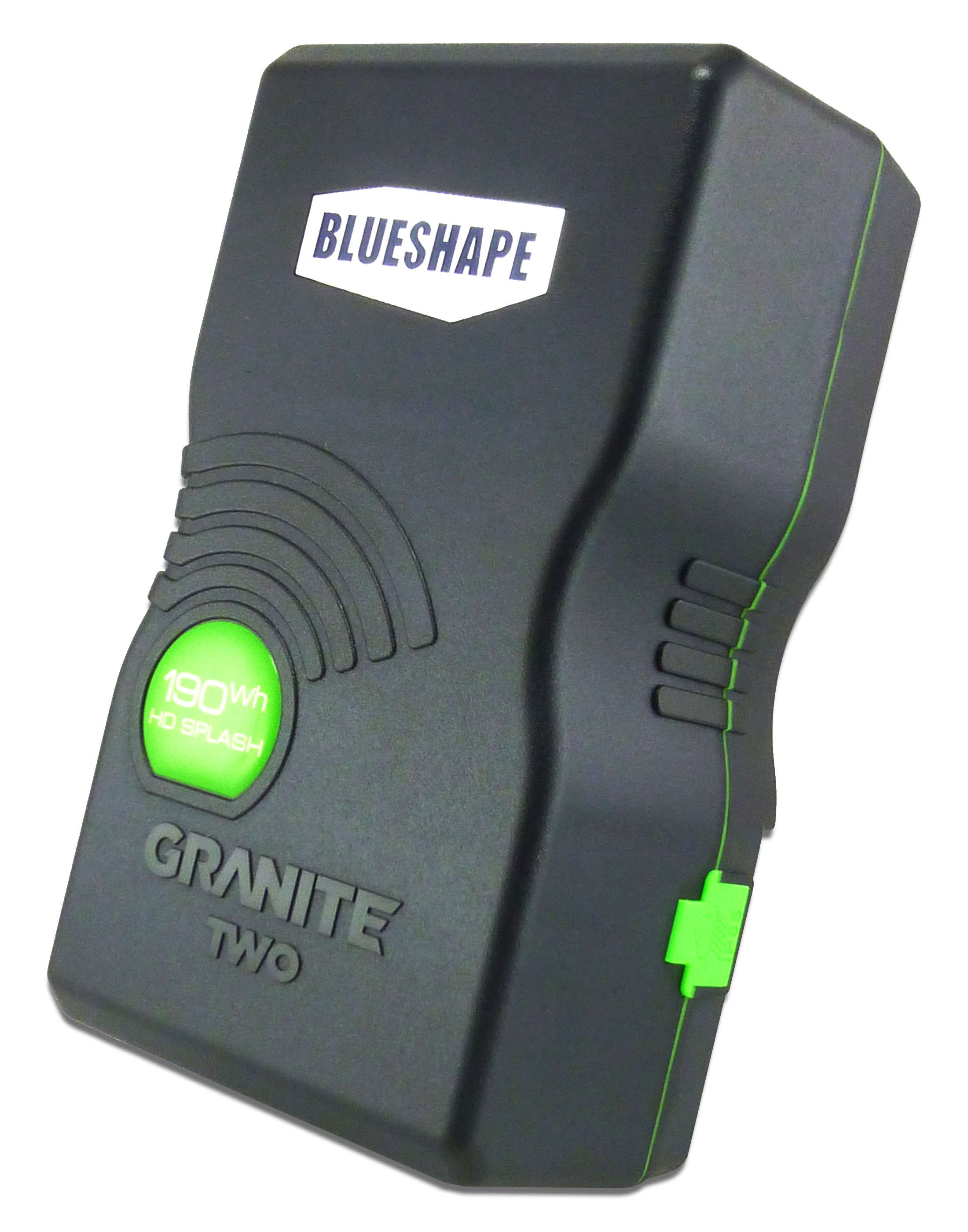

Blueshape BV190HD Granite 2 Splash Battery

Blueshape BV100HD Splash Medium sized Hi-Rate discharge pack, Wi-Fi enabled, with a rock solid construction incorporating 2x D-Tap connectors enabled for charging. Incorporating the same features of the corresponding GRANITE model, the BV100HD SPLASH features a special design for achieving an IP65 rating, meaning that the battery resists water ingress from splashes and water jets such as from exposure to rain. While the battery is one of the most powerful V-Mount batteries available on the market today, capable of operating continuously in discharge at up to 12A (approx. 175W), the Blueshape SPLASH construction makes it ideal to power battery operated light panels and to endure tougher outdoor shooting conditions on any location. Features: GRANITE LINK, Wi-Fi enabled remote control 2 Auxiliary D-Taps (nominal 14.8V) provide max 5A with independent overload protection. Left hand side D-Tap with independent overload protection. Right hand side D-Tap is direct and can be used as a charging inlet GRANITE construction, robust, shockproof and IP54 certified Enhanced contact protection for safer air transport Nominal Voltage: 14.8V Voltage range: 10.8V ~ 16.8V Nominal Capacity: 6.2Ah, 94Wh Max. discharge current: 12A Medium size and lightweight Size: 171 mm x 95 mm x 53mm Weight: 1.19Kg Advanced modular design The lithium ion cells are secured inside the pack in a carefully designed and reinforced modular cage. All the metal interconnections and the electronic BMS board are integrated with the cells making a single core. No wiring is used. The metal, cell-to-cell tabs have been thickened using lower resistance alloy for improved welding strength and superior electrical conductivity. Rock Solid Construction The external V-Bracket is screwed to the inner core through the bottom case, by means of a reinforcement metal plate. The outer battery pack shells wrap the inner core and clamp it with 8 perimeter screws. A coloured rubber gasket is sandwiched in the middle between the outer shells to improve water resistivity apart from giving the battery, a smarter look. Superior resin The outer shells are made of 4mm thick automative grade plastic resin featuring superb toughness and impact resistance even at low temperatures. SPLASH: IP65 Certified The superior GRANITE construction and the improved insulations features an IP65 rating that guarantee protection and safety of operations against prolonged water splashes and jets exposure making the SPLASH series ideal for outdoor usage under rain. Improved overall pack longevity The battery system as a whole will benefit from this robustness because of the reduced risk of internal disconnection or malfunction caused by unexpected crashes thus extending the overall pack life expectancy. As a result all these significant technical improvements BLUESHAPE GRANITE battery packs are virtually indestructible. We have subjected them to intensive testing and we can safely say that such batteries can withstand several drops from heights up to 2 metres without suffering internal and external critical damages that render them unusable.

SWIT PB-R290S+ SWIT PB-R290S+ is a 290Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications. PB-R290S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off. Consists of 24pcs high class 18650 battery cells, and reaches 290Wh / 20.1Ah high capacity. Can run approx 11 hours for normal ENG cameras, and approx 3.5 hours for ARRI ALEXA. PB-R290S+ provides at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A. PB-R290S+ supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 290Wh PB-R290S+ battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours. PB-R290S+ has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder. Technical data Nominal Voltage: 14.4VCapacity: 290Wh/20.1AhConstant load: 250W / 20AMax charging current: 6A fast chargingIP class: IP54Mount Type: V-mountCharging Temperature: 0-40°CDischarging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)Net weight: Approx 1.51kgDimensions: 162 x 101 x 69mm

Blueshape BV270HD Splash Blueshape BV270HD Granite TWO Splash Battery is a big sized Hi-Rate discharge GRANITE SPLASH battery pack, IP65 rated. Blueshape GRANITE batteries are quite powerful. Audio-video equipment can draw up to 12 amps, between the main battery output and the 2 x D-taps on the sides. In addition to outputting 14.4 volts of power, either D-tap can serve to charge the battery with an optional D-tap charger. As an extra measure of protection, the D-taps have rubber covers that help maintain the IP65 resistance rating against moisture and dust ingress BV270HD SPLASH features a special design for achieving an IP65 rating, meaning that the battery resists water ingress from splashes and water jets such as from exposure to rain. Specifications: Nominal Voltage: 14.8VVoltage range: 10.8V ~ 16.8VNominal Capacity: 18.0Ah, 266WhMax. discharge current: 12AGRANITE construction, robust, shockproof and IP54 certifiedSPLASH series: IP65 rated, designed for outdoor use under continuous rainSize: 171 mm x 95 mm x 69mmWeight: 1.62KgNEW: enhanced contact protection for safer air transport

SWIT PB-R160S+ SWIT PB-R160S+ is a 160Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications. Features IP54 water/dust proof Strong 1.5m drop off proof14.4V, 160Wh capacity200W/16A constant high load6A fast charging support8-LED digital power indicatorsSONY/RED viewfinder power info displayD-tap power output socketV-mount connectionMultiple circuit protections Technical data Nominal Voltage: 14.4VCapacity: 160Wh/11.1AhConstant load: 200W / 16AMax charging current: 6A fast chargingIP class: IP54Mount Type: V-mountCharging Temperature: 0-40°CDischarging Temperature: -20°C-50°C（Capacity and Max Load may decrease when operating below 0°）Net weight: Approx 1.08kgDimensions: 162 x 101 x 53mm
