CamDo BlinkX Time Lapse Controller for GoPro
Free shipping
Product number:
SW20753

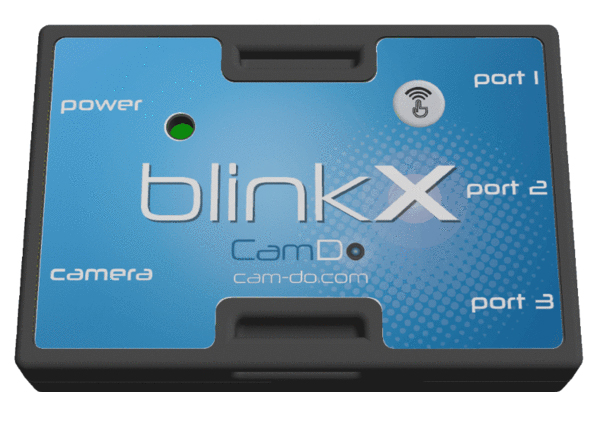

CamDo BlinkX
Use CamDo BlinkX to achieve long term time lapse and/or motion detection for your next project. Just plug it into your GoPro HERO5, HERO5 Session, HERO6, HERO7, HERO8 and use the BlinkX app to connect and configure up to 9 separate time lapse schedules using a smartphone, tablet, computer, or any WiFi enabled device which has a web browser (no cell service or internet connection required).
A WiFi network with internet access is only required if you would like to use our optional Blink Email feature to provide daily status updates straight to your inbox.
If you are looking at a long term time lapse you may be interested in the general time lapse and construction time lapse packs which incorporate an external solar system for long term deployment or where finding a power supply is difficult or expensive.
Here are all the new advantages of BlinkX over Blink
- Compatible with GoPro HERO5, HERO5 Session, HERO6, HERO7, HERO8
- Camera WiFi Control (for manual download of data or aligning setup through GoPro app)
- Time and Date Scheduling (Allows camera to be set up before a project starts without wasting images/power)
- In-built WiFi enable button (no longer need a wired remote trigger)
- On board Real Time Clock (Holds date/time if left unpowered for up to 2 years)
- Lower Power Consumption (~10x power savings in between schedules)
- Improved user interface (web based setup on your device)
- Simplified powering
- Universal strap mount (allows for mounting in multiple ways)
Accessory Items
Free shipping
CamDo DryX Weatherproof Enclosure
€800.00*
gross: €952.00
DryX Weatherproof Enclosure:
no battery
CamDo DryX
The CamDo DryX enclosure is the same enclosure that ships with our SolarX Enclosure Power System includes a battery pack (44 Wh Battery) but does not iclude solar panel. Our outdoor enclosures are fitted with a sturdy aluminum mounting bracket that contains multiple 1/4"-20 threaded holes on the top, back, and bottom for use with standard tripod screws. It also has 2 slots at the back for using straps to attach the enclosure to a pole.
CamDo offers a sturdy swivel mount for easy mounting to a pole or flat surface
Inside the enclosure contains an aluminum bracket designed to tightly fit the GoPro HERO3, HERO4, HERO5 Black, and HERO5 Session cameras with a CamDo time lapse camera controller such as BlinkX. The interior has space for extra batteries or other accessories. One accessory that can be used with BlinkX or Blink is our X-Band Motion Sensor that can detect motion through the walls of the enclosure without requiring extra opening for the signal to pass through. The enclosure is fitted with a standard 67mm filter adapter and a neutral density UV optical glass “digital filter” is included. You can replace the filter with your filter of choice.
These enclosures are not submersible. The degree of water resistance depends on the mounting method and options selected. They are suitable for general outdoor use.
Enclosure Specifications
Material: NK-7 Polypropylene ResinExterior Dimensions: 231 mm x 173 mm x 97 mmInterior Dimensions: 188 mm x 124 mm x 79 mmPadlock holes: 2 at top to secure the contents.Mounts: Aluminum bracket with tripod holes (¼"-20) on the top (2x 1.75"spacing), back (3x 2.75"spacing), and bottom (1x centered), as well as two 1.1" slots (2.5"spacing) at back for strapping to a post.
Free shipping
CamDo PowerUp Construction Time Lapse solution
€1,500.00*
gross: €1,785.00
CamDo PowerUp
CamDo PowerUp includes: UpBlink, DryX, Bracket, Cables
ATTENTION: NO CAMERA (GoPro/ Sony) included
Free shipping

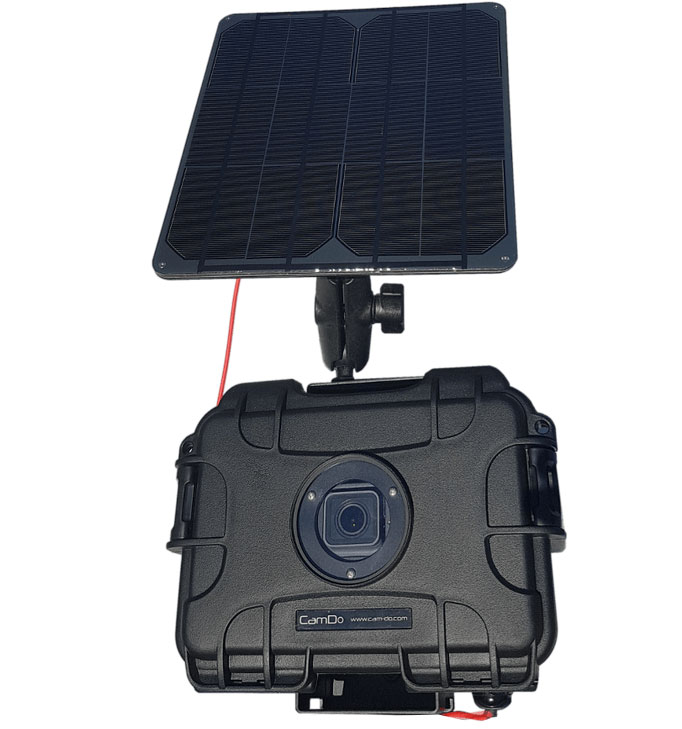

CamDo SolarX solar power enclosure for GoPro / Sony
€1,390.00*
gross: €1,654.10
UpBlink Intervalometer Options:
GoPro HERO5 - HERO8
CamDo SolarX
CamDo outdoor enclosure is fitted with a sturdy aluminum mounting bracket that contains multiple1/4"-20 threaded holes on the top, back, and bottom for use with standard tripod screws. It also has 2 slots at the back for using straps to attach the enclosure to a pole. The CamDo solar panel is removable and attached to the top of the enclosure using a dual ball socket arm so it can be positioned for optimum sun exposure. The solar panel charges the included Lithium Polymer battery which outputs 5 volts to power the camera or other accessories in a weatherproof enclosure.
The enclosures are designed to be crushproof and dust tight. Inside the weather resistant enclosure contains an aluminum bracket designed to hold the GoPro HERO5 -HERO8 / Sony DSC-RX0 and CamDo UpBlink Time Lapse Controller. It is possible to access the SD card, or USB connector without removing the camera. If the camera needs to be replaced, the fit is extraordinarily tight, guaranteeing that the camera will be in the exact same position as before so there is no disruption to your time lapse footage positioning. The interior has space for extra batteries or other accessories such as our Motion Detector. The enclosure is fitted with a standard 67mm filter adapter and a neutral density UV optical glass “digital filter” is included. You can replace the filter with your filter of choice.
Solar Panel Specifications
Dimensions: 220 x 255 x 5mm Weight: 360g Peak Current: 1500mAPeak Power: 9.0WCell Type: MonocrystallineOpen Circuit Voltage: 7.0VPeak Voltage: 6.0VCell Efficiency: 19%
V50 Battery Specifications
Capacity: 12,000 mAH, 44 WhOutput: 5V 2A and 5 V, 1A (two outputs)Input: 5-6 V, 2000 mAMaximum Output Power: 15 Watts (total)Weight: 312 gDimensions: 104 x 107 x 19 mmAlways On Mode: does not automatically shutdown when inactive.Protection: Overcharge, Over discharge, Over Current, Short CircuitLED indicators: light sequentially when charging to indicate the current capacity
DryX Enclosure Specifications
Material: NK-7 Polypropylene ResinExterior Dimensions: 231 x 173 x 97 mmInterior Dimensions: 188 x 124 x 79 mmPadlock holes: 2 at top to secure the contents.Mounts: Aluminum bracket with tripod holes (1/4"-20) on the top, back, and bottom, as well as two 1.1" slots at back for strapping to a post.

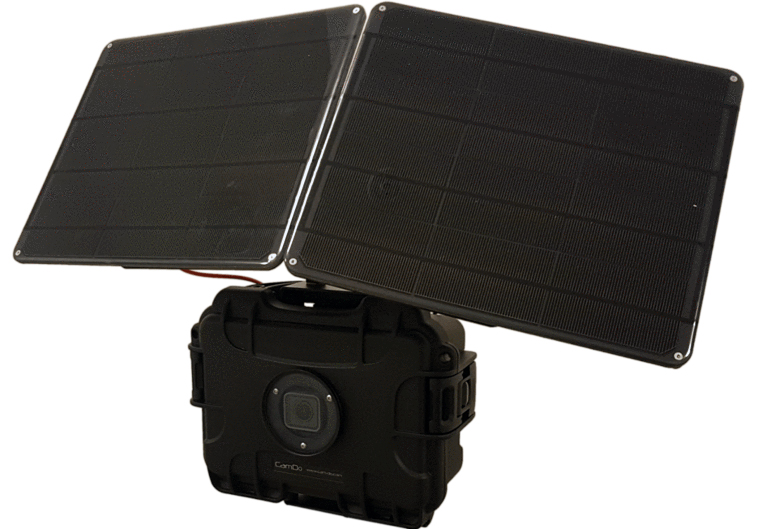

CamDo SolarX Solar Upgrade Kit
€500.00*
gross: €595.00
CamDo SolarX Solar Upgrade Kit
The CamDo Solar Kit adds an extra 9W solar panel to give you a total of 18W of power (2 x 9W panels) when using SolarX. It comes with all necessary attachments (ball arm, socket) and wiring to get up and running in no time with your existing CamDo SolarX.
The SolarX outdoor enclosure is fitted with a sturdy aluminum mounting bracket that contains multiple 1/4"-20 threaded holes on the top, back, and bottom for use with standard tripod screws. Each solar panel is simply attached to this bracket using the included 1/4"-20 ball mount and associated socket arm so the panel can be positioned for optimum sun exposure.
The 9W Solar Panel Kit includes a "(2Fx1M) Y-cable" that can be used to connect two solar panels to simultaneously charge a single V44 battery (included with SolarX). Alternatively, our outdoor housings can fit two V44 battery packs that can each be charged from a separate solar panel. So if one panel gets dirty or covered by shadow, the second panel will continue to work hard for your project.
9 Watt Solar Panel
Dimensions: 220 mm x 255 mm x 5mm Weight: 360g (12.75oz)Peak Current: 1500mAPeak Power: 9.0WCell Type: MonocrystallineOpen Circuit Voltage: 7.0VPeak Voltage: 6.0VCell Efficiency: 19%
What's in the box
1 x 9W solar panelCabling to connect two solar panels simultaneously (2Fx1M Y-cable)Ball mountBall arm
Similar products
Free shipping
CamDo Blink Time Lapse Controller for GoPro HERO4
€320.00*
gross: €380.80
CamDo Blink
CamDo Blink Time Lapse Controller is CamDo’s latest GoPro time lapse and motion detection controller for HERO4 cameras. It is a low power, WiFi enabled GoPro accessory that unlocks the full potential of the GoPro camera. Use CamDo Blink to achieve long term time lapse or motion detection for your next project. Just plug it into your GoPro and use the Blink app to connect and configure up to 10 separate time lapse schedules using a smartphone, tablet, computer, or any WiFi enabled device which has a web browser (no cell service or internet connection required).
Quick & Easy Set-Up
Get Blink up and running in less than 2 minutes. While typically used with our Outdoor Enclosures to also house extra battery packs, Blink will also fit inside the extended backdoors included in the GoPro Back Door Kit that are designed to fit GoPro BacPac accessories.
Simple Configuration for Complete Control
Intuitive web interface makes scheduling Blink a breeze. Customize a daily or weekly schedule to program up to 10 separate schedules for either time lapse or motion detection in photo, day, night, burst or video modes.
Low Power Consumption
Blink powers your GoPro camera down between intervals, increasing the battery life significantly and giving you the ability to undertake long term time lapse sequences. Blink is powered from the GoPro battery and does not require a separate power source.
Email Home with Blink Email
Blink can e-mail you every day to confirm it is still operating - how many shots were taken since the last e-mail, what is the battery status, what is the SD card status - everything to give you peace of mind your system is working.
No Camera Firmware Update Required
Blink doesn’t require a complicated camera firmware update process. Just ensure your HERO3+ or HERO4 camera is up to date with the latest firmware from the GoPro website or through the GoPro App for iOS and Android.
Motion Detection
Motion detection schedules can be programmed to only be active only during certain times of day to avoid capturing unneeded footage and conserve power
Blink Overview
1. USB: Blink can be powered from the GoPro camera's battery through the HERO Port and does not need to be powered separately. Blink's USB interface is used for firmware updates2. LED: This provides feedback to the user during operation, as well as for firmware updates3. Port 1: This input accepts the Wired Remote or other custom trigger. The Wired Remote is used to turn WiFi On/Off, as well as provide LED feedback during operation.4. Port 2: The X-Band Motion Detector accessory plugs directly into this input. Support for other accessories such as a PIR sensor will be added in the future. Do not connect anything other than the motion detector cable into this input!In the box
A. CamDo Blink B. Wired Remote C. USB OTG Cable (for future updates) D. X-Band Motion Detector (optional purchase)
Free shipping
CamDo UpBlink Time Lapse Controller for GoPro / Sony
€550.00*
gross: €654.50
CamDo UpBlink
SKU: 180278
CamDo UpBlink is a time Lapse controller for GoPro HERO5 -HERO8 / Sony DSC-RX0 with image Upload to CloudX Pro. Web-app, low power & WiFi brings: Easy to use, 4K time lapse for less!
Use UpBlink to achieve long term time lapse and/or motion detection for your next project. Just plug it into your GoPro and use the UpBlink app to connect and configure separate schedules (including email scheduling) using a smartphone, tablet, computer, or any WiFi enabled device which has a web browser (app connection is directly with UpBlink so no cell service or internet connection required).
Features
Compatible with GoPro HERO5 BlackCamera WiFi Control Time and Date Scheduling (Allows camera to be set up before a project starts without consuming power to capture unneeded footage or adjusting interval times between set dates)On board Real Time Clock (Holds date/time if left unpowered for up to 2 years)Improved user interface (web based setup on your device)Universal strap mount allows for mounting in multiple ways
Simple Configuration for Complete Control
Intuitive web interface makes scheduling UpBlink a breeze.Customize a daily or weekly schedule to program up to 4 separate schedules for time lapse using photo, day, night, burst or video modes.Set flexible cloud upload schedules
powerLow Power Consumption
UpBlink powers your GoPro camera down between intervals, increasing the battery life significantly and giving you the ability to undertake long term time lapse sequences.
emailCloudX Image Upload and Email Notifications
Using CloudX, receive an e-mail every day to confirm your system is still operating - how many shots were taken since the last e-mail, what is the battery status, what is the SD card status - everything to give you peace of mind your system is working. Set a cloud upload scheduleUpload all images or flexible upload options to conserve bandwidth including: Lower resolution uploads / Latest image only
photo_cameraNo Camera Firmware Update Required
UpBlink doesn’t require any special camera firmware update. Just ensure your HERO5 Black camera is up to date with the latest firmware from the GoPro website or through the GoPro App for iOS and Android.
settings_remoteMotion Detection (coming soon)
Motion detection schedules can be programmed to only be active only during certain times of day to avoid capturing unneeded footage and conserve power.Motion detection can be used independently and simultaneously with time lapse schedules.Motion detectors compatible with UpBlink. Please contact CamDo to confirm when this feature will be available.
date_rangeLong Term Time Lapse
Couple UpBlink with CAMDO SolarX or CAMDO DryX for long term time lapse solutions.
