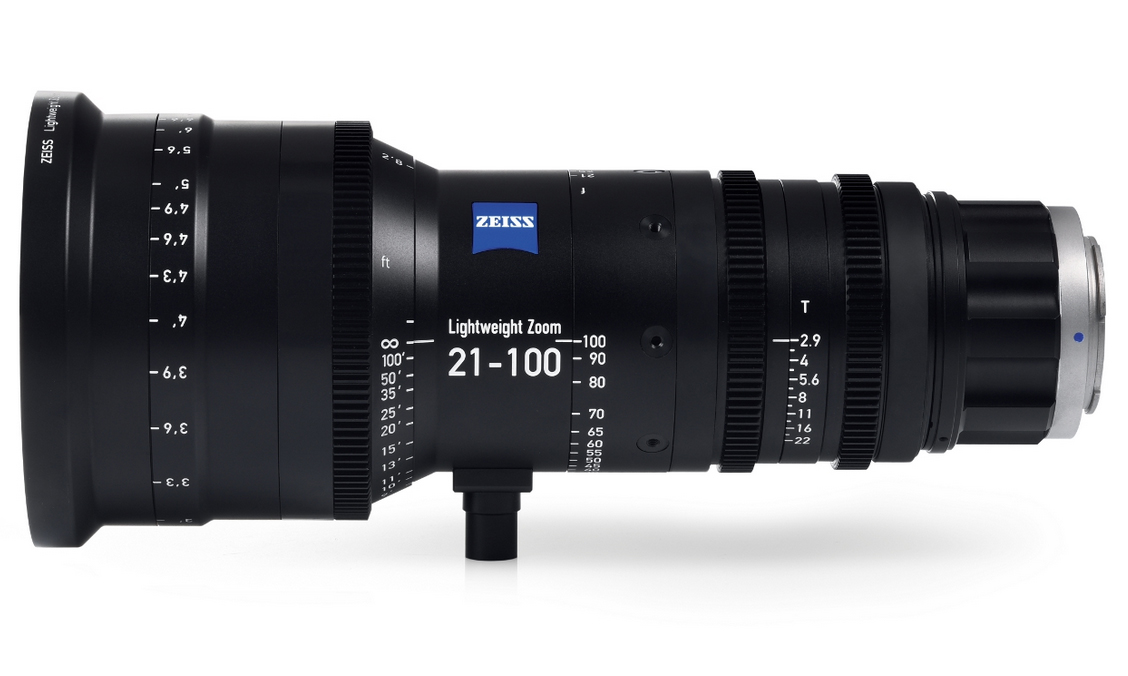

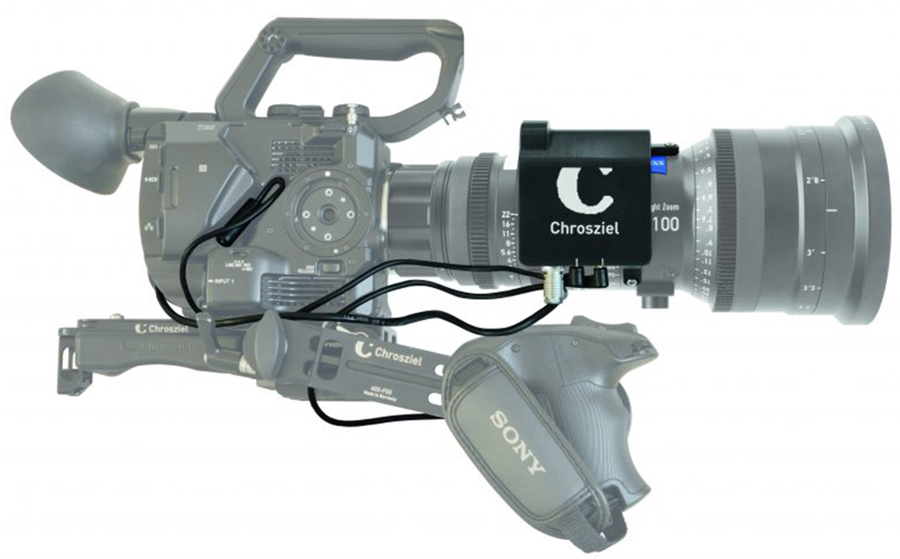

Chrosziel ZOOM SERVO DRIVE FOR ZEISS LWZ3 21-100 MM

Chrosziel Zoomer SKU: CDM-UNI-Z2 The Zoomer is a compact and universal zoom motor that can be pivoted to almost any lens by simply mounting it on a 15mm rod. The universal motor unit CDM-UNI-Z2 fits seamlessly into the operating functions of the Sony cameras of the FX9 / FX6 / FS7 / FS5 series. The servo drive is controlled via the zoom rocker on the handle. The motor control can be addressed via Sony's camera-specific protocol and also works independently of the camera signals when a LANC zoom rocker is plugged directly into the servo. Due to the included Chrosziel Flexi toothed ring (#206-30), the Zoomer can be used with almost any zoom lens even without toothing. The multi-function handgrip, which in addition to the recording function and a zoom rocker also provide control over the camera menu and other freely selectable functions, are extremely popular on current video cameras with large sensors and are indispensable for effective operation. The Chrosziel Universal Zoom Servo Drive now allows optimal use of all manual zoom lenses together with the multi-function handgrip. For this purpose, the Zoomer is slid onto a 15mm rod and swiveled onto the zoom lens. Two plug-in cables establish the connection with the camera. One cable is used for the power supply from the camera battery, the second for the connection to the control commands between the handle and the camera. When using a standard LANC zoom rocker or handle with the Sony PXW-FS5, PXW-FS7 and PXW-FS7II, the servo is connected between the handle and the camera via an input and an output jack to receive all zoom control signals. For setup with the Sony PXW-FX9 camera, a Y-cable is used that accepts the Sony multi-connector and connects to both the input jack of the Zoomer and the input jack of the camera. For the Sony ILME-FX6 camera, a Y-cable is used and connects the 3.5mm connector of the Sony handgrip, input jack of the Universal Zoom Servo Drive, and the Sony camera.  FEATURES Universal zoom motorControlled via Sony and LANC handgripCamera control signals forwarded Technical data Power supply 10-30V (Lemo compatible 0B 5-pin)2.5mm socket (control command In)3.5mm socket (control command In&Out)USB Type min A-B (firmware updates)Torque 0.5NmPower consumption max. approx. 350mAh @ 12V IN THE BOX 1x CDM-UNI-Z2 Digital motor unit1x LANC cable1x LANC extension cable1x MN-AB-A90 (power supply cable 12 Volt A/B D-Tap – angled 90° rotated 0B 5pin) 1x 206-30 Flexi Gear Ring (Ø 60-120mm)1x Gear Drive, mod. 0.8 (Ø 40mm)1x CAB-FX9 for Sony PXW-FX9 compatibility1x CAB-FX6 for Sony PXW-FX6 compatibilityUSB Mini Adapter

Chrosziel ZOOM SERVO DRIVE FOR FUJINON XK LENS SKU: CDM-XK-Z2 Developed for the Fujinon XK6x20 20-120 mm zoom lens the CDM-XK-Z enables ways of creativity that may be impossible just by zooming manually. To simplify the operator’s workflow the zoom servo drive is directly mounted onto the lens by two captive screws. The weight of the Chrosziel CDM-XK-Z including digital motor, gear, PCB with CPU, screws and cabling is 0.44 lbs. (197 gram). With the zoom servo drive Chrosziel addresses camera operators who are working in the broadcast and documentary sector looking for a reasonably priced zoom servo drive. All camera control signals forwarded Control commands (e.g. menu / user buttons / focus magnification / camera run & stop) are immediately looped through to the camera via the LANC protocol. By using a Sony PXW-FS5 or a Sony PXW-FS7 camera with a SWIT battery a D-Tap to a (straight or angled) Lemo compatible 5-Pin power cable is used (Chrosziel order numbers: MN-AB-A with angled Lemo compatible socket / MN-AB with straight Lemo compatible socket). The two Jack-Jack cables are forwarding the control commands from the hand grip. If e.g. a Panasonic Varicam, Sony PMW-F5 or Sony PMW-F55 are used a combined cable with power and start / stop is required, like a Hirose 4-Pin to a (straight or angled) Lemo compatible 5-Pin cable (Chrosziel order numbers: F55-A2-PCAM-A with angled Lemo socket / F55-A2-PCAM with straight Lemo compatible socket). Also, the two Jack-Jack cables are forwarding the control commands from the hand grip. Also, Chrosziel offers a variety of power cables with straight and angled plugs for all types of camera power out sockets and batteries including camera run / stop functionality. Features SINGLE UNIT MOUNTED ONTO LENSTwo captive screws keeping the single servo drive unit permanently fixed onto lens.CONTROLLED VIA SONY FS & LANC HANDGRIPThe Sony FS5 / FS7 handgrip zoom rocker controls directly the servo drive unit. Other zoom rockers with LANC protocol are compatible too, e.g. mounted to handgrip.CAMERA CONTROL SIGNALS FORWARDEDControl signals (e.g. menu / user buttons / focus magnification / camera run & stop) are immediately looped through to the camera.4 ZOOM MODESEB / Documentary, Live / Hardcut, Silent, Direct Mode Zoom modes EB / Documentary ModeDesigned for long and smooth zoom drives with the CDM-LWZ3-Z it offers slow creeping zoom transitions while keeping the motive perfectly framed.Silent ModeTo reduce the sound of the zoom servo drive the maximum speed of its motor is limited to 40 percent making the setup almost inaudible.Live / Hardcut ModeTo catch the best moments, the Live / Hardcut Mode is useful. It uses 80 percent of the maximum speed capacity of the motor offering fast zoom drives but with Soft Ramping.Direct ModeThe Direct Mode finally uses the full speed capacity of the Zoom Servo Drive. The LANC commands are implemented instantaneously without ramping and smooth transitions. Useful for B camera operators catching snaps shots from the concert.
