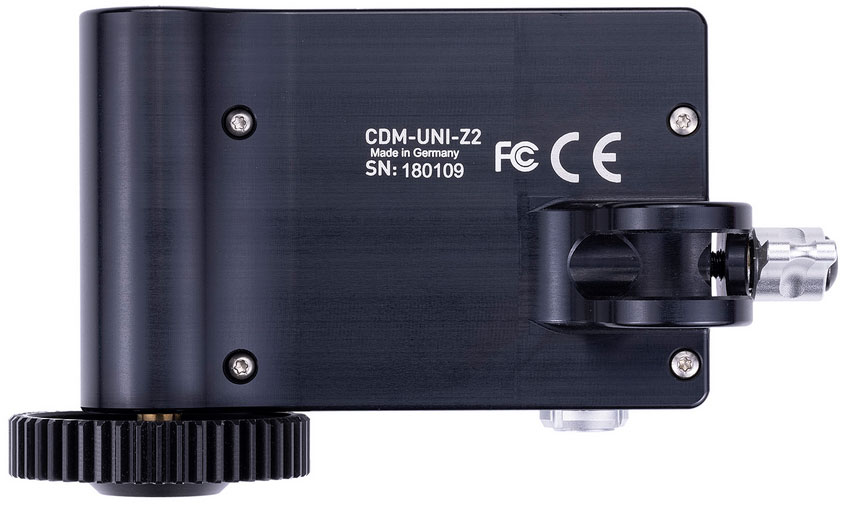

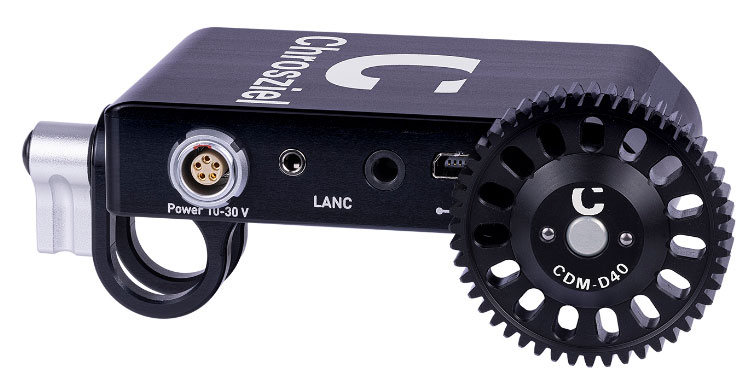

Chrosziel Zoomer Zoom Servo Drive CDM-UNI-Z2

Chrosziel Zoom-Motor Angenieux EZ1-2 SKU: CDM-EZ-Z2 Chrosziel CDM-EZ-Z2 - compact control-unit for Angenieux EZ-1 and Angenieux EZ-2 for controlling zoom. For usage with orig. Sony handgrip (PXW-FS5, PXW-FS7, PXW-FX9) or LANC zoom devices. Incl. 1x digital servo-motor-unit, 1x LANC cable, 1x LANC extension cable, 1x CAB-FX9 Sony Multi cable, 1 x MN-AB-A90 (powercable 12 Volt A/B D-Tap 0B 5pin angled), 1x Allen Key, 1x Mini-USBadapter.

Chrosziel ZOOM SERVO DRIVE FOR FUJINON XK LENS SKU: CDM-XK-Z2 Developed for the Fujinon XK6x20 20-120 mm zoom lens the CDM-XK-Z enables ways of creativity that may be impossible just by zooming manually. To simplify the operator’s workflow the zoom servo drive is directly mounted onto the lens by two captive screws. The weight of the Chrosziel CDM-XK-Z including digital motor, gear, PCB with CPU, screws and cabling is 0.44 lbs. (197 gram). With the zoom servo drive Chrosziel addresses camera operators who are working in the broadcast and documentary sector looking for a reasonably priced zoom servo drive. All camera control signals forwarded Control commands (e.g. menu / user buttons / focus magnification / camera run & stop) are immediately looped through to the camera via the LANC protocol. By using a Sony PXW-FS5 or a Sony PXW-FS7 camera with a SWIT battery a D-Tap to a (straight or angled) Lemo compatible 5-Pin power cable is used (Chrosziel order numbers: MN-AB-A with angled Lemo compatible socket / MN-AB with straight Lemo compatible socket). The two Jack-Jack cables are forwarding the control commands from the hand grip. If e.g. a Panasonic Varicam, Sony PMW-F5 or Sony PMW-F55 are used a combined cable with power and start / stop is required, like a Hirose 4-Pin to a (straight or angled) Lemo compatible 5-Pin cable (Chrosziel order numbers: F55-A2-PCAM-A with angled Lemo socket / F55-A2-PCAM with straight Lemo compatible socket). Also, the two Jack-Jack cables are forwarding the control commands from the hand grip. Also, Chrosziel offers a variety of power cables with straight and angled plugs for all types of camera power out sockets and batteries including camera run / stop functionality. Features SINGLE UNIT MOUNTED ONTO LENSTwo captive screws keeping the single servo drive unit permanently fixed onto lens.CONTROLLED VIA SONY FS & LANC HANDGRIPThe Sony FS5 / FS7 handgrip zoom rocker controls directly the servo drive unit. Other zoom rockers with LANC protocol are compatible too, e.g. mounted to handgrip.CAMERA CONTROL SIGNALS FORWARDEDControl signals (e.g. menu / user buttons / focus magnification / camera run & stop) are immediately looped through to the camera.4 ZOOM MODESEB / Documentary, Live / Hardcut, Silent, Direct Mode Zoom modes EB / Documentary ModeDesigned for long and smooth zoom drives with the CDM-LWZ3-Z it offers slow creeping zoom transitions while keeping the motive perfectly framed.Silent ModeTo reduce the sound of the zoom servo drive the maximum speed of its motor is limited to 40 percent making the setup almost inaudible.Live / Hardcut ModeTo catch the best moments, the Live / Hardcut Mode is useful. It uses 80 percent of the maximum speed capacity of the motor offering fast zoom drives but with Soft Ramping.Direct ModeThe Direct Mode finally uses the full speed capacity of the Zoom Servo Drive. The LANC commands are implemented instantaneously without ramping and smooth transitions. Useful for B camera operators catching snaps shots from the concert.

Chrosziel ZOOM SERVO DRIVE FOR ZEISS LIGHTWEIGHT ZOOM LWZ3 21-100 MM SKU: CDM-LWZ3-Z2 Chrosziel ZOOM SERVO DRIVE CDM-LWZ3-Z2 - compact control-unit for Zeiss Zoom LWZ.3 21-100mm for controlling zoom. For usage with original Sony handgrip (PXW-FS5, PXW-FS7) or LANC zoom devices. The CDM-LWZ3-Z2 is designed for the Zeiss Lightweight Zoom LWZ 21-100 mm/T2.9-3.9 T zoom lens (ZEISS LWZ.3). With the Zoom Servo Drive Chrosziel addresses camera operators working in the broadcast, documentary, and related sectors offering a reasonably priced device enabling creative processes that may be impossible while pulling zoom manually. The Zoom Servo Drive adds only indispensable weight to the setup. It contains one digital servo motor, the gear and a PCB with CPU in one single housing. The mounting of the Zoom Servo Drive makes the operator’s workflow comfortable. Just three captive screws are needed to mount it onto the Zeiss Lightweight Zoom (LWZ.3). Sony handgrip / other LANC handgrips with zoom rockers are working, tooZoom Servo Drive CDM-LWZ.3-Z2 with 4 enhanced zoom modesZeiss Lightweight Zoom LWZ.3 21-100 mm/T2.9-3.9 T zoom lens (ZEISS LWZ.3)Chrosziel Light Weight Support 401-FS5 Features CONTROLLED VIA SONY FS & LANC HANDGRIPControl directly the zoom servo drive via optically de-coupled LANC sockets and Sony FS5 / FS7 handgrip zoom rocker. Other zoom rockers with LANC protocol are compatible too, e.g. mounted to handgrip.CAMERA CONTROL SIGNALS FORWARDEDControl commands are immediately looped through to the camera (e.g. menu / user buttons / focus magnification / camera run & stop).SINGLE UNIT MOUNTED ONTO LENSThree captive screws keeping the single servo drive unit permanently fixed onto lens.4 ENHANCED ZOOM MODESEB / Documentary, Live / Hardcut, Silent, and Direct Mode In the box 1x digital servo-motor-unit1x LANC cable1x LANC extension cable1 x MN-AB (powercable 12 Volt A/B D-Tap 0B 5pin)1x Allen Key1x Mini-USB-adapter

Chrosziel Digital Motor CDM-100M for Freefly MoVI Pro Gimbal Chrosziel Digital Motor CDM-100M with connector for Freefly MoVI Pro Gimbal Camera Stabilizer, 24V operating voltage, with cable 400mm length and Molex Micro-Fit 3 6pin connector plug, incl.EU15-19 Universal Rod Clamp for Ø 15/19mmCDM-D40 Gear Drive, mod. 0.8, Ø 40mmCDM-D60 Gear Drive, mod. 0.8, Ø 60mm

Chrosziel CDM-MK-Z2 Lens Motorization MK-Zoom is especially designed for Fujinon MK 18-55mm T2.9 & Fujinon MK 50-130mm T2.9. The mounting of the Chrosziel CDM-MK-Z is very comfortable. Just screw the two screws into the threads at the Fujinon lens. After that, connect the D-Tap power cable with the appropriate camera port and the two Jack cables with the handgrip and the camera. Done. The slighly rounded CDM-MK-Z housing fits perfectly with the Fujinon lens. The gear meshes exactly with the zoom gear ring of the lens. The integrated PCB with CPU of the zoom motor sets instantaneously control commands that come from a SONY or any other LANC-compatible handle. Features All components fit in one housingNo need for additional accessories – other LANC equipment is supported as wellTwo screws keeping the servo unit permanently fixed to the lensControl commands are immediately looped through to the camera (e.g. menu / user buttons) In the box Servo Device Unit1 x D-Tap power cable1 x 2,5 mm Jack-Jack cable1 x 2,5 mm Jack Extension Cable2 x mounting screws

Chrosziel CDM-PREM-FIZ The Chrosziel CDM-PREM-FIZ Full Servo Drive Unit was developed exclusively with all three Fujinon Premista Lenses and is field installable. This compact and ergonomic design allows you to integrate the all-manual “cine style“ Fujinon Premista lens into your broadcast, multi-camera and remote head workflows in a very simple way, because you have all components in one housing. Three perfectly positioned drive gears engage the Fujinon Premista lens with a high degree of precision, employing three powerful digital cine motors. The Chrosziel CDM-PREM-FIZ is particularly useful for cinematic multicam, ENG and OB work, where zoom and focus can be controlled from standard Fujinon TVstyle tripod controls or the handheld zoom rocker switch. It supports remote head and robotics applications via the Hirose 20pin Fujinon remote interface, which also allows the Chrozsiel Magnum wireless FIZ unit and all other compatible brands of FIZ to control the drive’s focus, zoom and iris. TECHNICAL SPECIFICATIONS Demand Input Focus (analog/digital 16-bit)Demand Input Zoom (analog/digital 16-bit)Standard Fujinon Digipower Control ProtocolsExternal Power recommended for maximum performance/i and eXtended data pass thru Weight: approx. 1.2 KG (2.6 lbs) CONNECTOR OVERVIEW Power: Lemo-compatible 0B.305Lens-Port: 12 Pin-Hirose socketFocus-Demand 12 Pin Hirose Socket (Fujinon standard – Pinout) Zoom-Demand 12 Pin Hirose Socket (Fujinon standard – Pinout)Remote (Hirose 20 Pin) KEY FEATURES Compatible with Premista 19-45, 28-100, 80-250/i eXtended data pass thru for augmented/ virtual production workflowsUser installable drive unitLightweight (approx. 1.2 kg/2.6 lbs.)Fujinon Digipower Protocols enable seamless use in robotic and remote head applicationsUSB Port for software updatesWide range of power input (12V-30V DC)Built-in adjustable speed zoom rocker What is in the box? 1x CDM-PREM-FIZ – Full servo drive 1x MN-AB-A - Power Cable 12 Volt A/B D-Tap1x AL2-INTF-LP – Connection Cable Lensport 1x Allen Key

Chrosziel Universal Iris Motor for cine lenses and Hirose 12pin output cameras SKU: CDM-UNI-I The universal Iris Motor is a compact and universal Iris motor that can be pivoted to almost any lens by simply mounting it on a 15mm rod. The universal motor unit CDM-UNI-I fits seamlessly into the operating functions of any camera with Hirose 12pin lensport communcation. The servo drive is controlled via the 12pin Hirose output of the camera. The motor control can be addressed via the camera-specific Broadcast protocol and also works in conjunction with e.g. the MetaMount E-to-PL adapter. The Chrosziel Universal Iris Motor now allows optimal use of all manual zoom and prime lenses together with any camera with Hirose 12pin output. For this purpose, the Iris motor is slid onto a 15mm rod and swiveled onto the zoom or prime lens. The curled Hirose 12pin cable establish the connection with the camera. For setup, the cable is connected to the Hirose 12pin socket of the camera. The motor automatically calibrates itself and finds the endstops of the lens. For metadata calibration, the motor needs to learn T-Stop 4 and 16. With the press of the only button, the motor goes into passive mode and the user can turn the motor without resistance. The motor is turned to T-Stop 4 and the the press of the button confirms the position. Afterwards the motor is turned to T-Stop 16 and the position is confirmed with another press of the button. Ready! FEATURES Universal Iris motorThe Iris Motor is a compact and universal Iris motor that can be pivoted to almost any lens by simply mounting it on a 15mm rod.Controlled via any Hirose 12pin camera outputThe camera's Hirose 12pin Lensport output controls directly the Iris motor unit.Remote Iris and AutoIris controlUse the Iris motor in a remote setup and control it via the RCP or WebGUI of any camera with Hirose 12pin connector. Or switch on the AutoIris functionality of your camera and the camera uses the Chrosziel Univeral Iris Motor for AutoIris control. Technical data Standard Lensport communication connector (Hirose 12-pin)15mm Rod Mounting Bracket Torque 0.5NmPower consumption max. approx. 350mAh @ 12V IN THE BOX 1x CDM-UNI-I Digital motor unit1x Gear Drive, mod. 0.8 (Ø 40mm)1x Gear Drive, mod. 0.8 (Ø 60mm)

Chrosziel CDM-100 Digital Motor Perfectly suites many major photo, broadcast and cine lenses With the new Digital Motor CDM-100, Chrosziel developed an extremely light weight, silent, small and horizontally aligned lens motor. It perfectly suites Gimbal, Drone and SteadiCam applications Perfect for Gimbals, Drones and SteadicamHorizontally alignedExtremely light weightExtremely silentVery small and short housingMotor housing with standard 19mm diameterSmart gear attachement for secure operation and fast exchangeTwo gear diameters, even for large lens pitchesFixed motor cable additionally reducing motor size and weightUniversal Rod Clamp with integrated captive slider for use with Ø 15mm / Ø 19mm rods – quickly and easily adjustable! The Chrosziel Digital Motor CDM-100 is compatible with the Chrosziel MagNum and the Aladin MK II as well as 3rd party brands Technical details Dimensions: L 62 mm, max. diameter 25mm (without gear)Weight without clamp, incl. cable/connector : 83 g without gear, ca. 94 g with small gearWeiht with clamp, incl. cable/connector: 126 gVoltage: max. 24 VCable length: 700mmConnector Lemo 7-PinGear diameter Ø 40mm & Ø 60mm with mod 0.8 (other upon request)15mm / 19mm Universal Rod ClampProduct code: CDM-100
