Core SWX Cube Plus XLR V-mt CUBE-PLV-DC
€529.00*
Free shipping

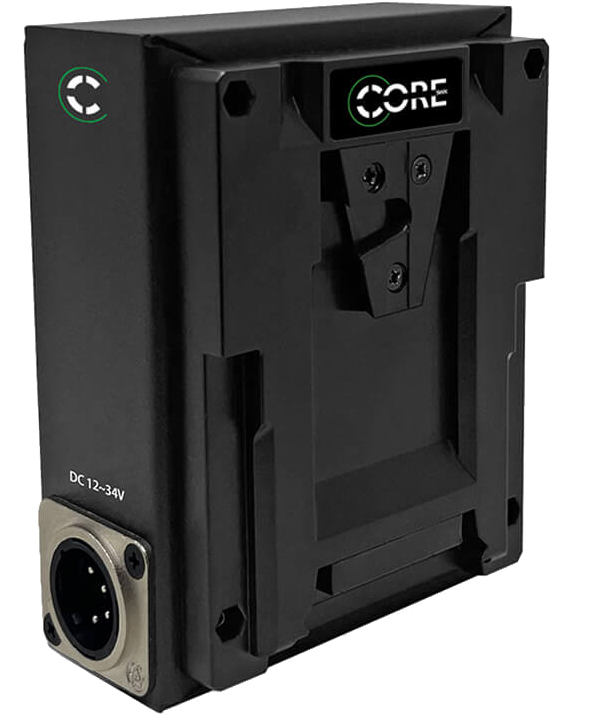

Core SWX Cube Plus XLR V-mt
Core’s Cube Plus DC is a lightweight, all aluminum on-board power module capable of powering a camera or device, while simultaneously charging an on-board battery pack up to 3A per hour(~2hrs to fully charge a 98wh pack).
The Cube Plus DC, when having an on-board pack mounted, is designed to act like an uninterruptable power source should DC input power be disconnected. Not only will the device switch from the DC power source to on-board power for the camera or device, but the two ptap connections are also backed up.
The unit has a 4pin XLR DC input to accept 12 to 34 volts, providing you the flexibility of using various outputs from your block battery style, like Core’s Maverick MV6, or a AC to DC power supply.
The Cube Plus DC has internal protections along with a replaceable 15A fuse.
Features
Lightweight, all aluminum on-board power module
Mounts on to a camera or device like a battery pack
2x ptaps to power accessories(powered by both power supply or on-board battery)
Acts like a UPS if DC Input is disconnected(as long as an on-board battery is mounted)
Simultaneous charges a battery pack while powering a camera/device*
Red and green status LEDs for charge and power to camera/device
All Aluminum design
12-30v DC input voltage
Fanless and operates silently
DC Output: up to 200w(dependent upon DC input power source)
Quick Charge Current: up to 3A*
Protection: Over Current, Voltage & Temperature
Dimensions: 121,9 mm x 94 mm x 83,8 mm
Weight: 544 g
Input Voltage: DC 12-34v
