Core SWX CXV-KOMU

€185.00*

gross: €220.15

Available, delivery time: 1-3 days

Product number: SW24199

Core SWX CXV-KOMU

BP to V-Mt plate direct mount for RED Komodo
Leaves the camera’s DC input available for AC power and battery hot-swap
When used with “smart” batteries that pass SMBUS data like Core SWX batteries, the camera will read battery percentage and runtime
Equipped with 3 DC output ports: P-Tap, USB, and 2pin Lemo
The plate has a reinforced V-Mount locking mechanism
Red Approved!

Specifications

Input: 11.9vdc-16.8vdc
Output for camera: DC 7.4v, Dual Canon BP backing
Powertap: DC 11.9-17v, Unregulated
2p Lemo: DC 11.9-17v, Unregulated
USB: DC 5v, Unregulated
Firmware port: USB Micro
LED power indication: Bi-color(red/green)

Products from american company Core SWX in NEFAL.tv's Online Shop

Related links of the manufacturer

Further products by Core SWX

Accessory Items

Tip

Wooden Camera Battery Slide Pro V-Mount (RED KOMODO)

Wooden Camera Battery Slide Pro V-Mount (RED KOMODO) SKU: 280300 Battery Slide Pro V-Mount ttaches to the camera-left, BP-9 battery slot and powers the camera using a right angle LEMO compatible connector. Thumbscrew can be loosened to tilt and slide the plate as needed. Three D-Taps on the plate provide battery voltage for accessories and power is monitored for over-current. If more than 5.8A are used by accessories, a digital fuse will trip and the red LED will illuminate but the camera will remain powered. Reset button can be pressed once to restart accessory power. DC Input on camera-right side can be used for hot-swapping between block battery and on-board battery. While the AC adapter that comes with the KOMODO can be used, please note that it may not be powerful enough to sustain the camera and accessory draw. If hot-swapping between Gold Mount battery and BP-955 battery is desired, please consider Battery Slide Extension for Canon BP-955 Hot Swap (RED KOMODO) which moves the battery plate further back from the camera body. Weight: 264 gDimensions: 127 mm x 114.3 mm x 44.45 mm

€440.00*

gross: €523.60

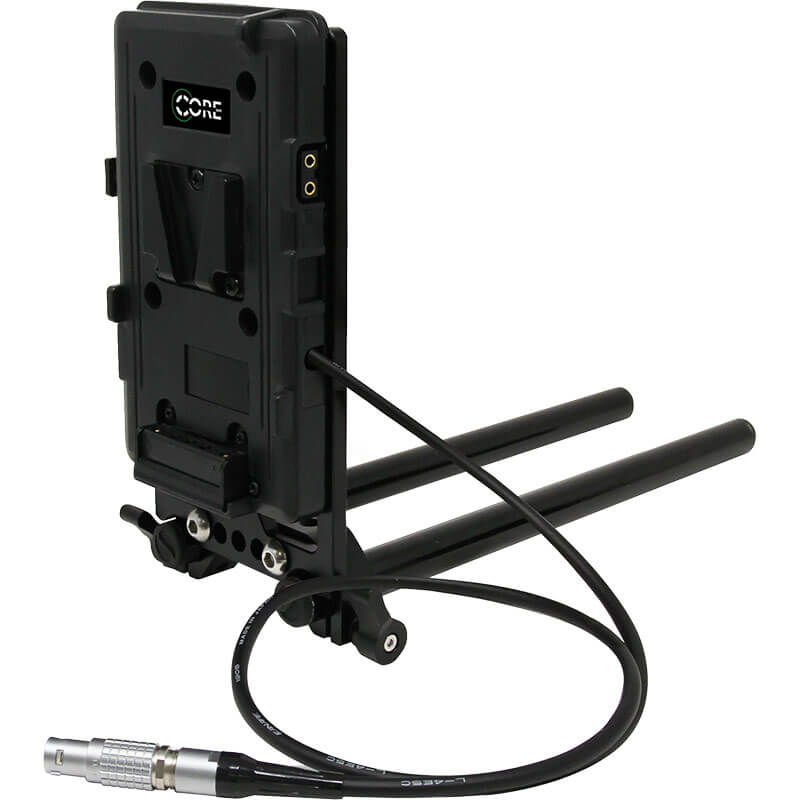

Core SWX RMV-KOM2

Core SWX RMV-KOM2 The Core SWX RMV-KOM2 is a 15mm rod mount bracket with v-mount battery plate. The bracket works with all v-mount battery packs to provide a secure mounting surface for your rig setup. The Cheese Plate can be configured to mount vertically or horizontally, based on balance preference. The system is terminated with a 10″ 2-pin coil cable to power your RED Komodo as well as one p-tap output for powering accessories. The cheese plate is configured with many 1/4-20 thread mounts for attaches devices, arms, etc., along with a soft Velcro rear backing to quickly attach a wireless audio RX, a wireless video RX, etc. without the need for additional hardware. Features 15mm rail mount cheese plate with a V-mount battery plate and 10″ 2-Pin coil cable for RED KomodoWorks with all v-mount battery packs to provide a secure mounting surface for your rig setupThe Cheese Plate can be configured to mount vertically or horizontallyFeatures a 10″ 2-pin coil cable to power your RED Komodo as well as one p-tap output for powering accessoriesThe cheese plate is configured with many 1/4-20 thread mounts for attaches devices, arms, etc.Soft Velcro rear backing to quickly attach a wireless audio RX or a wireless video RX

€212.00*

gross: €252.28

Core SWX CXV-KOMU

Core SWX CXV-KOMU

Specifications
