Core SWX CXV-TS-VRAP RED V-Raptor Sharkfin V-mt
Core SWX CXV-TS-VRAP

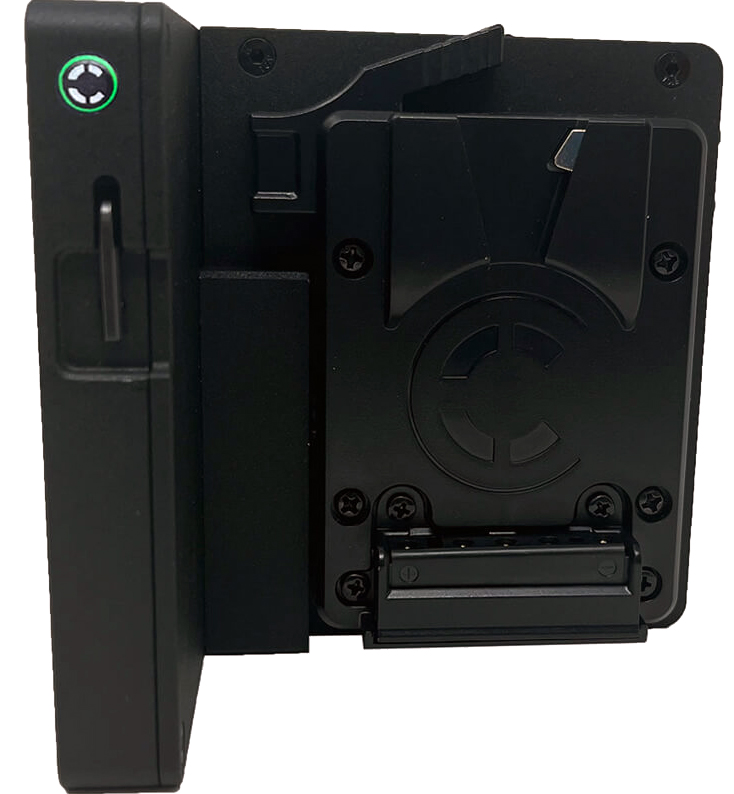

The Core SWX CXV-TS-VRAP connects to the v-mount of the DSMC3 Raptor to allow you to attach two V-mount battery packs(full size, mini or micro) to the rear of the camera. Different from some other plates, the all-aluminum build of this plate makes it feel like part of the camera. The build quality is next level and we have added some new features on this plate we’ve never done before.
Since the Raptor outputs are found on the rear of the camera, this hotswap allows you to slide out the right side mount plate to the proper depth so as to not block the inputs and outputs of the Raptor camera. The set screw then locks the positioning in place allowing you to accommodate any size battery packs. A storage slot with magnetic hold keeps the allen key in place to reposition at any time.
Choose between discharging both battery packs at the same time equally or one and then the other. To draw from both batteries equally, switch the button to the “I I” setting. When the switch is in the “I+I” setting, it will draw power from the camera operator side battery first, and then move to the other. Either way you choose, you can still hot swap batteries to keep continuous power going to your camera and accessories. All mode changes should be done prior to camera startup. The switch is deactivated once power is being drawn from the plate.
Features
RED V-Raptor Sharkfin V-mt
Allows you to mount two packs and hotswap on the RED Raptor for extended runtimes
Allows you to use other size batteries instead of just micro sized packs
Input: DC 11-17v
Output for Camera: DC 11-17v, Unregulated Paralleled

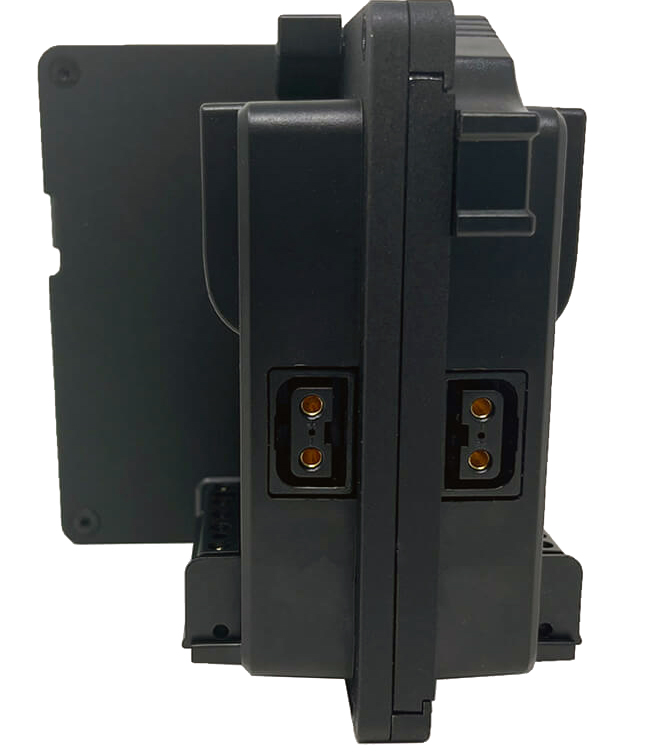

Output for 2x P-Tap: DC 11-17v, Unregulated, 7.2A max
