Core SWX GP-TS V-Mount HotSwap Adapter Plate

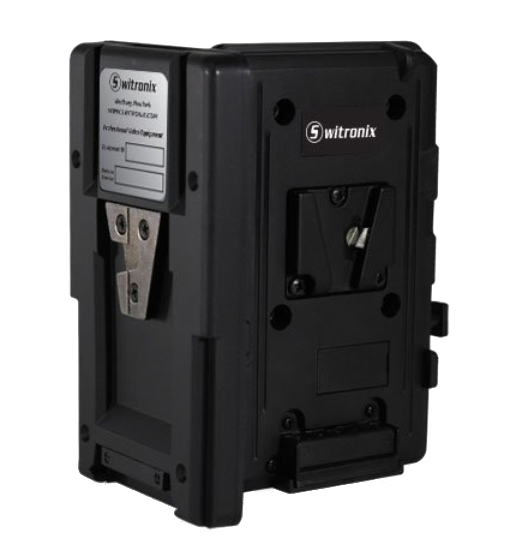

Core SWX GP-TS-SFF The Core SWX GP-TS-SFF is a short form factor Hotswap Shark-fin adapter that mounts directly to the existing v-type plate on the camera. It allows for continuous battery operation, and for additional accessories, it has 4 powertaps. Since the batteries aren’t ‘stacked’ on one another, you can easily remove the depleted battery while leaving the other battery connected so that there is no down time. Specification: Input: DC 11-17vOutput for Camera: DC 11-17v, Unregulated ParalleledOutput for 4x P-Tap: DC 11-17v, Unregulated, 7.2A maxSize: 11,68 cm x 8,89 cm x 11,94 cmWeight: 0,54 kg

Hawk-Woods V-Lok mini hot-swap plate (2x D-tap) Hawk-Woods VL-MCF1 is a V-Lok fitting plate to dual V-Lok camera plate for the mini V-Lok battery system. The adaptor will allow you to hot-swap your mini V-Lok batteries from Hawk-Woods current range of batteries VL-M50, VL-M98 and VL-M150. This setup for the mini batteries is similar to the stack-able battery systems currently available on the market for continuous power to your equipment, however differs in the advantage that you do not need to carry around dead weight, your batteries are technically always working with you and for you! This Hawk-Woods V-Lok mini hot-swap plate adaptor has been fitted with a intelligent LED system to determine battery status against the total amount of current being drawn this will give you confidence to know when your battery needs to be changed. The LED will come on and flash at 12.7v and under meaning that your battery will soon need to be changed. Unit comes equipped and fitted with 2x Power-con outputs.

Wooden Camera Arri Alexa LF 24V Sharkfin Battery Bracket SKU: 262900 ARRI Alexa LF 24V Sharkfin Battery Bracket (V-Mount) allows for two standard voltage V-Mount batteries to power the Alexa LF, which requires 24V. Key features include hot swapping capability between batteries and the DC input, 4x D-Tap connectors that remain powered with at least one battery installed, percentage information transmitted to the camera when smart batteries are used, knobs for tool-less installation with a hidden allen wrench for additional tightening, and a protective cover plate for when battery bracket is not in use. Hot Swapping and Normal Operation Since the Alexa LF requires high current for normal operation, two batteries capable of 10A sustained draw should be installed at all times. At camera idle, when no lens motors are moving, batteries can be swapped one at a time while the camera and accessories remain powered. It is also possible to hot swap between block battery and onboard batteries. 4x D-Tap Accessory Power 2x D-Taps are available on each power plate in various positions. All D-Taps remain powered even when a single battery is installed. Note that D-Taps will not function when only powering the camera from a block battery while no onboard batteries are installed. Percentage Display in Camera The Sharkfin module will read SMBUS and reverse SMBUS batteries, combine the data, and provide a summarized information stream to the camera. This data is displayed in the UI on the side of the camera body, LCD, EVF, etc. Tool-less Installation and Protective Cover The system has four M3 thumbscrews and two locating points which attach directly to the back of the camera. The allen wrench can be used to complete the installation and stored neatly on the plate for future use. The included cover plate is great for protecting the pogo pins during transit. Please note that voltage will be present on the pogo pins when a battery is installed so do not attach a battery if the bracket is not installed on the camera. Weight: 907 gDimensions: 140 mm x 146 mm x 95.3 mm
