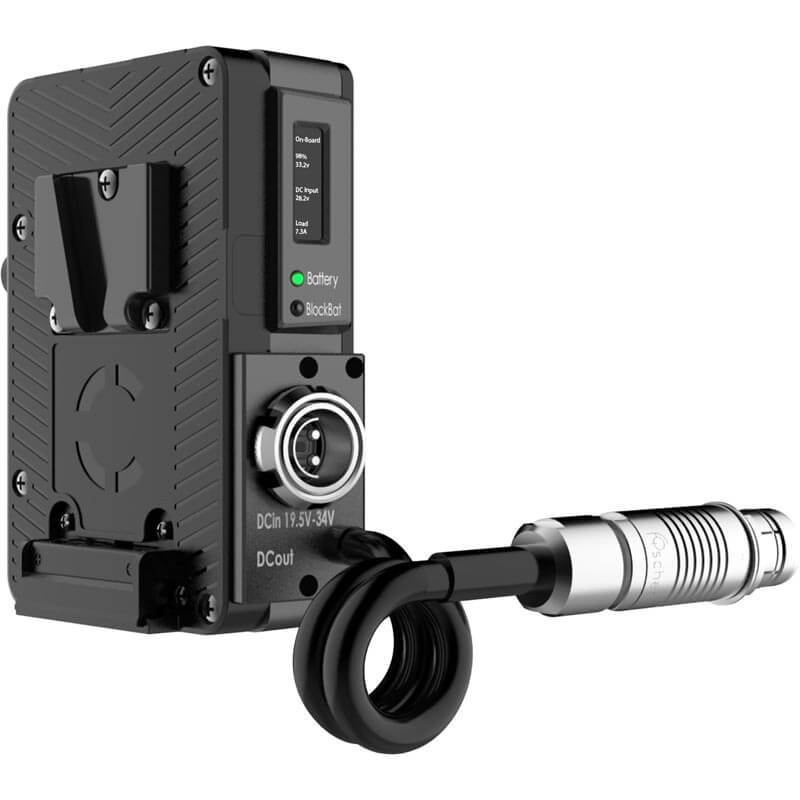

Core SWX Helix Power Management Control Direct Mount for ARRI Cameras (V-Mount)

Core SWX Helix PMC Direct Mount for ARRI

SKU: HLX-PMC-V

PMC (Power Management Control) Direct Mount Plate for ARRI - V-mount

The HLX Power Management Control mount plates take power management concerns away from the camera, and provide a “hot swappable” platform between on-board and block battery/AC mains, while providing transparency to the AC on set. The mount plate system uses a standard 2-pin Fischer connector for the power input on the plates, simplifying the array of cables production companies and rental companies need to inventory, while addressing many different camera makes.

The on-board LCD monitors input percentage/voltage of the power sources, as well as current draw of the entire camera setup.

The HLX-PMC-V mounts directly to ARRI cameras, and has a v-mount front. It also accepts standard V-mount 14v battery packs (not for ARRI LF applications).

Features

V-mount Power Management Control plate for ARRI LF and Alexa camera
Directly mounts onto camera
On-Board Helix packs output up to 33.6vdc
Prioritizes Block battery/AC Mains 2-pin Fischer Input
On-board LCD monitors power level
Also accepts 14v v-mount packs(not for LF application)

PMC Mount plates

On-board HELIX packs output up to 33.6vdc
Provides high voltage to the camera system to maximize efficiency
Prioritizes Block Battery/AC Mains and universalizes camera systems to 2pin Fischer
Accepts standard 14v v-mount and gold mount(for all applications besides LF)
LCD provides full transparency on power levels and management

Technical data

Mount input: DC 11-34v
Fischer 2-pin DC input: DC 19.5-34v
Output for Camera/P-Taps: DC 11-34v/11-17v Unregulated
