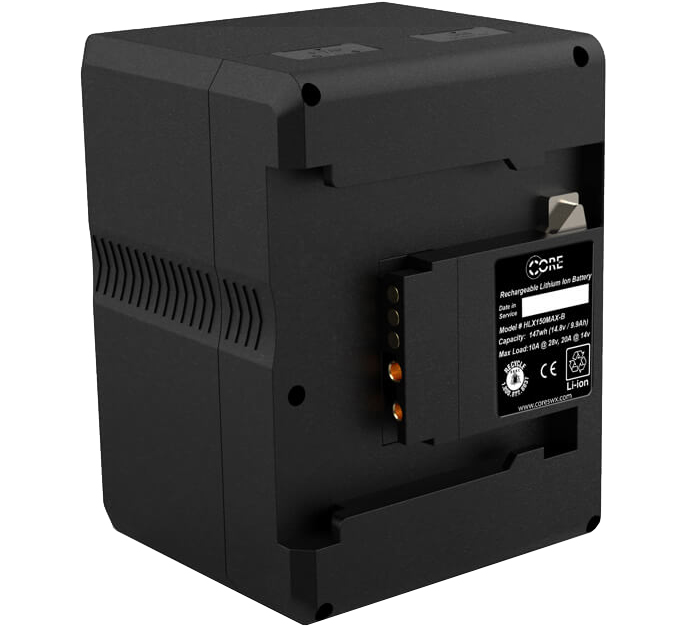

Core SWX HLX-150MXB Helix Max 147Wh Lithium-Ion Battery (B-Mount)

Core SWX GPM-X2B Charge your B-mount batteries while traveling with the GPM-X2B Mini Dual Travel Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this compact travel charger can charge a single battery at a 3A rate or two batteries simultaneously at 1.5A. Since it sits vertically with two batteries mounted, the GPM-X2B takes up less space than traditional chargers. Features 2 position travel charge for Helix B-mount battery packsCharges Core Helix B-mount packsRed and green status LEDsLightweight and compact90-240 VAC worldwide compatible input voltageInput: 100V-240AC 50/60HzCharge Current: 1 battery 3.0A, 2 batteries 1.5ASize: 14 cm x 11,4 cm x 7,6 cmWeight: 0,5 kg

Core SWX MACH-Q4MBi Core’s Micro Intelligent Charger Series continues to be the most advanced in the industry. Now with the inclusion of Adaptive Charge Control (ACC) and SafeFly Standalone Discharge function, the new Mach4 Micro chargers are at the pinnacle of technology. An upgraded charge circuit design now allows you to four 98wh packs in less then 1hr40min.   The units have an all aluminium build and made in the USA. Adaptive Charge Control(ACC): Core SWX’s new Adaptive Charge algorithm’s can improve battery longevity and performance up to 30% over the life of the pack. The new ACC algorithm evaluates the battery pack based on age, cycle count, and last full charge capacity, to determine the appropriate charge routine for the pack. While in charge mode, the charger continually monitors the pack for feedback during the charge process to adjust as needed. This process insures top performing packs are charged as fast as possible, while older packs are charged efficiently while accounting for changes in cell performance overtime to minimize degradation and capacity loss.  SafeFly Standalone Discharge:  In addition to battery management, the Mach4 Micro Chargers include SafeFly mode. The updated chargers add standalone discharge when AC mains power is not present. This feature provides additional value and allows you to carry one charging system for both charge and discharge of the battery packs. With one touch of the onboard membrane button console or via the Voltbridge App, the chargers will discharge all packs connected to under 30%. By initiating SafeFly mode when the charger is connected to AC mains, the charger with either discharge or charge packs to 30%, to insure all packs are ready for shipment. Features Four position charger, 4A Simultaneous rapid charge, Adaptive Charge ControlFour independent charge bays with Simultaneous chargingApproximately 90min. charge time for four 98Wh batteriesRed and green status LEDs with diagnostic LCD and Test functionCompatible with Voltbridge and Voltbridge Mesh Enterprise90-240 VAC worldwide compatible input voltageRecessed carry handleQuick Charge Current: 4A SimultaneousDischarge Current: Up to 2A per channelLCD: 4x20 Character BacklitInput Voltage: 90-240VAC 50/60Hz

Core SWX MACH-4B Featuring four independent charge bays, the Core SWX MACH4 Charger is capable of charging four batteries simultaneously by focusing on each individually. Offering the fastest charge speed on the market, the charger can completely charge four 98Wh batteries in approximately 90min.  Red and green LEDs indicate charging/complete status. Supporting 90-240 VAC input voltage, the Mach4 is worldwide compatible. The new low profile design is over ½” thinner than comparable models.  The charger features a recessed carry handle that makes transport convenient. The housing is made of aluminum, providing for a robust build and made in the USA. Features Four position charger, 4A Simultaneous rapid charge, B-mountFour independent B-Mount charge bays with simultaneous chargingDesigned for Core Helix B-mount packsApproximately 90min. charge time for four 98Wh batteriesRed and green status LEDs90-240 VAC worldwide compatible input voltageAluminium buildRecessed carry handle Technical data Quick Charge Current: 4A SimultaneousSize: 31,5 cm x 22,6 cm x 8,1 cmWeight: 2,3 kgInput Voltage: 90-240VAC 50/60Hz

Core SWX HLX-TB-SFF The HLX-TB-SFF is a B-mount to B-mount sharkfin plate that accepts HELIX B-mount battery packs. When two HELIX battery packs are on-board the adapter will output 20-34vdc with one pack or two. To insure there is enough power in one of the packs to facilitate a hotswap either stagger the packs when in discharge(start operating with one pack on, and then place another pack on after 10min. of usage) or exchange one of the depleted packs off the hotswap mount when 10% is remaining. This way the remaining pack will have ample power to carry the load of the rig. Features B-mount hotswap/sharkfin plateWorks with ARRI’s B-mount standardAllows you to mount two packs on a B-mount deviceMount input: DC 20-34vOutput for Camera: DC 20-34v, Unregulated requires HLX mount plate for 20-34v transmission

Core SWX GT8 B-mount SKU: GT8-Q4B Core SWX GT8 B-mount is a rapid quad B-mount charger for Helix MAX packs. Experience the ultimate fast charging technology with a charger that combines both speed and safety. The highly advanced GT8 charger is capable of charging four Helix Max 98wh V-Mount, G-Mount, or B-Mount batteries in under 60 minutes, and it’s also the ideal choice for charging ApexHV lighting and grip batteries. Thanks to Core’s Sub60 Charge technology, the GT8 charger can rapidly charge your batteries, allowing you to use the same packs multiple times throughout the day, or “same-day cycleTM,” without worrying about long wait times for recharging. This feature is perfect for traveling professionals who face challenges in traveling with lithium-ion battery packs. With the GT8 charger, you can travel with fewer packs while maintaining the confidence that you can cycle the packs faster for your cinema and lighting production needs. Technical data Quick Charge Current: 4A @33v Simultaneous Size: 23,11 cm x 8,51 cm x 30,91 cm Weight: 2,27 kg Input Voltage: 90-240VAC 50/60Hz
