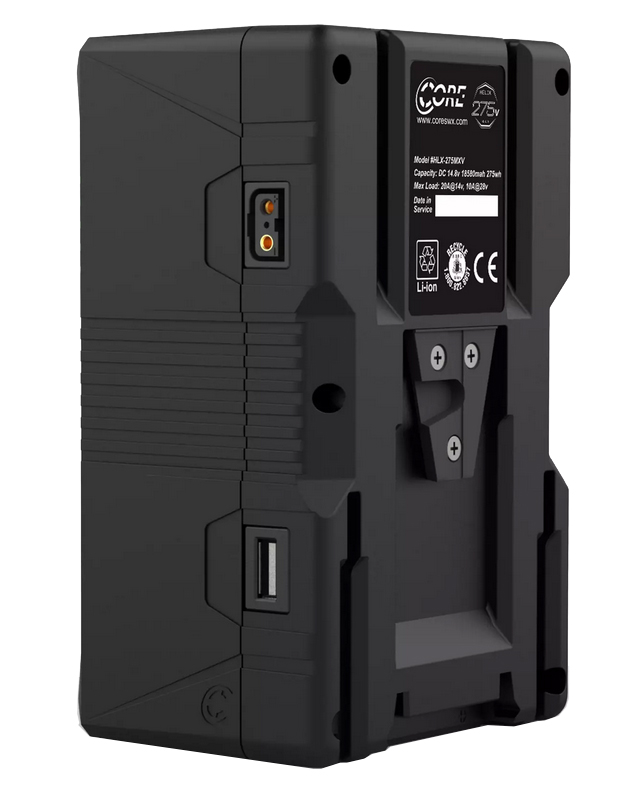

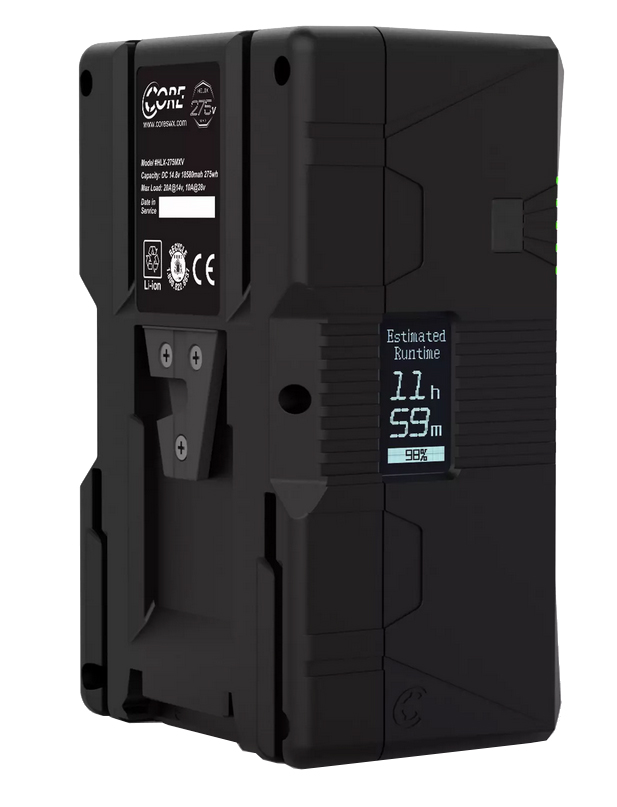

Core SWX HLX-275MXV Helix Max 275 V-mt

SWIT PB-H290S Beside ALEXA cameras, many Cine Lights are designed high voltage input, to reduce current ef- fectively, and protect power pins and ensure the reliability. You can easily put on a “Magic Sticker” on the par- ticular position of all standard V-mount plates, then PB-H290S battery can recognize and auto switch on 22-33.6V output mode. PB-H290S consists of 24pcs high class 18650 battery cells, and reaches 290Wh high capacity. PB-H290S supports Max 250W constant power output, can drive ALEXA LF (160W) more on-camera monitors or wireless simultaneously. The high load battery will have longer life time than normal battery if always under full load power. SWIT PB-H290S supports 6A fast charging by SWIT S-3812S or PC-P460S super fast charger, to save up to 60% charging time, can be charged from 0 to 80% after 2 and half hours, and fully charged within 3 hours 50 minutes. Features 14.4V/28.8V Bi-voltage auto switchFor ALEXA LF/65 high voltage camerasFor all normal voltage camerasFor high voltage cine lightsCompatible with normal voltage chargers290Wh capacity, at least 250W high load6A fast charging support8-LED remaining time indicatorsD-tap power output socketNormal V-mount connection1.5m drop-off proof, IP54 water proofMultiple circuit protections

Core SWX HLX-150MXS Core SWX Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v* simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.  Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.  Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.  Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs. Features 14.4v/28.8v, 147wh battery pack, LCD and w/ ptap and USB, 20A Max Load - V-mountLithium-ion battery chemistryWide range, dual voltage output from 11v to 33.6vV-mount with SMBUS camera/charger communicationSuper robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)Runtime LCDP-Tap for aux output and 5v USB for powering mobile devices2k cycles/2 year warranty Technical data Capacity: 147Wh (14.8v, 9.9Ah)Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 89.92 x 118.11 x 68.6 mmWeight: 1 kgLoad: 20A @ 16.8v, 10A @ 33.6vMount Type: V-mount

Core SWX Helix Max 275 G-mt SKU: HLX-275MXG Core SWX Helix Max 275 G-mt is a Native Dual Voltage lithium ion battery with a robust load output - 275Wh Gold Mount. Helix275max, 14.4v/28.8v, 275wh 3-stud battery pack, LCD and w/ ptap and USB, 20A Max Load. Capacity: 275whOperational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 8,89 cm x 16 cm x 7 cmWeight: 1,40 kgLoad: continuous 20A @ 16.8v and 10A @ 33.6v

Core SWX Helix Max 360 V-mt SKU: HLX-360MXV Core SWX Helix Max 360 V-mt is a native Dual Voltage lithium ion battery with a robust load output - 367Wh V-Mount. Helix Max can cover all of your high voltage and low voltage powering needs, making it the go-to power solution for all cinematographers and filmmakers. So, if you are looking for an ultra-efficient, dual voltage platform that guarantees lossless power transmission and optimal performance, Helix Max is the perfect choice for you. Capacity: 367wh Operational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6v Size: 8,89 cm x 16 cm  x 9,14 cm Weight: 1,63 kg Load: continuous 20A @ 16.8v and 10A @ 33.6v

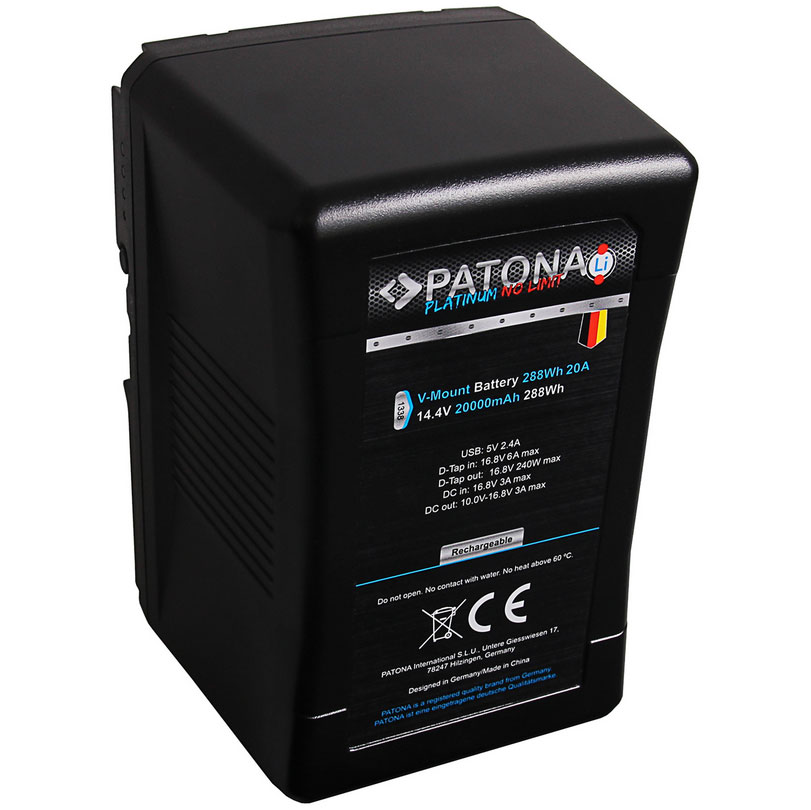

PATONA Platinum Battery 288Wh V-Mount New in the PATONA Platinum series we present the battery for Sony BP-290W. The high continuous discharge rate of 20A max is made possible by Tesla cells. For additional comfort the battery has a D-Tap connection, a DC connection (10-16.8V, 3A max.) and two USB outputs. Thus, further devices can be connected and used. A 4-step LED display informs you about the charge status of the battery. This battery was developed for a sensationally long lasting photo pleasure. The performance of the built-in cells is almost inexhaustible. In the PATONA Platinum series, the most advanced cells have been used, which are not only exceptional but also impressive.  The Platinum Series is the highest quality, most durable and most innovative series from PATONA. With the purchase of a battery from the PATONA Platinum Series, you acquire an excellent, exquisite product that will fascinate you. We are proud to offer you this Platinum product and wish you a lot of pleasure when using it. Technical Data High capacity 20.000mAh / 14,4V / 288WhOutput USB: 4,75-5,25V / 2,4AD-Tap input: 16,8V / 6A max.D-Tap output: 16,8V / 240W max.DC input: 16.8V / 3A max.DC output: 10-16.8V / 3A max. Connector Type: V-MountType: Li-IonNumber of cells: 16 Maximum current: 20AWeight: 1545gr Dimensions: 97x88x146mmBrand: PATONA Platinum

Core SWX HLX-9MXS Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.  Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.  Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.  Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs. Features 14.4v/28.8v, 98wh battery pack, LCD and w/ ptap and USB, 20A Max Load - V-mountLithium-ion battery chemistryWide range, dual voltage output from 11v to 33.6vV-mount with SMBUS camera/charger communicationSuper robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)Runtime LCDP-Tap for aux output and 5v USB for powering mobile devices2k cycles/2 year warrantyUN38.3 certified for ease of travel and shipping without limitations Technical data Capacity: 98Wh (14.8v, 6.6Ah)Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 89.92 mm x 118.11 mm x 60.45 mmWeight: 0.8 kgLoad: 20A @ 16.8v, 10A @ 33.6vMount Type: V-mount

Core SWX Helix Max 275 B-mt SKU: HLX-275MXB Core SWX Helix Max 275 B-mt is a Native Dual Voltage lithium ion B-mount battery with a robust load output. Core SWX Helix Max is a game-changing on-board battery system that revolutionizes the cinematic industry with its cutting-edge power capabilities. With a focus on powering cinematic camera and lighting equipment, Helix Max is the most complete battery system ever offered to the industry, featuring a Native Dual Voltage, 14v/28v output, providing better designed and performing on-board high voltage solutions. The Native Dual Voltage platform is an advanced power delivery system, which allows Helix Max packs to be both compatible with 14v equipment and chargers, as well as high voltage cinematic camera equipment and lighting. Whether you choose V-mount, G-mount or B-mount, this cutting-edge technology enables the Helix Max to output up to 33.6v, which is within the top range of high voltage acceptance, resulting in less current draw, less heat generation, and longer operational runtime. With this platform, Helix Max can provide up to 12A peak on high voltage and 24A peak on low voltage devices, making it the most efficient and versatile power solution for cinematic equipment and lighting. It allows for 100% efficient power transmission since there is no power regulation on the battery mains, ensuring that your equipment runs optimally and without interruption. Whether you’re shooting on location or in the studio, Helix Max’s Native Dual Voltage technology ensures that you have the power you need to get the job done with maximum efficiency and performance. Features 2K Cycles 2Y WarrantyCamera CommunicationDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRugged HousingRuntime LCDStorage ModeUSB PowerWraparound LED Technical data Capacity: 275wh Operational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6v Size: 8,89 cm x 16 cm x 7 cm Weight: 1,40 kg Load: continuous 20A @ 16.8v and 10A @ 33.6v

Core SWX Helix Max 360 B-mt SKU: HLX-360MXB Core SWX Helix Max 360 B-mt is a Native Dual Voltage lithium ion battery with a robust load output - 367Wh B-Mount. Helix360max, 14.4v/28.8v, 367wh ARRI B-mount compatible battery pack, LCD and w/ ptap and USB,, 20A Max Load. Helix Max battery packs are able to communicate remaining runtime to the camera’s display. By transmitting the same information displayed on the runtime LCD to the camera, operators can view important data such as voltage, battery runtime, and percentage directly on their camera. This feature not only saves time by eliminating the need to check the battery’s status manually, but it also ensures that camera operators always have the most up-to-date information about the battery’s performance. With this level of communication, professionals can work with greater efficiency and accuracy, knowing they have a reliable power source to support their creative vision. Native Dual Voltage lithium ion battery with a robust load outputCapacity: 367whOperational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 8,89 cm x 16 cm x 9,14 cmWeight: 1,63 KGLoad: continuous 20A @ 16.8v and 10A @ 33.6v Features 2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRugged HousingStorage ModeUSB PowerWraparound LED
