Core SWX JP-A-FS7 GOLD Mount Jetpack for Sony PXW-FS7
€500.00*
Free shipping
No longer available

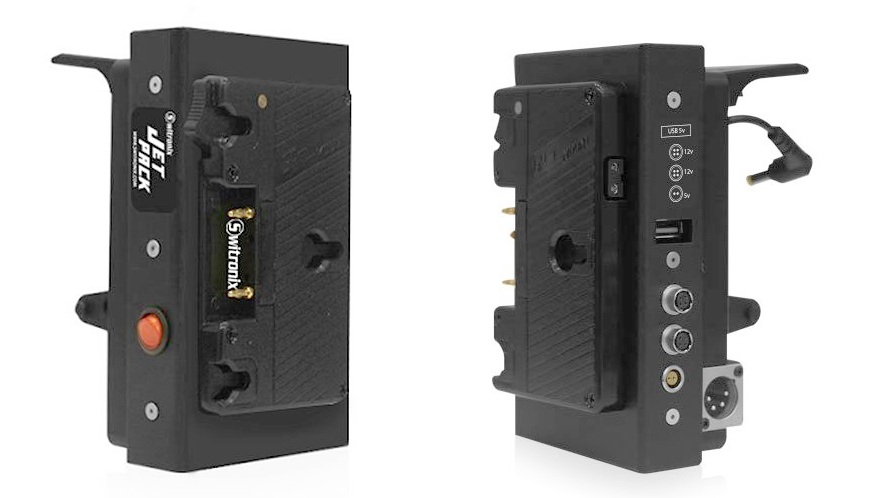

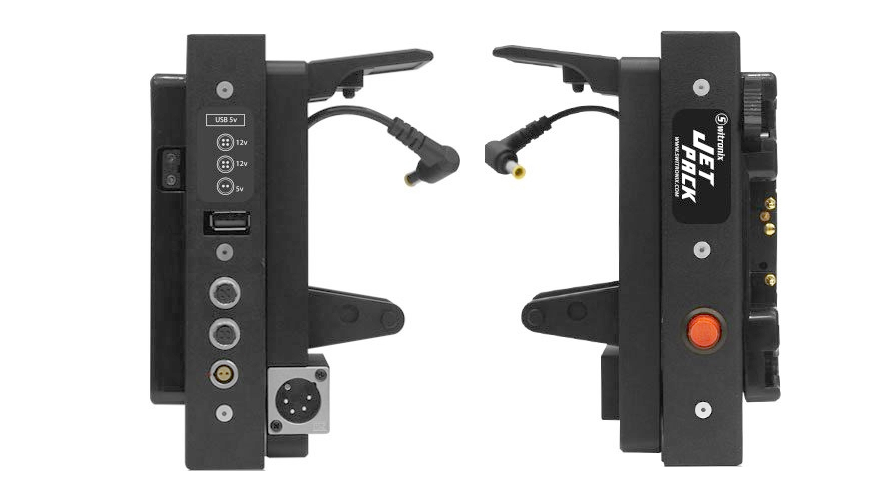

Core SWXÂ JP-A-FS7 GOLD Mount Jetpack for Sony PXW-FS7
The jetpack offers all the power outputs you'll ever need in a super compact design.
The JetPack Sony FS7 includes
Power connection to your Sony FS7T
Two powertap outputs (power monitors, lights, etc.)
One USB output (i.e. Redmote, Tascam DR-05, other USB device)
One 5v Lemo output (i.e. Zoom, AJA)
Two 12v regulated Hirose 4-pin outputs (i.e. HDV Cameras, DSLRs)
One 4-pin XLR power input

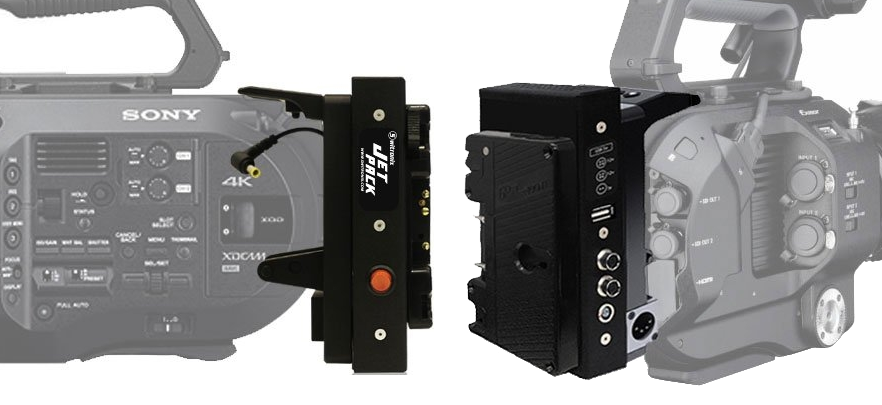

Mounting bracket for mounting the Jetpack directly to the back of the Sony FS7 as an alternative to the XDCA-FS7
The all aluminum design reduces weight while still being able to handle wear and tear. The JetPack includes three 1/4-20 mounting points, as well as an optional "cheese" backplate, which offers additional 1/4-20 and 3/8-16 tapped holes.Â
Switronix JP-A-FS7 Technical data
Size 20.32 cm x 8.89 cm x 4.77 cm
Weight 0.77 kg
GOLD-mount Battery/4-pin XLR Input DC 11-17v
FS7 Power Input Pin DC 11-17v, Unregulated
P-Tap(2) OutputsDC 11-17v, Unregulated
LEMO 2-pin(0B) 5v, 2.5a
HRS 4-pin12v, 2.5a. Includes two 12v outputs
Mounting Points 1/4-20 threads on bottom, and two on back
Mounting Points M3 screw pattern on back for optional Cheese Plate
USB Output
5V, 1a The JetPack will charge an iPad but slower then the Apple brand charger. You will see "Not Charging" on the iPad screen, but that just means 2.1A of current is not being supplied to the device
