Datavideo BC-50 IP Block Camera
Product number:
SW23611
Manufacturer:
Datavideo
EAN:
672255007433
Manufacturer product number:
BC-50
Delivery time:
3-5 days

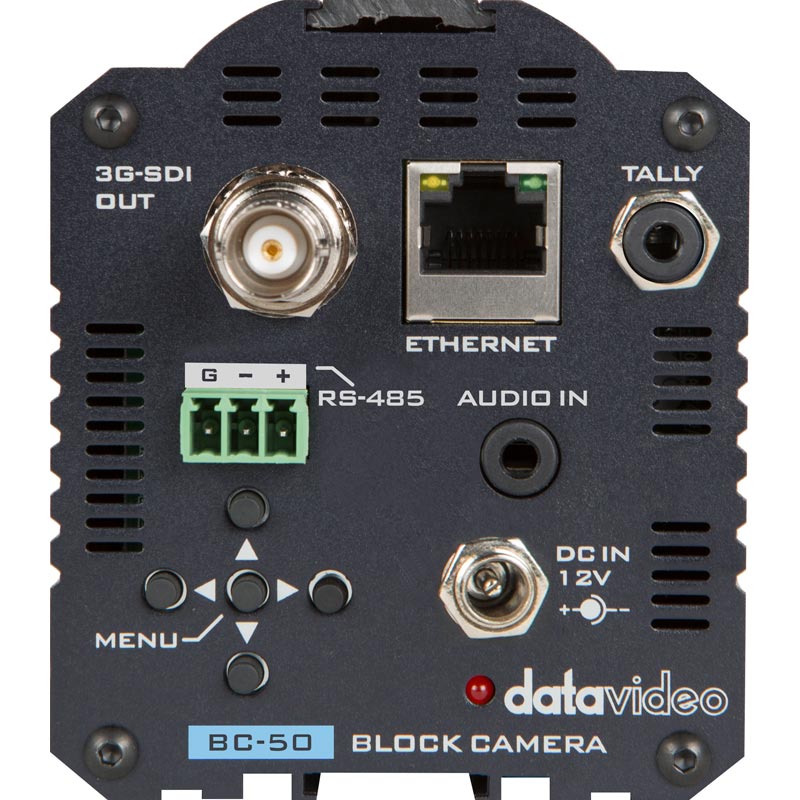

Datavideo BC-50
Datavideo BC-50 is a cost-effective block camera with 20x optical and 16x digital zoom. Support PoE Technology. The video output is 3G/HD-SDI, it also supports VISCA/Pelco-D/Pelco-C protocols for control via RS-485.
The BC-50 can encode into H.265, H.264 and MJPEG, it fully supports RTSP and RTMP protocols making it easy to stream to popular platforms such as Youtube, Facebook Live as well as hardware and software decoders. The BC-50 Block Camera is a small HD camera with sturdy and durable metal case can be used in different types of environments.
Features
- Full HD Block Camera
- 1080P Full HD resolution
- 20x optical zoom with a maximum aperture of F1.8. The camera gain setting of 0.05 LUX is sufficient for video production with a smooth PTZ control
- Support PoE Technology for remote power
- H.264/H.265/Motion-JPEG compression through RJ-45 connection
- Stream to popular platforms such as Youtube & Facebook live.
- Regular 3G SDI output for uncompressed video up to 1080P
- Controllable by VISCE/Pelco-C/Pelco-D
- Tally lights for broadcast level applications
- The camera is only 6.4 inch long facilitating setup in all environments.
- Cold shoe mount for connecting an external LED light or monitor
Specifications
- Video format: 1080p 60/50/30/25 | 1080i 60/50 | 720p 60/50
- Image Sensor: 1/2.7" progressive scan CMOS sensor
- Effective Pixels (approx.): 2.07 Mega pixels
- Min. Illumination: 0.05 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 20x Optical zoom ; 16x Digital zoom
- Gamma Control: Yes
- Iris Control: Auto / Manual
- Digital Noise Reductions: 2D & 3D
- On-Screen Display (OSD): English, Simplified Chinese, Traditional Chinese
- White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
- AGC / Gain Control: Auto / Manual (0 to 28 step) | Max. Gain Limit (6 to 28 step)
- Mirror / Flip Image: Yes
- Focus Mode: Auto / Manual
- Panning/Tilting Range: N/A
- Panning/Tilting Speed: N/A
- Preset: N/A
- Field of View: (Horizontal, Wide) Approx. 63.7° (WIDE END) / 2.3° (TELE END)
- Image Compensation: Day & Night Function
- Video Output: 3G/HD-SDI x1
- Tally LED: Dual colour (Red, Green)
- Filter: M52.0 x 0.75 Thread with UV Protection
- Protocol: VISCA, Pelco-D, Pelco-C
- Remote Control Interface & Transmit Distance: RS-485: Transmit up to 1000m
- F/W Update: Ethernet
- IR Control: N/A
- Size of Screw Hole for Tripod: Use hot shoe mount
Details of the manufacturer
- Datavideo Technologies Co. Ltd – Taiwan
- 10F. No. 176, Jian 1st Road Zhonghe Dist. New Taipei City 235, Taiwan
+886-2-8227-2888
Details of the person responsible for putting the product on the European market
- Datavideo Technologies Europe B.V.
- Floridadreef 106
- 3565 AM UTRECHT, The Netherlands
+31 30 261 9656
