Datavideo DAC-91 SDI Audio Embedder

€360.00*

gross: €428.40

Prices excl. VAT plus shipping costs

Product number: SW27013

Manufacturer: Datavideo

EAN: 672255006870

Manufacturer product number: 2000-2310

Delivery time: 3-5 days

Datavideo DAC-91

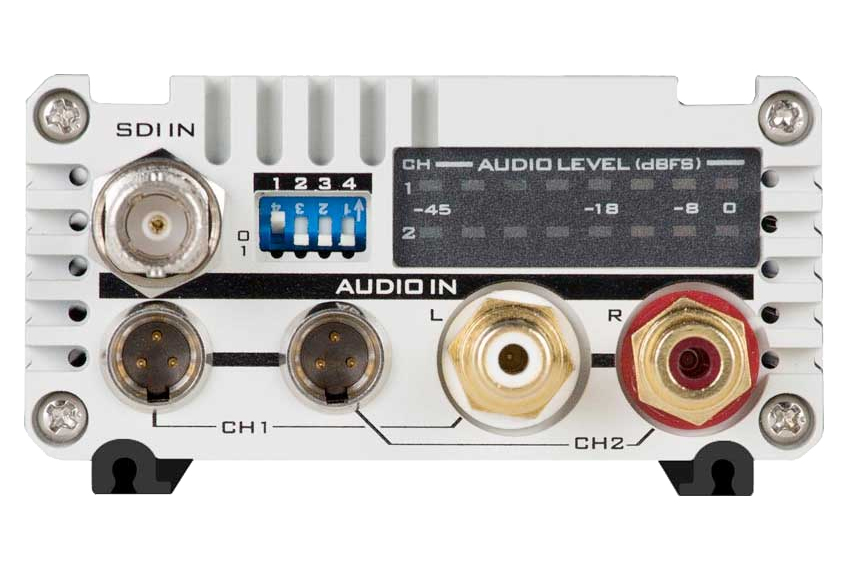

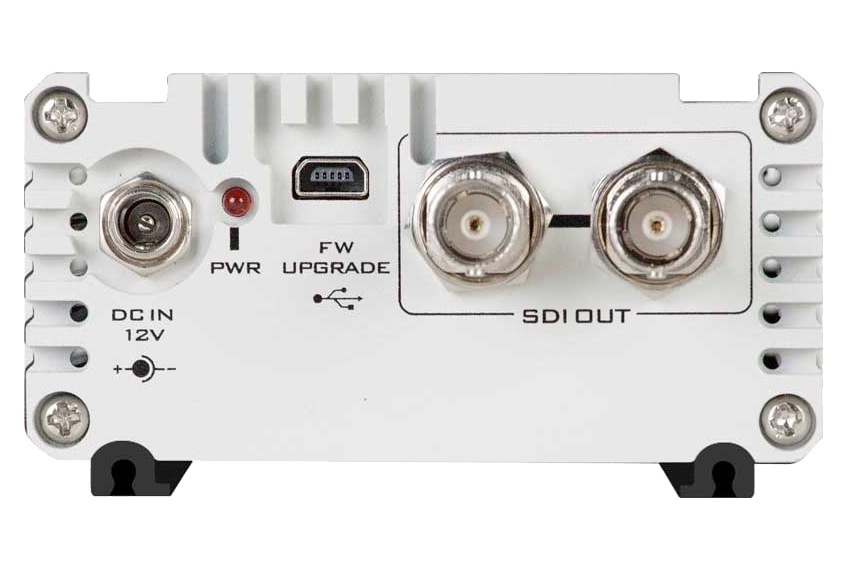

The Datavideo DAC-91 is an embedded audio box with useful functions that allow users to embed 2 channels of analogue audio into SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio. The Audio box also has audio level adjustment by using the built-in DIP switches.

Features

Audio Embedder
Embed Audio into an SDI Signal
Automatically detects 3G, HD, SD signal
4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)
Audio level indicator display
Audio level adjustment
Control via DIP Switches
