Datavideo DVK-400 4K Real-time chromakeyer
Free shipping
Product number:
SW23764

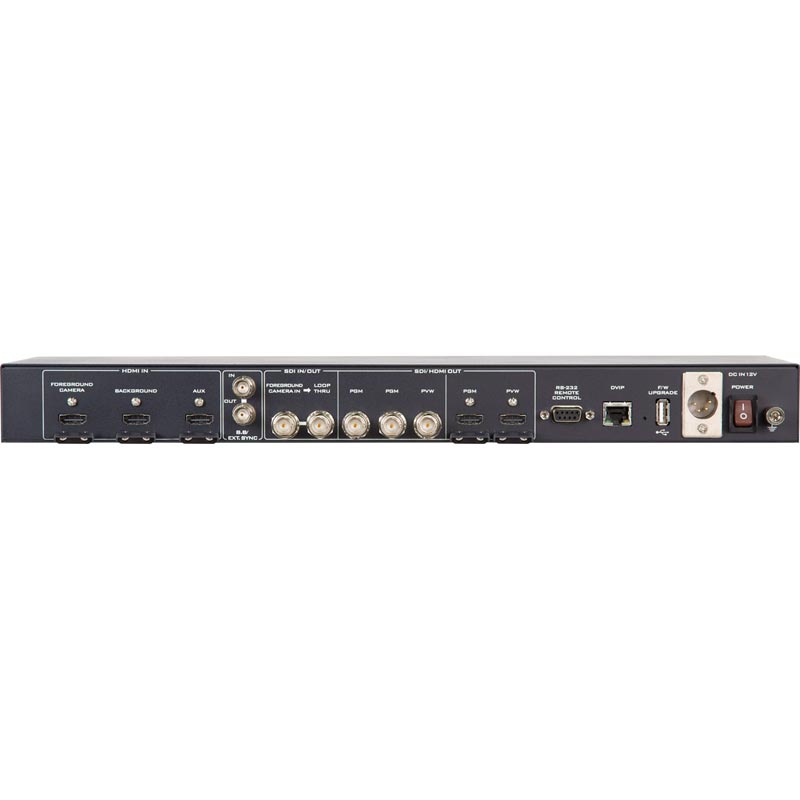

Datavideo DVK-400
Datavideo DVK-400 s an advanced 4K chromakey device which is easy to operate and delivers excellent results. The device can be controlled locally using a directly attached laptop or remotely over an IP network. Fitting into HDMI and SDI-based live environments, the DVK-400 supports up to UHD resolutions with easy spill suppression, colour enhancement
Featues
- 4K Real-time chromakeyer with 4:4:4 10-bit internal process
- Easy operation and control via LAN connection to laptop
- Advanced algorithm can present transparency, smoke, reflection and shadow in detail
- Easy spill suppression with colour enhancement
- Full Foreground post processing for getting nature composite result with Background
- Multiple HDMI and SDI outputs for Program and Preview with mirror option
- Store / Recall : 3 sets of instant switchable parameters (by Control s/w)
- Key noise reduction
- Matte control to adjust black and white level for a precise chroma key setting to delete the reflective colour from foreground
- Dark/Bright/Shadow enhancement
- Post processing – correction of picture parameters (brightness, contrast, saturation) applied on foreground signal after keying processing
- Garbage Mask with soft edge
- Auto Chroma Key function
- Mirror PGM output
Accessory Items
Lumantek ez-DSK Live CG Generator
€1,700.00*
gross: €2,023.00
Lumantek ez-DSK
Lumantek ez-DSK allows easy application of subtitles, images, sequences, videos, and widgets over your video program. Connect the ez-DSK to your PC (Windows OS) through USB 3.0 and send all your graphics created with our dedicated CG software "ez-CGER.". Features that ez-DSK has are what power this CG generator. The ez-DSK gives you Zero Delay through its internal Fill & Key overlay application. It also has a Fail Safe mechanism to prevent catastrophic broadcasting disasters. At the same time, your video signals will be re-clocked with ez-DSK.
Feel safe with ez-DSK's Fail Safe. Even when powered off, your broadcasting will continue (1 SDI output port), so do not worry about it malfunctioning during your live show.
Zero Delay
The ez-DSK overlays the CG over your video stream by internally processing the Key & Fill. It gives you Zero Delay to your broadcasting. On top of that, there is no need to spend an extra port of your switcher.
Distributor and Converter
There are 4 SDI output ports, 1 HDMI output port, and 1 SDI loop out port. You can add multiple monitors to the ez-DSK without the need of a distributor. (Or a SDI to HDMI converter for that matter)
Complimentary CG software
All Lumantek CG products come with their dedicated CG software, the "ez-CGER." This software has an easy user interface to learn. You will be a pro in no time.
