DataVideo PTC-145W HD Tracking PTZ Camera

DataVideo PTC-145

Introducing the PTC-145, a versatile PTZ camera designed for enhanced visual experiences. The 1/2.8” CMOS sensor delivers outstanding image quality with 20x optical zoom and 8x digital zoom. Offering HDMI, 3G-SDI, and streaming outputs, it connects to various devices with ease. Equipped with line-in and 3.5mm microphone inputs for exceptional audio quality. This camera features one-click AI Tracking, enabling smooth camera movements without a dedicated operator. Simultaneous streaming to two platforms is effortless. Available in stylish dark blue or white options, it complements indoor design preferences. Elevate your visual excellence with the PTC-145 camera.

• Video format/Resolution: 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
• Image Sensor: 1/2.8 inch high quality HD CMOS sensor
• Effective Pixels (approx.): 2.07 Mega pixels
• S/N Ratio: ≥50dB
• Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
• Electronic Shutter: 1/30s ~ 1/10000s
• Zoom Ratio: 20x Optical Zoom, 8x Digital Zoom
• Gamma Control: N/A
• Iris Control: Auto / Manual
• Digital Noise Reductions: 3D
• On-Screen Display (OSD): English, Simplified Chinese
• White Balance: Auto, Indoor, Outdoor, Manual, One Push
• AGC / Gain Control: Yes
• HDR/WDR: N/A
• Mirror / Flip Image: Yes
• Focus Mode: Auto / Manual
• Panning / Tilting Range: Pan: 340° , Tilt: +90° to -30°
• Panning / Tilting Speed: Pan: 0.1~60°/sec, Tilt: 0.1~30°/sec
• Preset: 255 Positions
• Focal Length: f = 5.05mm (wide) to 91.49 mm (tele), F1.8(Wide) ～ F2.9(Tele)
• Field of View (Horizontal, Wide): 60°
• Image Compensation: Backlight Compensation

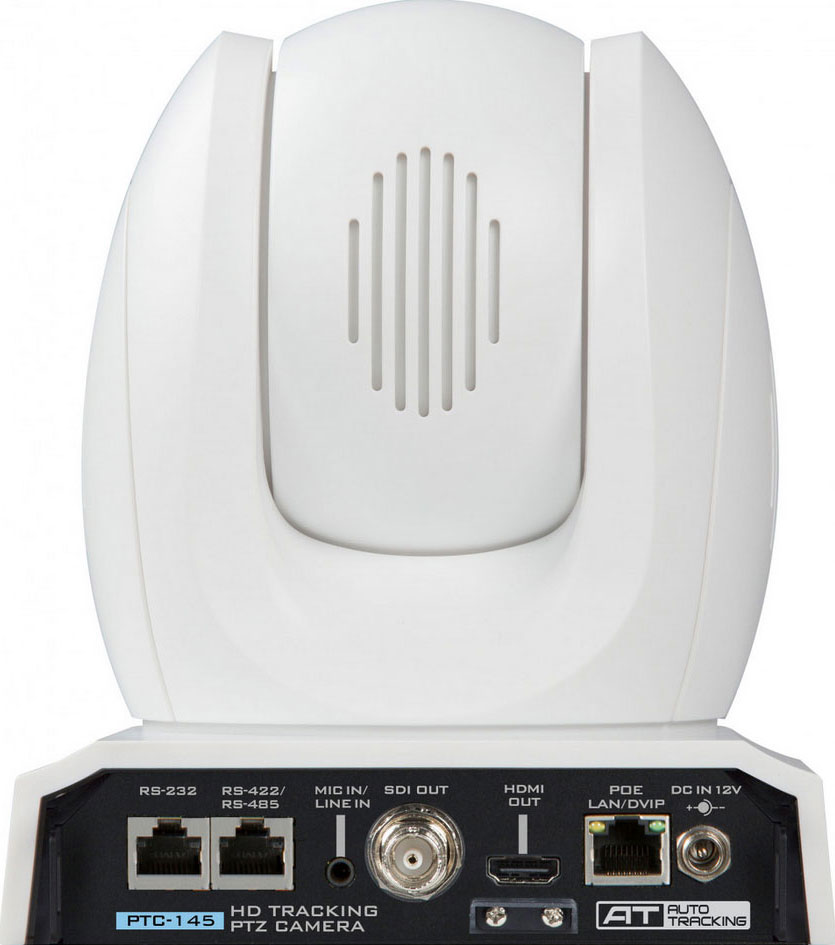

• Video Output: HDMI x 1 / 3G-SDI x 1 / RJ-45 PoE x1
• Audio Input: 3.5mm Line in
• Tally LED: Dual color (Red, Green)
• Lens Filter: M52.0 x 0.75 Thread with UV Protection
• Control Protocol: Pelco-D, Peldo-P, VISCA, VISCA over IP, DVIP, ONVIF
• Remote Control Interface: IR, Web GUI, RS-422 /RS-232/RS-485 (RJ45)
• Video Compression Format: H.264/H.265/MJPEG
• Audio Compression Format: AAC, G711
• Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
• HD IP Interface: 10/100/1000M (RJ45)
• Streaming Protocols: RTSP, RTMP(S), ONVIF, SRT(caller & listener), Multicast
• First Stream Supported Resolution: 1920x1080 / 1280x720 / 1024x576 / 960x540 / 640x480 / 640x360
• Second Stream Supported Resolution: 720x480 / 640x480 / 640x360 / 320x240
• Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
• Video Bitrate Mode: VBR, CBR
• Encoding Frame rate: 50Hz: 1-50fps / 60Hz: 1-60fps
• POE: IEEE 802.3af
• F/W Update: Via Web UI
• IR Control: Yes
• Camera Control Unit: RMC-180 series/ RMC-300 series/ PTZ View Assist APP
• Tripod Mount: 1/4-20 UNC
• Optional Accessories: WM-1/ WM-10/ WM-11
• Color: Dark Blue/White
• Dimension (LxWxH): 156 x 184 x 186 mm
• Weight: 1.6 kg
• Operating Temp. Range: 0~40 °C
• Power: DC 12V

In the box

• 1 x PTC-145 Unit
• 1 x IR remote controller
• 1 x Ceiling mount bracket-A
• 1 x Ceiling mount bracket -B
• 6 x Ceiling mount bracket screw M3*4mm
• 1 x DC 12V Power Adaptor
• 1 x Power Cord
• 1 x Safety cable
