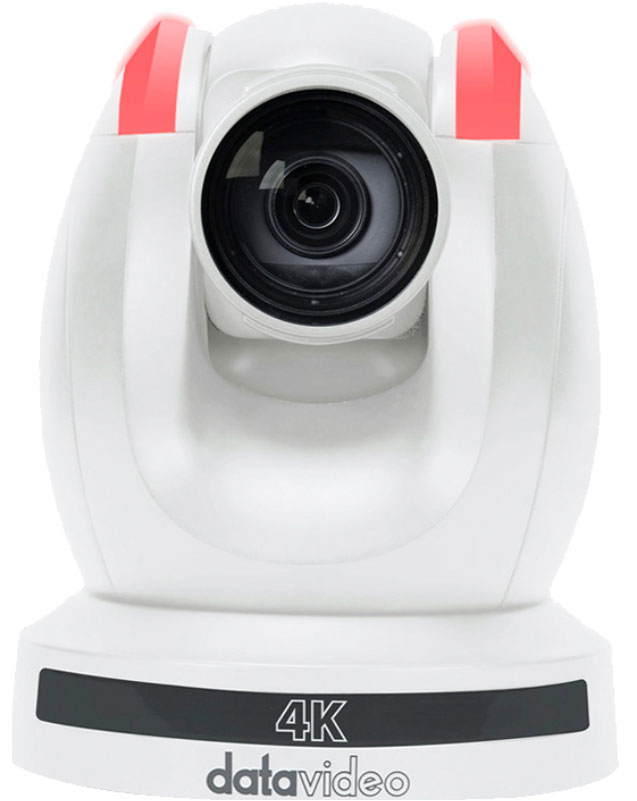

DataVideo PTC-285W 4K Tracking PTZ Camera
Free shipping
Product number:
SW26779.1
DataVideo PTC-285
Datavideo is introducing the 4K50/60p auto tracking PTZ camera, DataVideo PTC-285 can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.
Datavideo also provides extended models such as PTC-285T 4K HDBaseT and NDI to meet the needs of different workflows.
Features
Low Noise in Low Light
- Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness
Multiple Simultaneous Video Outputs
- Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50
Multiple Network Protocol with Dual Stream Function
- Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well
Compatible with Various Controller
- Control real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported

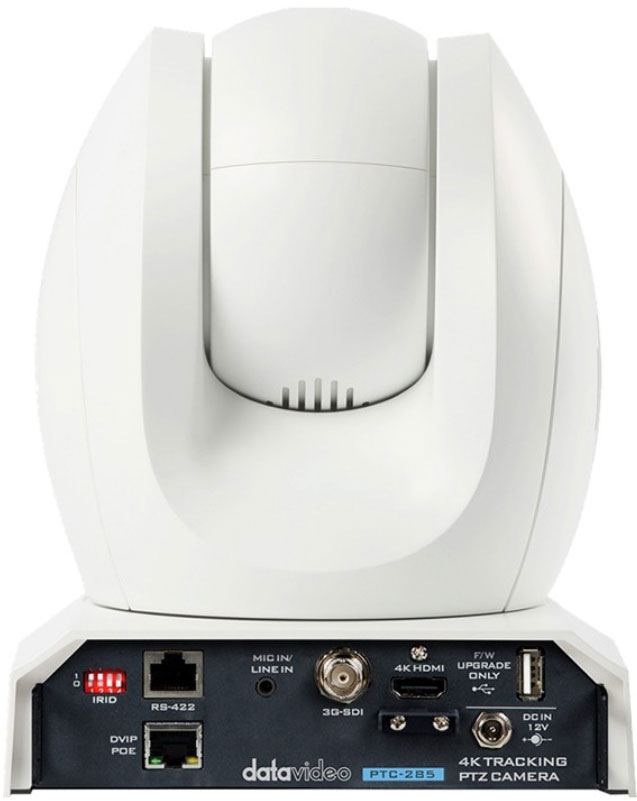

RS-422, DVIP and Ethernet Camera Control
- RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems
Power over Ethernet
- The PTC-285 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-285
Tally Light
- Green and red lights tally to show the preview and program status for broadcast applications
Wide 80° Field of View
- PTC-285 provides a wide Field of View of 80°, easily shooting all the scenes in the field
Supports H.264/H.265 Video Compression
- Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supported
Dark or Light Body
- The PTC-285 is available in dark gray or white to remain inconspicuous in permanent setups
In the box
- 1 x PTC-285 product
- 1 x RMC-1 IR remote controller
- 1 x Ceiling mount bracket-A
- 1 x Ceiling mount bracket -B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x A tightrope
