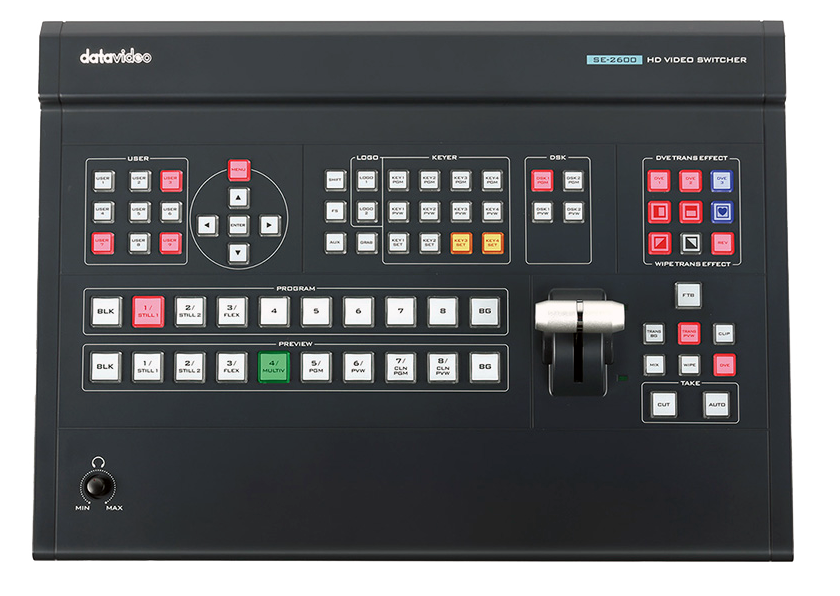

Datavideo SE-2600 HD 8-Channel Digital Video Switcher

Datavideo SE-2600

The SE-2600 series HD Video Switcher is a versatile and powerful 8-input live production switcher, ideal for professional broadcasting. Supporting 1080p/60 (3G) High Definition video resolution, it offers a mix of 4x 3G-SDI and 4x HDMI inputs, along with 6 outputs including 3x 3G-SDI and 3x HDMI. Designed for dynamic live events such as e-sports, sports competitions, and concerts, it features advanced effects like Chroma Keyers, Luma Key, DSK, PIP, and DVE. Additionally, it supports audio integration, logo insertion, title overlays, and offers a variety of transitions for a sophisticated production experience.

Datavideo 2600 HD 8-Channel Digital Video Switcher designed for various applications from OB vans to standalone switchers, allows broadcasters to rapidly initiate live productions on-site with its quick setup and user-friendly interface. The SE-2600 switcher also has powerful, easy-to-use effects, such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.

Technical data

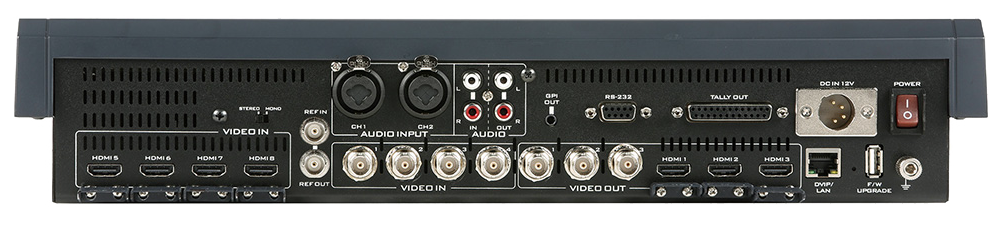

• Computer Graphic Interface: 4 via HDMI
• Video Output: 3 x SDI, 3 x HDMI, assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-8, STILL 1, STILL 2, Flex source
• Down-converted Output: 1x SDI
• Built-in Multi-view Monitoring Out: HDMI & SDI assignable
• Analogue Audio Input: 2 x XLR/MIC (6.3mm) Combo Socket, 1 x Stereo RCA set (L/R)
• Analogue Audio Output: 1 x Stereo RCA set (L/R)
• Digital Embedded Audio Support: SDI Input/Output 4 channels, HDMI Input/Output 2 channels
• Audio Delay Calibration: Up to 16 fields or 8 frames per channel
• A+V Switching: Yes
• Chromakey: 4
• Title Creator: Yes
• USK: 4x Keyer support Chromakey/ Linear/ Luma Key
• DSK: 2x DSK support Lumakey & Linear key (Key / Fill)
• Picture in Picture: 4
• Logo Insertion: 2
• Still Store: 999+ (1080p)
• Effects: Cut, Auto, WIPE, Mix, DVE, Stinger
• Transition Preview: Full transitions preview
• Sync / Reference In/Out: 1 x BNC Ref in, 1 x BNC Ref out (loop-through)
• Tally Output: 1x D-sub 25pin, dual color
• PC Remote Control: RS-232 / DVIP (Ethernet)
• Firmware Update: USB
• Special Features: User Memory Preset Free Virtual Set and Stinger transition included
• Chassis: Unibody
• Dimension (LxWxH): 431*313.2*84 mm
• Weight: 3.8 kg
• Power: DC 12V, 82W
• Operating Temp. Range: 0~40 °C

Video Format

Input

• 1080p 50/ 59.94/ 60Hz
• 1080i 50/ 59.94/ 60Hz
• 720p 50/ 59.94/ 60Hz

Output

• 1080p 50/ 59.94/ 60Hz
• 1080i 50/ 59.94/ 60Hz
• 720p 50/ 59.94/ 60Hz

Video Processing

• SDI: 4:2:2
• HDMI: YUV 4:2:2, RGB: 4:4:4

Input Routable / Crosspoint: YES

Video Input

• Total 8 live inputs
• 4 x SDI
• 4 x HDMI

In the Box

• 1 x SE-2600 product
• 1 x AD Switch DC 12V
• 1 x AC Cord
