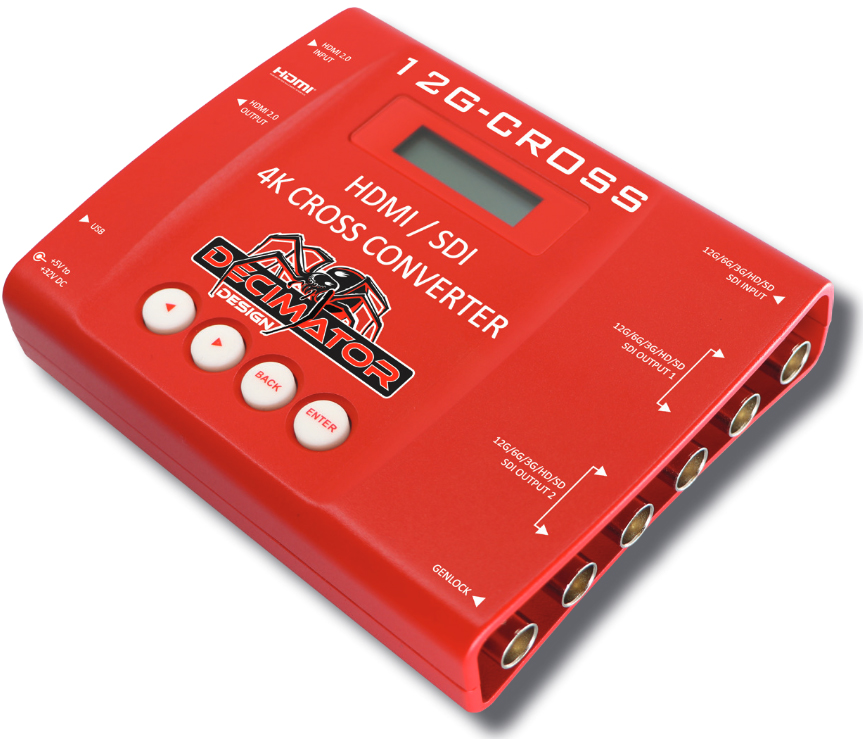

Decimator Design 12G-CROSS HDMI / SDI 4K CROSS CONVERTER

Decimator Design 12G-CROSS

The Decimator Design 12G-CROSS is a small (10,67 cm x 12,94 cm x 3,05 cm) low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan. Allowing it to be used in almost any environment.

Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.

The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input

The 12G-CROSS is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.

Related links of the manufacturer

Accessory Items

Free shipping

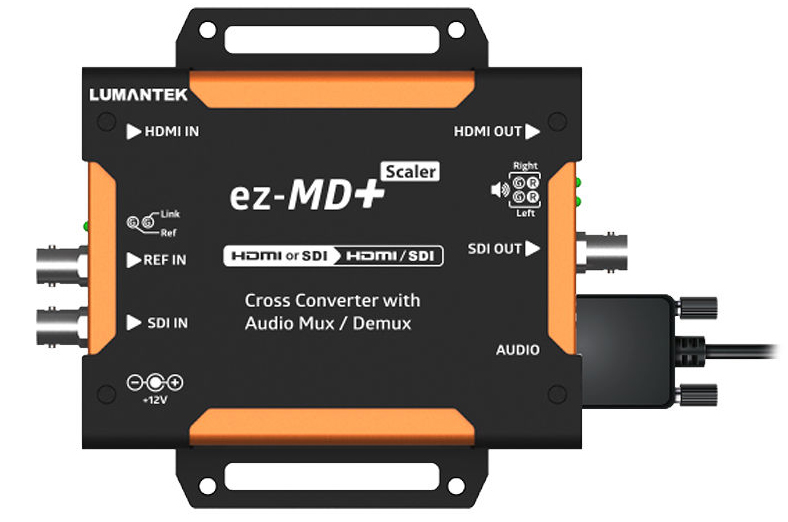

Lumantek EZ-MD+ Cross Converter With Audio Mux/Demux And Scaler
Lumantek EZ-MD+ LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with audio delay controller. LUMANTEK’s ez-MD+ is a compact Cross-Converter for HDMI to SDI or SDI to HDMI. ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by 'dip switch'. Audio embedding/De-embedding with external XLR Audio 9 pin serial port to XLR * 4 is complimentary. Audio Delay control Use the rotary switch to control the audio delay of the video source (50ms Step). Frame Synchronization There is a “Free Running”, “Input Lock”, and “Genlock” mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with external signal.

€390.00*
gross: €464.10
Free shipping
Datavideo DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter
Datavideo DAC-70 Datavideo DAC-70 is an up/down/cross converter, designed to convert video signals from VGA, HDMI, SDI with Audio input to 3G/HD/SD SDI ouptuts. Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutons like lecture theater, church, auditorium room and conference hall. Video Input formats SD-SDI: 525i, 625i3G-SDI: 1080p60/50, 1080p59.94 (Level A)HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, 1600x1200@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1280x1024@60Hz, 1024x768@60Hz, 800x600@60Hz Video Output formats SDI / HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i Supported Audio formats SDI embedded Audio: Up to 8-CH, PCM 48KHzHDMI embedded Audio: up to 8-CH, PCM 96KHz Stereo audio input: 2-CH, PCM 48KHz Features 3G/HD/SD Up/Down/Cross convertAudio/HDMI/SDI/VGA input3G/HD/SD SDI and HDMI outputCan be rackmounted using optional RMK-2 2RU Rack solutionDC 12V, 3.6 watts In the box 1 x AD Switch DC 12V1 x DIP switch Pin 8 label

€500.00*
gross: €595.00

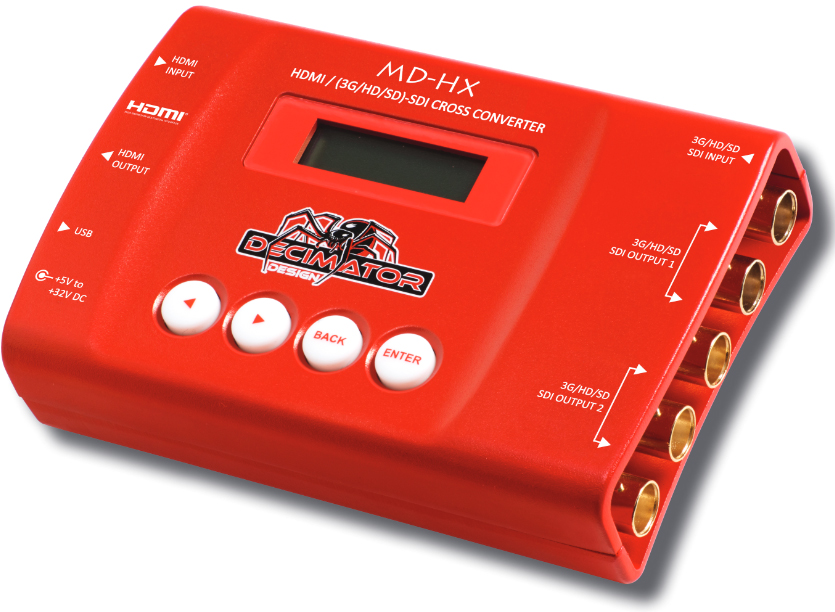

Decimator Design MD-HX HDMI / SDI CROSS CONVERTER
Decimator Design MD-HX Decimator Design MD-HX is a MINIATURE (3G/HD/SD)-SDI / HDMI CROSS CONVERTER with Scaling and Frame Rate Conversion The MD-HX is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.

€325.00*
gross: €386.75
