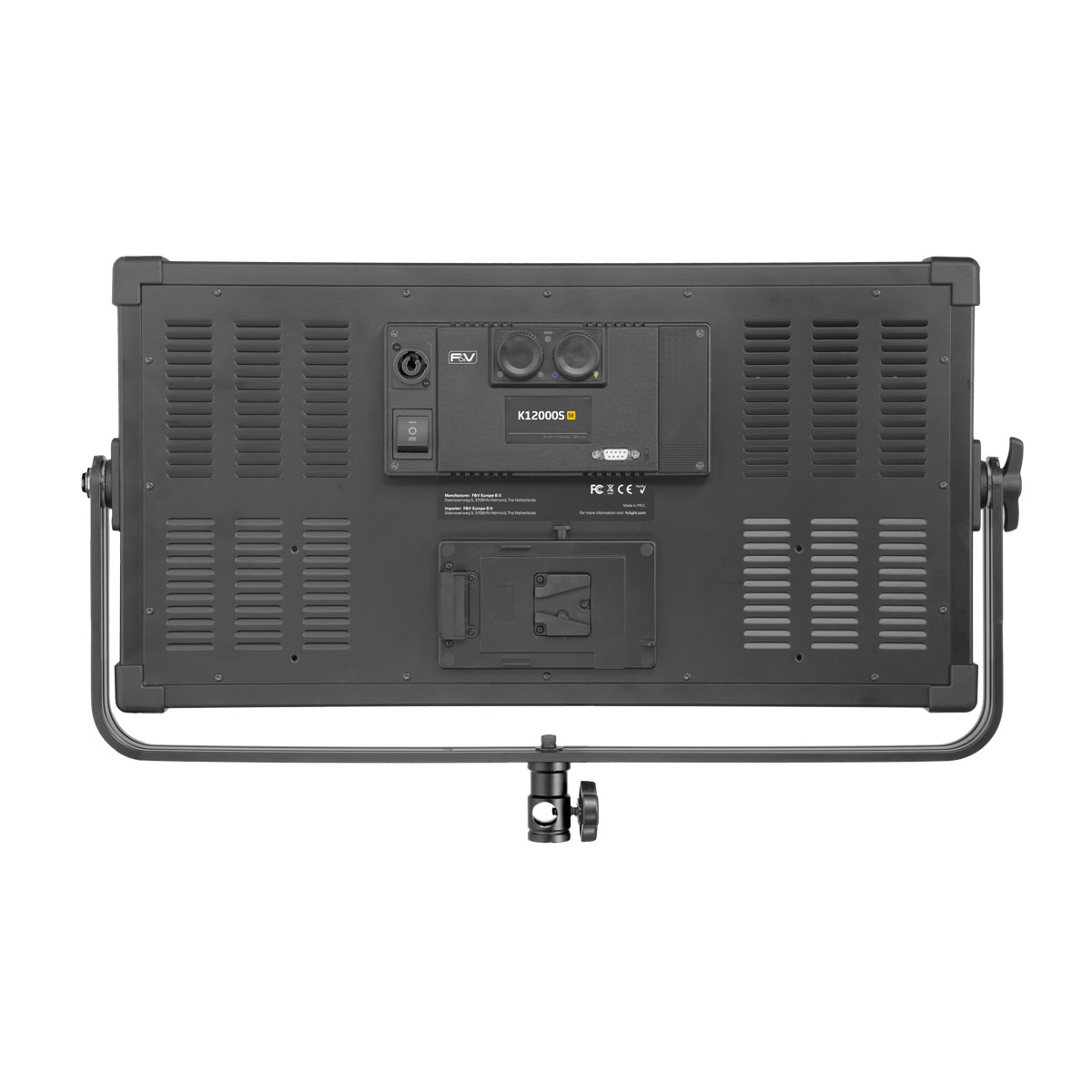

F&V K12000 SE Daylight LED Studio Panel

F&V K12000 SE Daylight LED Studio Panel

The F&V SE series of LED lights simplifies the F&V product range and combines the advantages of the F&V Lumic, F&V Plus and F&V UltraColor series and offers the highest specs, yet maintaining budget prices.

Color reproduction

  • Lumic: CRI 85-90
  • Plus: CRI 90-92
  • UltraColor: TLCI 94-96
  • SE Series: TLCI 95-99, CRI 93-97

Integrating the new F&V Quick Release system for panels, the SE series comes with a full range of optional light shaping and control tools available from the beginning to meet the lighting needs in any situation.

With a TLCI of up to 99 (97±2) and a CRI of up to 97 (95±2), the F&V K12000 SE Daylight LED Studio Panel fixtures raise the color reproduction to new heights, representing colors truthfully, neutral and vibrant.

An advanced design results in even more brightness than previous generations could achieve. Yet also the new Special Editions maintain a wide beam angle to not sacrifice softness for brightness.

Incorporating the new F&V attachment system for light shaping accessories, the F&V K12000 SE Daylight fixtures are compatible to the full range of tools like barndoors, honeycomb grids, diffusors, filterholders and softboxes.

LED SOURCE

  • Beam Angle: 50°
  • White Light: Daylight 5,600 K
  • Color Temperature Tolerance: ± 200 K (nominal)
  • Color Rendition: TLCI 95-99 (97±2), CRI 93-97 (95±2)
  • Dimming: 0 -100% Continuous
  • Control: On-Board Controller
  • Estimated LED Lifetime: 50,000 hours (15 Years of average use)

POWER SUPPLY

  • Power Voltage Range: 10 - 18 V DC
  • Input Current Range: Max. 8.01A @ 10V / 4.45A @ 18V
  • Power Consumption: 75.5 W Nominal, 80.1 W Maximum
  • Power Connection: Neutrik speak ON NL2MP (Plug: Neutrik speak ON NL2FX)
  • Battery Option: V-mount Battery Plate ×1 - Built in / 3-stud Gold Mount Plate - Optional

GENERAL

  • Thermal Design: Silent Passive Cooling
  • Mounting: 16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin)
  • Housing Color: Black
  • Ambient Temperature Operation: -20 to +45º C (-4 to +113º F)
  • Protection Class: IP 20
  • Certifications: CE (EMC, LVD, RoHS, REACH), ISO9001:2000

Details of the manufacturer

  • New Delta Europe B.V.
  • Steenovenweg 36
  • 5708HN Helmond, The Netherlands, EU
