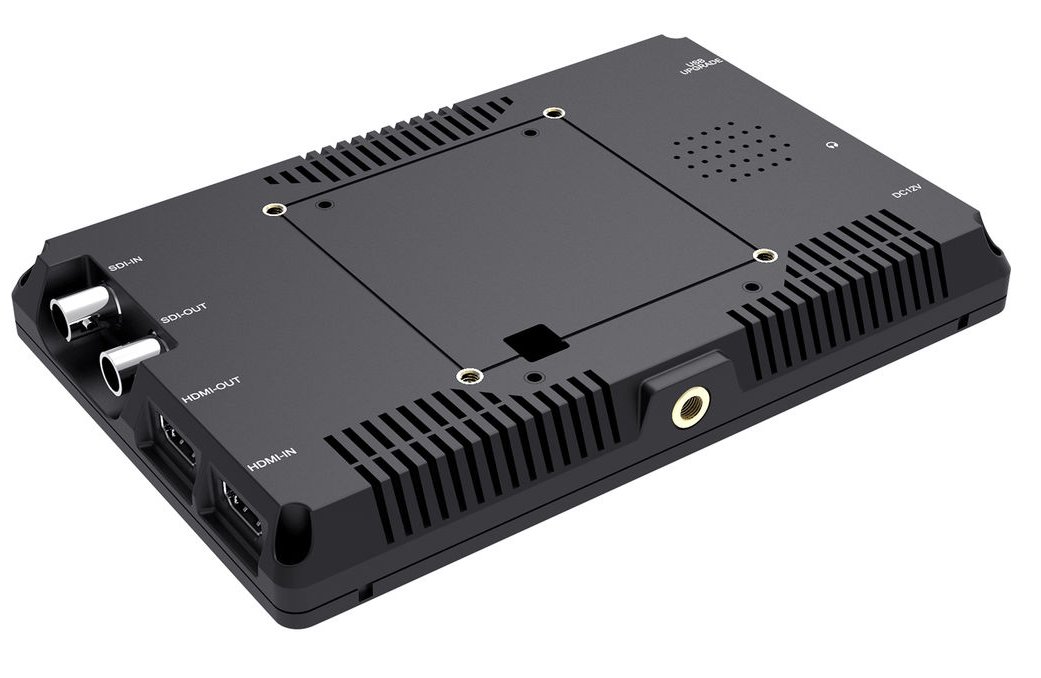

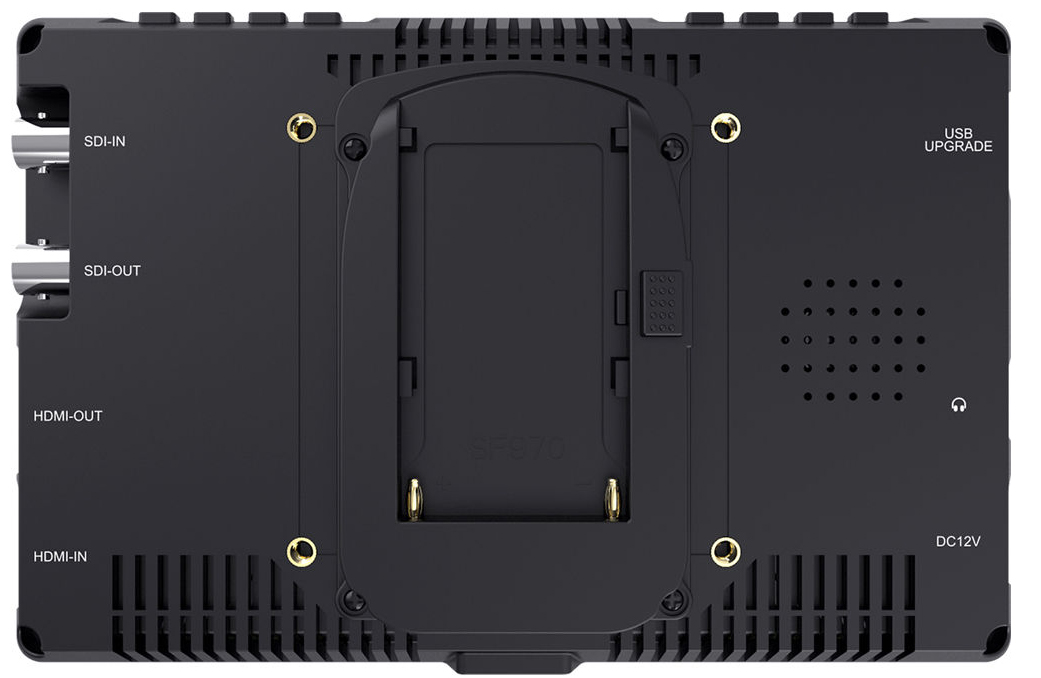

FeelWorld FW279S 7" 4K Ultra-Bright Monitor with Loop-Through (HDMI / 3G-SDI)

Feelworld F7 ProFEELWORLD F7 PRO 7-inch monitor, with full HD LCD touch screen, supports HDMI signal up to 4K 60Hz, professional and rich auxiliary composition tools, etc. The special feature of the F7 PRO is the F970 external install and power kit, it can install like wireless transmission, LED light and others equipped with a Sony F970 battery plate, and power for itMany times, when you want to use wireless video transmission, you always do not know where to put it on the monitor. With the F970 external install and power kit, not only solves this problem but also can be powered by a Sony F970 battery. The most important is that can use as a director monitor or 1st AC monitor, convenient to director monitoring or 1st AC to focus pulling, improve the efficiency of the film crew shooting.The F7 RPO provides a 7-inch screen and sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1200 high resolution and 16:10 display, 500cd/m2 brightness, 1200:1 contrast ratio, delivers excellent detail. The 160°wide viewing angle is convenient for monitoring from multiple anglesThe FEELWORLD F7 PRO is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the F7 PRO provides auxiliary power out (DC OUT 8V); allowing shooters to power their cameras. With a battery adapter cable (Optional), the F7 PRO extends camera run-time, while providing a more usable display.

Feelworld L7 Monitor The L7 7" 4K HDMI Monitor from Feelworld displays SD, HD, UHD, and DCI 4K video. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors. The touchscreen allows you to quickly access your settings, and the IPS LCD provides good off-axis viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast. The monitor's chassis is both thin and light at about an inch thick and weighing only 0,453 kg.On one side of the monitor, you'll find HDMI input and output connectors, and on the other side a 3.5mm headphone output, a 12 VDC 2.1mm barrel power input (with optional power adapter), and an 8.4 VDC 2.1mm barrel power output to power an optional accessory or your camera using a separately available cable or dummy battery. Along the bottom edge is the 1/4"-20 mounting thread, and the control buttons reside along the top edge of the monitor. The back of the monitor features a dual L-series/NP-F battery plate to provide ample power.The L7 supports custom 3D LUTs to accurately view the camera color on screen, and it supports professional Rec.709 color calibration technology. A variety of image-evaluating tools are built into the monitor including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.

Feelworld FW703 FEELWORLD FW703 4K monitor features "gold size" 7-inch full HD large screen, resolution 1920X1200, pixel density up to 323PPI. The outstanding image quality that allows you to achieve your "VISION".Precise Color to fuel your creative flowRicher, Brighter, Most ColorfulIPS Wider View Angle 160°Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. FW703 IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shiftsUse Rec.709 color standardFEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting videoAccurate Color ReproductionFEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.Ultra-thin Lightweight DesignSpecially designed to merge portability, and functionality, 22mm thickness, 320g lightweight, the FW703 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.Enjoy Efficiency OperationEasy operate button design, allowing you immediately to improve the shooting efficiency. F1, F2 custom shortcut function keys, can fast access to the functions you needs, focus assist, false color, exposure, embedded audio etc.Broadcast quality 3G-SDI, 4K HDMI monitoring，use pro or consumer camerasThe compact design of the FW703 includes 3G-SDI and 4K HDMI input/ output, USB Upgrade, 3.5mm Ear Phone Slot, Built-in Speaker. Its SDI Input supports all SD, HD and SDI formats up to 1080p 60Hz and HDMI input supports formats up to 4K 2160p 30Hz, perfect support for almost all signal3G-SDI and 4K HDMI Loop-outThe FW703 has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video qualityStandard Hot Shoe Mount 360° RotationHot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripodCollapsible SunshadeFor easier viewing in bright environments. FW703 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrastFlexible Battery SystemThe FW703 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional).Key FeaturesHigh Resolution: Full HD 1920x1200High Contrast: 1200:1High Brightness: 450cd/m²160°wide viewing angles IPS PanelUltra thin design 22mm thicknessHistogramPeaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus) False ColorsZebra ExposureNine GridEmbedded AudioScan Mode (Under Scan, Over Scan)Zoom (4x,9x,16x)Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)Pixel to PixelCenter MarkerSafe Area (80%,85%,90%,93%,96%,2.35:1)Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)Marker Color (Red,Green,Blue,White,Black）Check Field (Red/Green/Blue/Mono)Image Flip (H, V, H/V)Image FreezeZoom All (0~100 adjustable)U/D & L/R Zoom (0~100 adjustable)Color Temperature Adjustment

SWIT CM-S73H The SWIT CM-S73H adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, viewable under sunlight, and support PQ, HLG, S-log3 HDR display. The native resolution is Full HD 1920×1200, contrast 1200:1 CM-S73H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files. CM-S73H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable. CM-S73H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor. CM-S73H supports DC 6.5-17V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power. The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into CM-S73H monitor to upgrade, without PC connection. Features 7” non-glaring LCD, 1920×1200 resolution3000nit super high brightHDR capable: PQ / HLG / S-log2K/3G/HD/SD-SDI input & loop outputHDMI 2.0 (4K60p) input & loop output16-ch embedded audio meters with alertSelect any 2 audio channels to output9 steps quick zoom-in and mappingFocus assist with precision adjustmentBuild-in multi-camera logs to Rec.709User 3DLUT cube file import by USBOn-screen TALLY display and GPIZebra stripes, False color, R/G/B/MonoH/V delay, AFD, Timecode displayMarker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1V/Gold mount or various DV plates optionUSB firmware upgrade

Neway CK710S 7’’ 1920x1200 Resolution Metal Monitor 500cd/m²Brightness, 1000:1 ContrastHDMI & 3G-SDI in and outSupport SDI and HDMI cross conversionIntegrated recording info displaySDI format supports level A & level B Functions Time codeImage FlipColumn(YRGB) Pix to pixHistogramLevel meterExposureWaveformCheck fieldPixel zoomColor barVector scope Peaking The operator adjusts the focus control until the red outlines on the desired area are clear, indicating optimal focus. For the best results, be sure the subject is properly exposed. Enjoy taking your photos!Check Field Check field function has 4 modes: Mono,R,G,B.Precise color It features 7”16:10 LCD panel with 1920x1200 full HD resolution (324ppi),1000:1 high contrast,165° wide viewing angles, 500cd/m² high brightness, which offers outstanding viewing experience. Metal housing Thinner (22mm) with a firm metal body,makes a better protection from vibration, drop & bad environment outside.Longer life time for the device. SDI and HDMI cross conversion The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output. Integrated recording info display Neway creatively integrated column (YRGB peak),time code, waveform,vector scope&audio level meter into field monitor. These assist users to accurately monitor when shooting,making ande playing movies/videos. In the box Folding sun shade cover12V DC adapterHDMI A/C cableShoe mountVESA Battery plateBattery plate brackeManualBattery plate Model F970 -- For battery of SONY DVModel DU21 -- For battery of Panasonic DVModel QM91D -- For battery of SONY DVModel NWLP-E6 -- For Canon 5D Batteries
