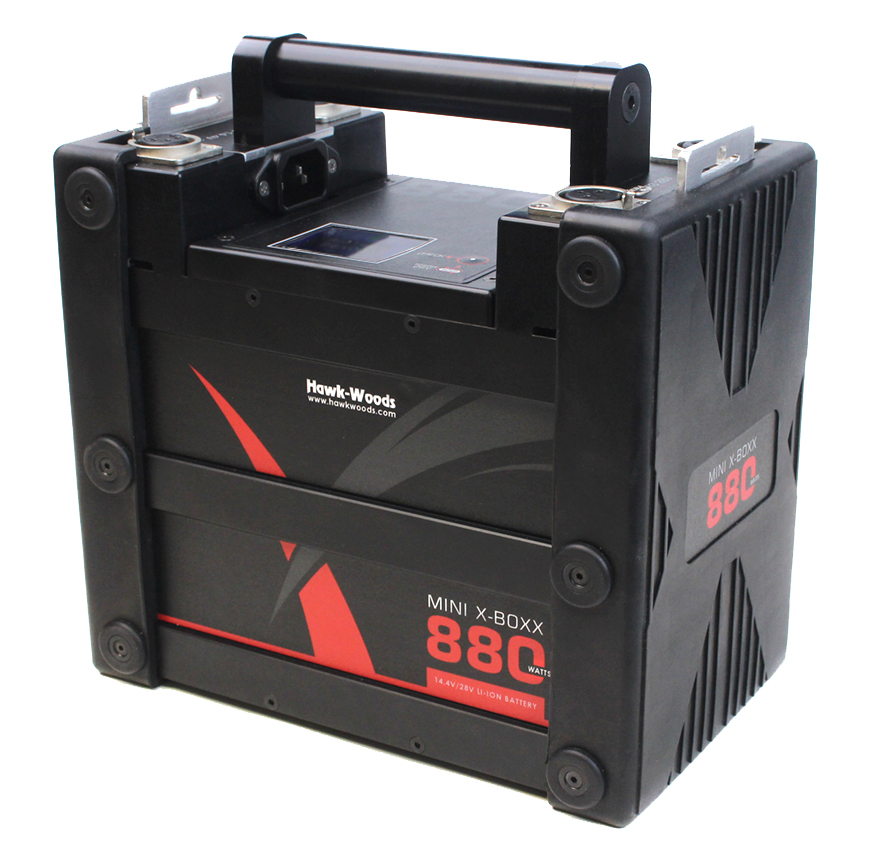

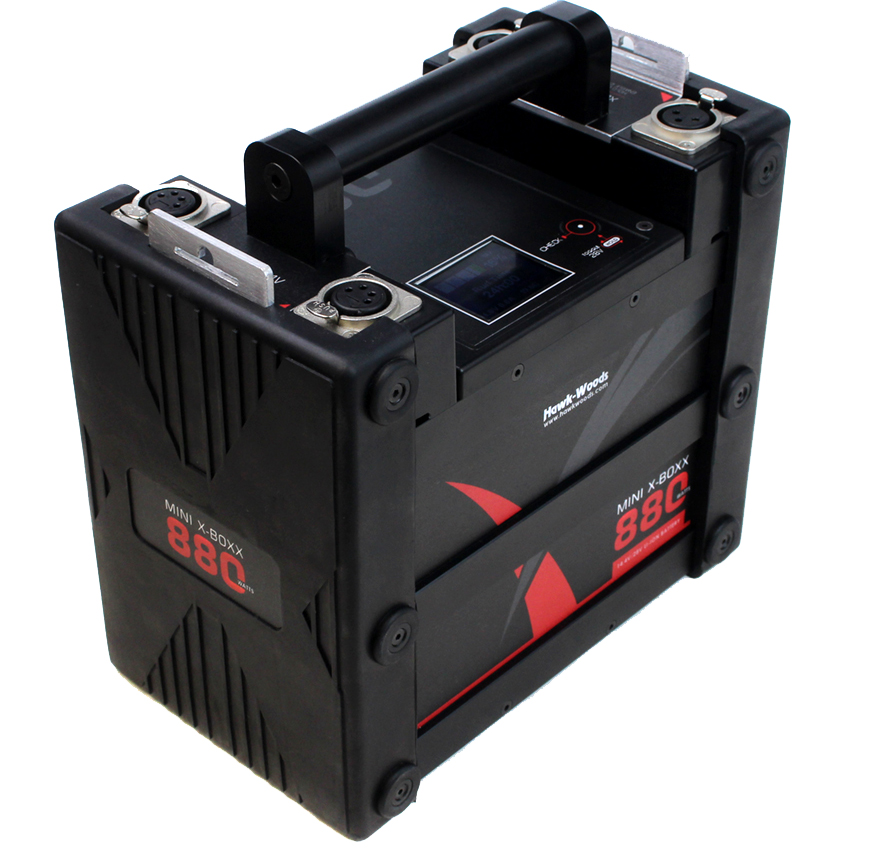

Hawk-Woods MXB-880 Mini X-Boxx Battery & Charger

Core SWX Maverick Block Battery The Core SWX Maverick Block Battery is the next generation, all encompassing block battery system for cinema and lighting applications. Mobile Power Station with High Current Delivery Built for high demand situations, the MV6 can sustain up to 20A draw on both 14v and 28v outputs simultaneously, plus provide USB and ptap outputs. Built with premium Nickel Metal Hydride cells from Japan, this pack will sustain several thousand cycles of usage with minimal degradation and allow for easy aire shipping and travel. Aux Power with Preventative Maintenance Functions Being a complete mobile power station means you must be able to power all devices on location. The MV6 includes 2 ptap outpus (12-17vdc) to power auxiliary devices and a 5v USB output to charge mobile devices. The green Smarttap also can provide battery diagnostics on the internal cell packs within the unit and the USB doubles as a firmware upgrade port allowing fas "drag and drop" updates by plugging in to a PC. Modular Build Core designed the MV6 understanding the need for predictive service. The modular build allows for quick service and if necessary, replacement of the charger module and battery cells. Less downtime and labour time, equates to more uptime, useability and ROI. A Friendly Form Factor Understanding many already have shipping cases from their older block battery packs, the MV6 was designed to fit in legacy shipping cases. With the new MV6, you can use the rear compartment, previously used for old charging stations, for additioanl cabling and accessories. The Nickel Metal Hydride cell composition allows for easy shipment and air travel. The form factor also works with the existing dolly install base making the Maverick and "on-dolly" power station. Backlit Runtime LCD with Diagnostic Reporting The MV6 features a Runtime LCS similar to that of our on-board packs. The LCD prides 3 phase status reporting; Reports 100w dummy load runtime when not in discharge/chargeCalculates remaining runtime when in use based on actual loadCalculates remaining charge time when charging Internal Charging The MV6 has a standard IEC AC input for charging from AC Mains. Plug the unit in to 110-240V AC and it will charge back up in 5hrs. An LEC array in the handle illuminates when charging to display charge status from afar. The LED array can also display capacity status when in use. A recessed switch in the handle allows for control of the lED brightness as well as disabling the LED array. Water Resistant The Maverick was designed to handle the rigours of productions and we know that sometimges means inclement weather and puddles. It's all aluminium modular design provides a robust form while providing up to 7.5" of water resistance.

Core SWX Renegade XL SKU: RNG-XL1 Core SWX Renegade XL is a Li-Ion block battery with 14v, 28v, and 48v outputs. The Renegade XL model is Lithium Ion (Li-Ion) based power station encased in a cast aluminum housing, with a capacity of 1376wh. The Renegade XL1's ability to deliver 15v, 28v, or 48v making it a versatile power source for various cinema equipment, including cameras, lighting, and other accessories. With its high capacity and multiple output options, it can power a variety of devices simultaneously, providing a reliable power source for your production needs. The Renegade XL’s new dynamic color OLED display can provide the same runtime LCD as with the Renegade and Maverick but also offers additional function and battery status. As Aux outputs always a welcomed inclusion, the Renegade XL is complimented by 2 ptap ports and a USB which can power mobile devices but doubles as a FW update port. One of the two ptap ports also supports Voltbridge Mesh, allowing for cloud fleet battery management. The Renegade XL's groundbreaking built-in charging system, can recharge its massive 1376Wh capacity in just 5 hours, was first introduced on it’s nickel metal hydride cousin, the Maverick. Moreover, the Renegade XL also provides unparalleled flexibility and efficiency with the optional SFQ40 rapid charger, which can charge one Renegade XL in an astonishing 2.5 hours, setting a new industry benchmark in the cinema world.  Technical data Cell Chemistry: Li-Ion Capacity: 1376Wh(14.8v, 93Ah) Size: 24,28 cm x 34,80 cm x 13,46 cm Weight: 14,86 kg Voltage Outputs: 2x XLR 4p 14v(DC 11-17v), 1x XLR 3p @28v (regulated), 1x PowerConn @ 48v(regulated) Max Load: 12A @ per 14v, 12A @ 28v, 15A @ 48v) Built-in Protections: Temperature(internal), Voltage(internal), Current(resettable external and internal) Capacity Monitoring: OLED Display and LED Handle Aux Output: 2x Ptap(10A, 14.4v unregulated) USB Output: 1x USB-A(5v, 3A) Charge Time: 5.5hrs with built-in charger or 2 hours with SFQ40 external charger AC Mains Input: 100-240VAC 50/60Hz Build: Cast and Sheet Aluminum

Core SWX Renegade SKU: RNG7 Core SWX RNG7 is a LiFEPO4 block battery with 15v, 28v, and 48v outputs. The Core SWX Renegade is a 777wh, Lithium Iron Phosphate(LIFEPO4) power station incased in a polycarbonate housing offering a lighter option to the Maverick and new Renegade XL. It can deliver 15v, 28v and 48 simultaneously with up to a 1200w output. From a fully discharged state, the included PFQ8 external charger can recharge the Renegade in less than 3.5 hours. A runtime LCD, similar to that found on our Maverick power station, provides up to the minute runtime/charge time and percentage capacity, as well as an approximate runtime when in standby. Technical data Cell Chemistry: LiFEPO4 Capacity: 777wh(28.8v, 27AH) Size: 24,28 cm x 34,80 cm x 13,46 cm Weight: 9,83 kg Voltage Outputs: 2x XLR 4p 15v(regulated), 2x XLR 3p @28v(DC 22.5v-32.85v), 1x PowerConn @ 48v(regulated) Max Load: 20A @ 15v, 20A @ 28v, 15A @ 48v) Built-in Protections: Temperature(internal), Voltage(internal), Current(resettable internal) Capacity Monitoring: Backlit LCD Charge Time: 3.5hrs with PFQ8 external charger(included) AC Mains Input: 100-240VAC 50/60Hz Build: Polycarbonate and Sheet Aluminum

Core SWX Renegade XL 48 SKU: RNG-XL48 The Renegade series is a new series of power stations/block batteries that consists of 3 different models - Renegade, Renegade XL, and Renegade XL 48.  The Renegade and Renegade XL both have 4-pin 15v, 3-pin 28v, and powerconn for 48v, then the Renegade XL 48 has the two 48v to be able to power lighting such as the Aputure 1200D at full output. Open your door to these new products to experience the next generation of power stations offering super high capacities with the fastest recharge times in the industry yet! The Core SWX Renegade XL48 variant has got you covered with its dual 48v, 15amp outputs capable of powering an Aputure 1200D at full output using just a single battery source. From a fully discharged state, the internal charger can recharge the RenegadeXL in less than 5 hours. With the available(but not included) SFQ40, the Renegade XL can recharge in less than 2 hours. The external charge ports also serve as “daisy-chain” ports to allow you to connect several Renegade XL’s in parallel to increase available battery capacity. Features 2 Year WarrantyDaisy ChainInternal ChargingMobile Power StationModular BuildOLED DisplaySFQ External Rapid ChargeSmart TapUSB Power Technical data Cell Chemistry: Li-Ion Capacity: 1376Wh(14.8v, 93Ah) Size: 24,28 cm x 34,80 cm x 13,46 cm Weight: 14,86 kg Voltage Outputs: 2x PowerConn @ 48v (regulated) Max Load: 15A each, 30A total Built-in Protections: Temperature(internal), Voltage(internal), Current(resettable external and internal) Capacity Monitoring: OLED Display and LED Handle Aux Output: 2x Ptap(10A, 14.4v unregulated) USB Output: 1x USB-A(5v, 3A) Charge Time: 5.5hrs with built-in charger or 2 hours with SFQ40 external charger AC Mains Input: 100-240VAC 50/60Hz Build: Cast and Sheet Aluminum
