Hedbox NERO M 150Wh Li-Ion V-Mount Battery

€250.00*

gross: €297.50

Available, delivery time: 1 day

Product number: SW23950

Hedbox NERO M

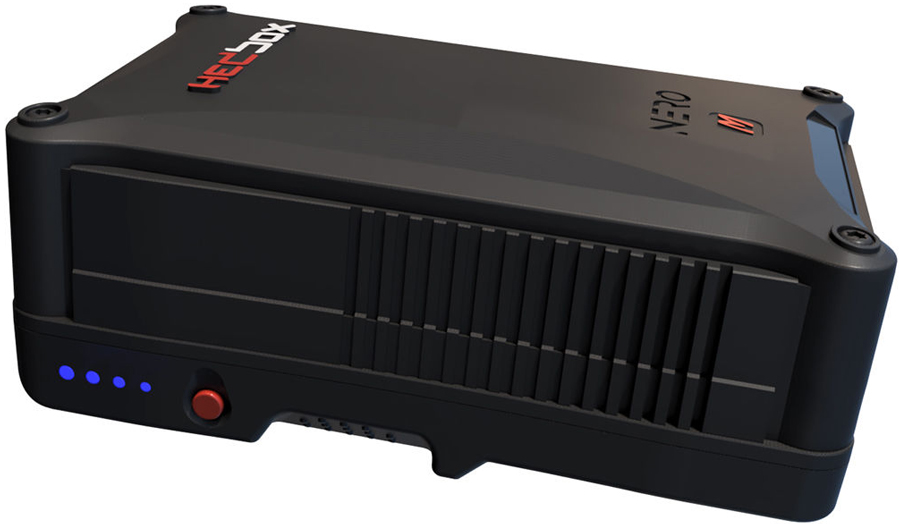

Hedbox NERO M represents the medium cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO S can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery.

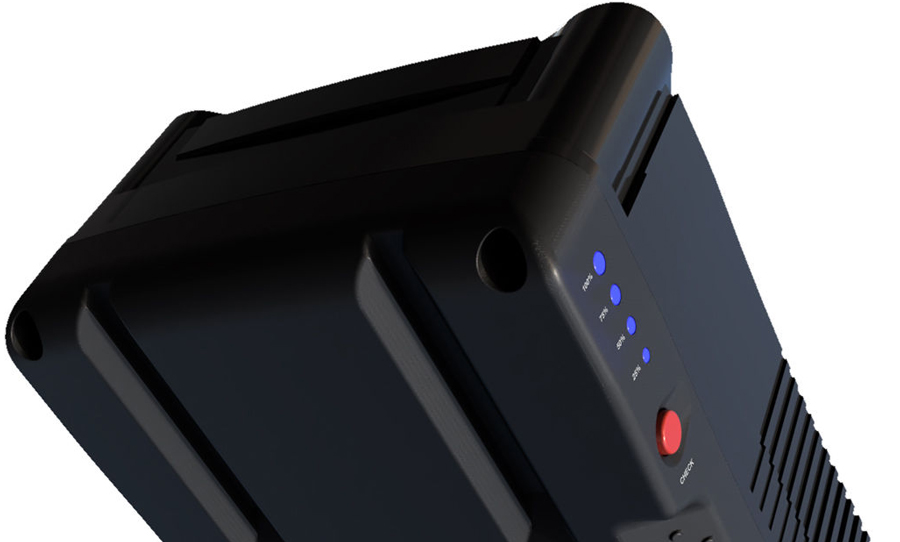

NERO M contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%. NERO M has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting.

Through it’s additional integrated D-Tap DC Power output the NERO M can deliver 14.8V, 118W/8A to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery.

Technical data

Model: NERO M - Professional HIGH LOAD Lithium-Ion Battery Pack

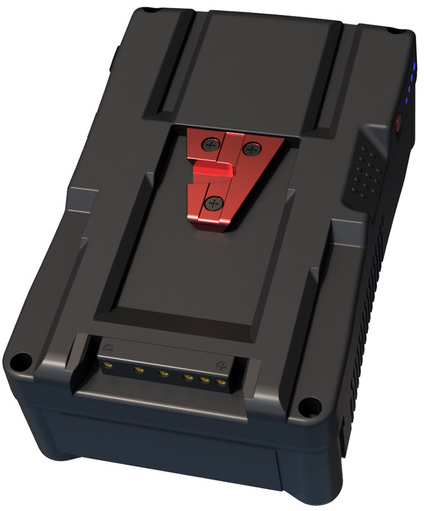

Mount Type: V-Mount ( V-lock holder )
Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )
Product Color: Dark Grey
Bat. Cell Model: LG High Load Stand 18650 x 16
Bat. Cell Chemistry: Lithium-Ion
Output Voltage: 14.8V DC
Minimum Out Voltage: 10.0V DC ( Auto Power Control )
Capacity: 10400 mAh / 150 Wh
Maximum Load: 13A / 190W

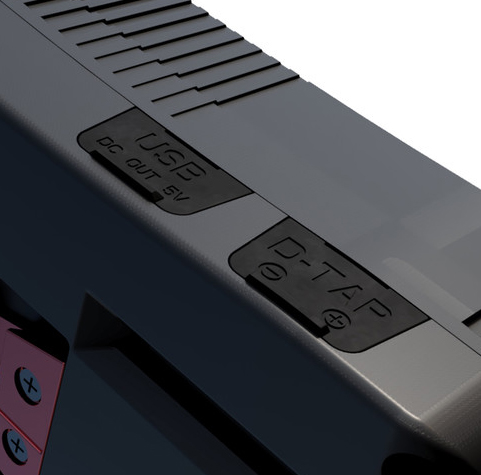

USB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )
D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )

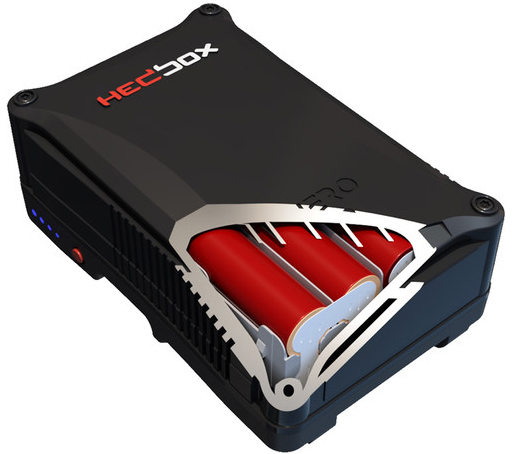

Internal Protection: Cells Framing Construction System
Maximum Charge: 16.8V / 3.0A
Dimensions (WxHxD): 152 x 96 x 60 mm
Operating Temperature: –20°C to +45°C
Weight: 880 g
