Hedbox NERO S 98Wh V-Mount Battery

€180.00*

gross: €214.20

Available, delivery time: 1-3 days

Our availability in the Christmas in-between period: we will be closed from 23.12.2024. All orders placed during this period will be accepted, but shipped after 06.01.2025. We wish you a Merry Christmas and a Happy New Year.

Product number: SW23944

Manufacturer: HedBox

EAN: 0712323920650

Manufacturer product number: NERO S

Delivery time: 1-3 days

Hedbox NERO S

The new NERO series of Hedbox stands for High Performance and High Safety Design. The new and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells. Compared to all the other Battery Brands this new advance system not only makes the NERO batteries much safer for daily professional use but also for transportation.

NERO S represents the smallest cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO S can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery.

Technical data

Model: NERO S Professional HIGH LOAD Lithium-Ion Battery Pack

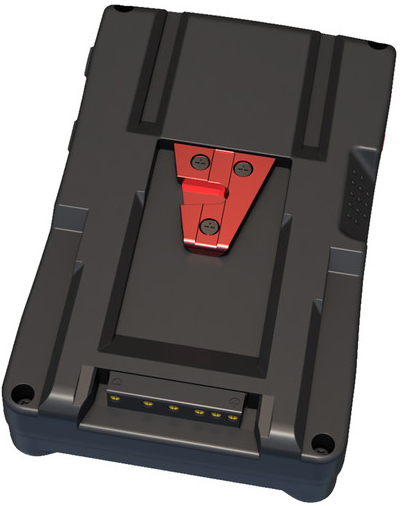

Mount Type: V-Mount ( V-lock holder )

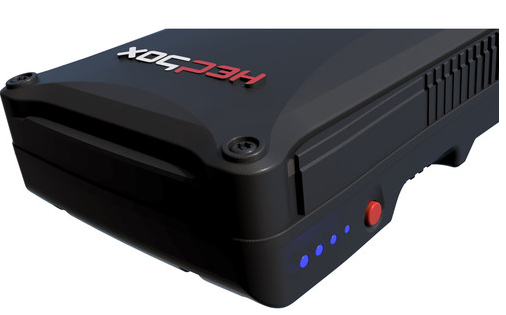

Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )
Product Color: Dark Grey
Bat. Cell Model: LG High Load Stand 18650 x 8
Bat. Cell Chemistry: Lithium-Ion
Output Voltage: 14.8V DC
Minimum Out Voltage: 10.0V DC ( Auto Power Control )
Capacity: 6700 mAh / 98 Wh - On AIR Transport Certification
Maximum Load: 10A / 145W

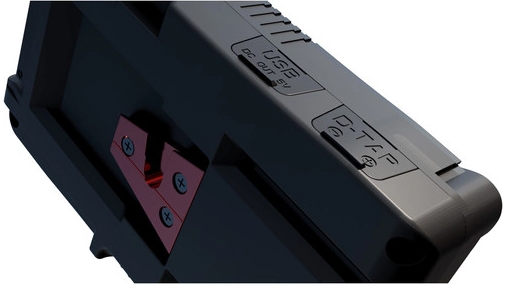

USB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )
D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )

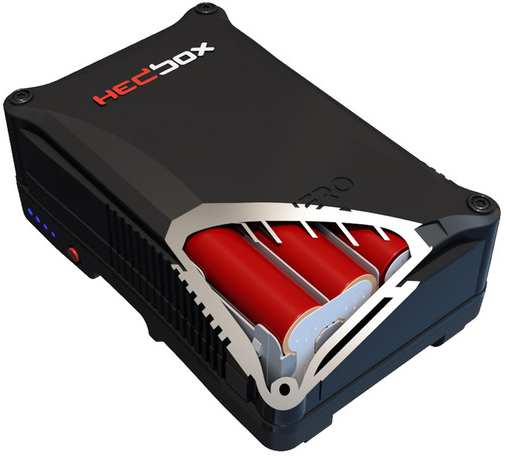

Internal Protection: Cells Framing Construction System
Maximum Charge: 16.8V / 3.0A
Dimensions (WxHxD): 152 x 96 x 41 mm
Operating Temperature: –20°C to +45°C
Weight: 560 g

Details of the manufacturer

HEDBOX
Poslovna Cona A10
4208 Sencur, Slovenia, EU

https://www.hedbox.com/contact/

Warnings and safety information

HED-A60 - OPERATION MANUAL

HED-BP95D - OPERATION MANUAL

HED-BP75D - OPERATION MANUAL

HED-DC150V - OPERATION MANUAL

NERO L / NERO LX - OPERATION MANUAL

NERO M / NERO MX - OPERATION MANUAL

NERO S / NERO SX- OPERATION MANUAL

NINA-M - OPERATION MANUAL

NINA-L - OPERATION MANUAL

RP-DC50 - OPERATION MANUAL
