Kiloview D350 V2 4K UHD H265/H.264 Video Decoder

Kiloview D350 V2

The D350 is a professional hardware decoding device that can simultaneously decode up to 9 network video streams and then output them through both 3G-SDI and HDMI interfaces in synchronization, with up to 4Kp60 output resolution. With a built-in LCD screen, users can monitor the IP status and decoding parameters in real-time. The Kiloview D350 additionally allows dynamic switching, background / LOGO overlay, custom split display of a video stream, and other features.

D350 supports simultaneous decoding of up to 16 channels of video streams(It depends on the resolution*). It allows for customization of multi-output display including grid and PIP. With D350’s incredible performance and three output ports(two HDMI 2.0 ports and one 3G-SDI port), It’s also capable for outputting in three ways: Independently, Combine multi-channels video flows or replicate of one single flow to stream simultaneously. Besides outstanding performance in video decoding, D350 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, It’s also capable of switching audio On/Off, audio mix and audio gain in real time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.

Technical data

  • Audio Formats: AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
  • Latency: NDI High Bandwidth&NDI|HX:<50m, Others:100~120ms(Adjustable)
  • Streaming Protocols: NDI High Bandwidth/NDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/ HLS/TS over UDP/RTP/ RTSP
  • Layouts: 1/2/3/4/5/6/7/8/9
  • Intercom: Yes
  • Display: LCD Screen
  • OSD: Yes
  • Network: 2×100M/1000M RJ-45 Ethernet ports
  • USB: 1*USB Type-A, 1*USB Type-C
  • Power Supply: 12V, 1A DC
  • Tally: Yes
  • Management: WebUI/Kiloview KiloLink Server
  • Firmware Upgrade: WebUI/Kiloview KiloLink Server
  • Power Consumption: 12V, 1A /6W
  • Dimension: 140×105×28mm
  • Weight: 328.18g
  • Operating Temperature: -20~60°C
  • Audio Formats: AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
  • Audio output: SDI/HDMI embedded or analog audio output

Video output

  • 2×HDMI2.0, up to 4KP60
  • 1×3G-SDI, up to1080P60

Video Formats

  • H.264(AVC) compatible with Baseline/Main/High Profile, up to Level 5.2
  • H.265(HEVC) compatible with Main Profile, up to Level 5.1
  • SpeedHQ(NDI High-bandwidth)

Video Decoding Capability

  • H.264(AVC)/H.265(HEVC): Up to 16 channels in 1080P30, 9 channels in 1080P60, 2 Channels in 4KP60
  • NDI High Bandwidth: Up to 6 channels in 1080P30, 4 channels in 1080P60 or 1 channel in 4KP60

Latency

  • NDI High Bandwidth&NDI|HX:<50ms
  • Others:100~120ms(Adjustable)
Related links of the manufacturer

Similar products

Free shipping

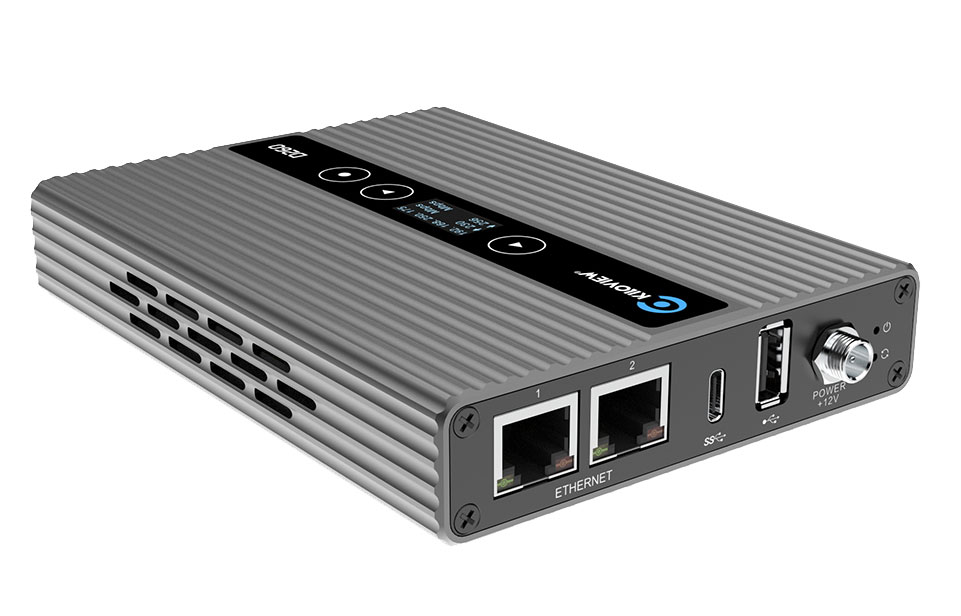

Kiloview D260 4-Channel HD H.265 HDMI / SDI Decoder
