Kiloview N6 HD HDMI NDI Bi-Directional Converter

Kiloview N5/N6 Full-Functional NDI Converter

Kiloview N5/N6 is a bi-directional NDI converter that supports 3G-SDI/HDMI input (encoder) and loop output(decoder). With the support of both NDI high bandwidth and NDI HX2/3, N5/N6 is capable of processing all NDI sources from any camera, software or device. Featured with powerful functions such as PoE, LCD display with big-sized tally, PTZ control, 3.5mm audio line in/out, multi-channel audio encoding, intercom and centralized management, N5/N6 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.

• N5: 3G-SDI I/O
• N6: 1080P HDMI I/O

Kiloview N5/N6 supports encoding/decoding of NDI High Bandwidth and NDI HX 2/3. Both NDI encoding and decoding can work within this compact device. Switch the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.

• In encoding mode, N5/N6 can encode 3G-SDI/HDMI signal into an NDI High Bandwidth/NDI HX 2/3 video stream
• In decoding mode, N5/N6 will automatically adapt the NDI High Bandwidth/NDI HX 2/3 and output through 3G-SDI/HDMI.

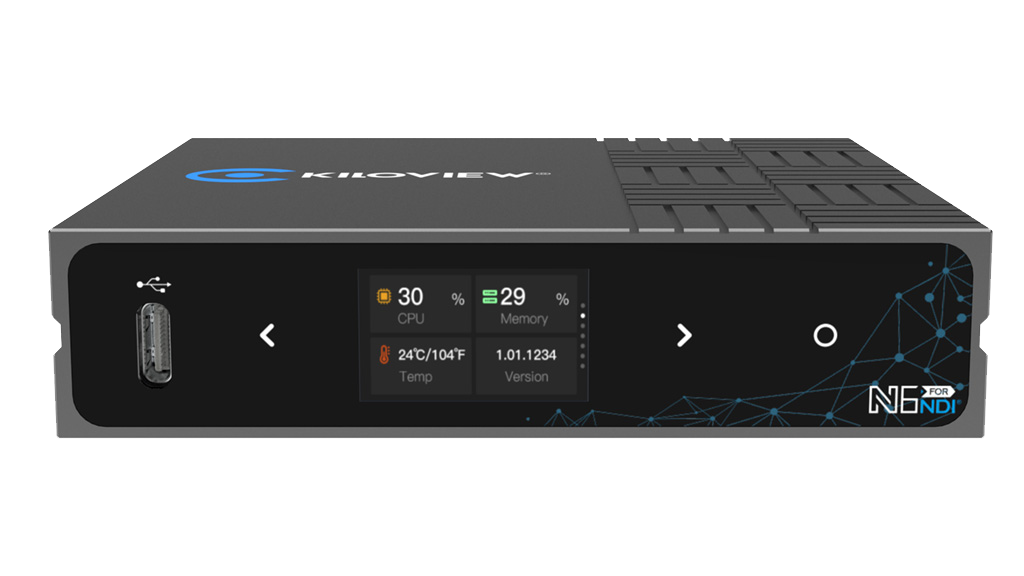

N5/N6 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time.

Kiloview N5/N6 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP with different protocols, no extra cable required.

N5/N6 technical data

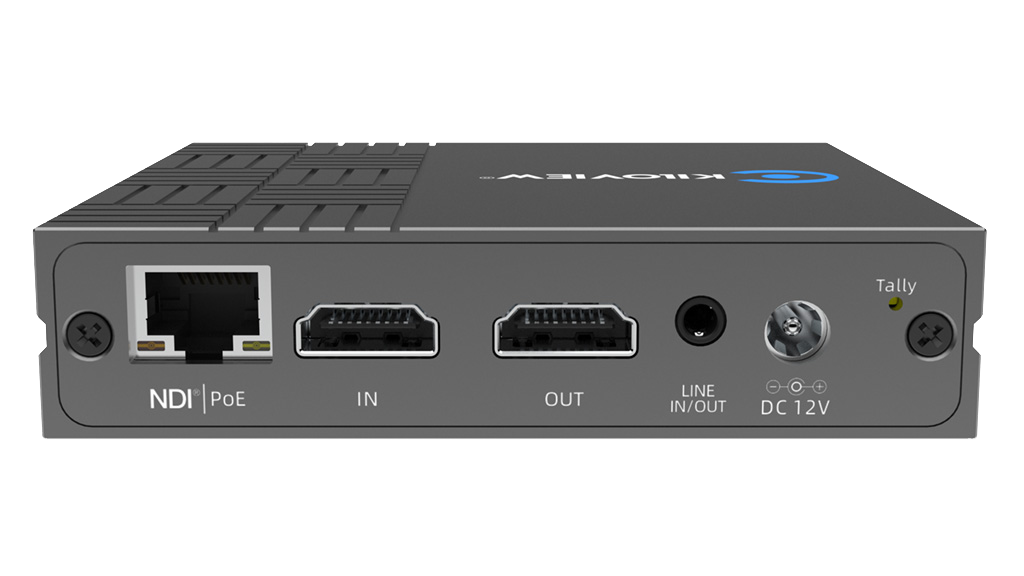

• Video Input: N5: 1*3G-SDI; N6: 1*HDMI
• Video Output: N5: 1*3G-SDI ( Loop-out ); N6: 1*HDMI ( Loop-out )
• Audio Ports: 1*3.5mm Line I/O
• Network Connections: 1*RJ45 1000Mbps Ethernet port (with PoE)
• Video resolution: Encoding&Decoding: Up to 1080p60


NDI Codec Features

• NDI Highbandwidth: YCbCr 4:2:2 8bit 125Mbps in 1080p60
• NDI|HX: YCbCr 4:2:0 8bit 80Mbps in 1080p60

• USB Webcam Input: Yes
• Tally: Yes
• Power Supply: PoE/DC/D-tap
• PTZ Control: Yes
• DHCP: Yes
• Management: WebUI/KiloLink Server
• Power Consumption: 6w
• Operating Temperature: -20~45℃
• Storage Temperature: -20~70℃
• Size: 100mm*80mm*24 mm
• Weight: 272g
