Kiloview P3 5G Wireless Bonding Encoder

Kiloview P3

Kiloview P3 is a new generation of 5G bonding video encoder based on KiloLink, supporting multi connections bonding: 4-channel 5G cellular network, WIFI and Ethernet. P3 is equipped with dual video inputs of 3G-SDI and HDMI with resolution up to 4Kp30 through its HDMI input and up to 1080p60 through its SDI input. Upgraded H.265 encoding capability and perfectly adaption to KiloLink Server ensure the best quality of multi-protocol live streaming and video transmission.

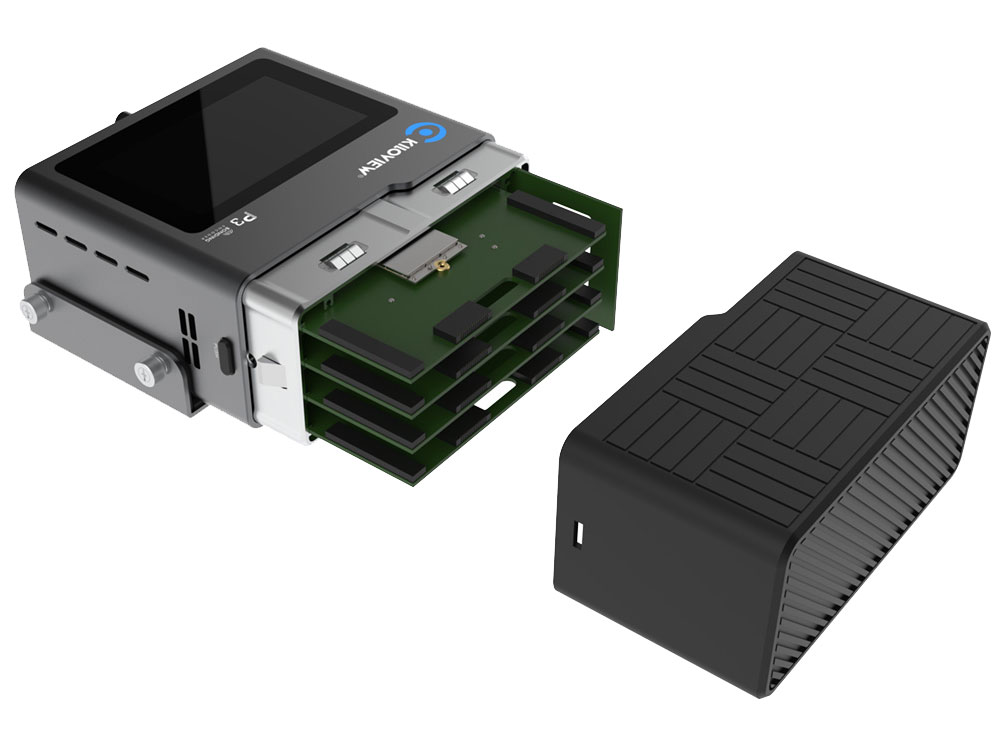

With P3’s modular design, end users can flexibly pick the 5G/4G/WiFi modems to adapt the most challenging field scenarios. P3 supports up to 6 connections bonding to maximize the video transmission capacity: 4-channel 5G cellular, WiFi and Ethernet. Each 5G modem can also be replaced by 4G modem or WIFI modem to achieve the bonding of up to 10 IP Connections. Besides, P3 can support Wi-Fi hot-spot for data and file transmission over 4G.

P3 supports H.265 and H.264 encoding. H.265 (HEVC) encoding can achieve a lower encoding rate, saving over 50% bandwidth comparing with H.264 under the same conditions. It also supports HDMI input up to 4Kp30Hz and 3G-SDI input up to 1080p60.

Technical data

• Streaming Protocols: NDI | HX, RTMP, SRT, RTSP, HLS
• Display: 4.3 inch touch screen (resolution: 480x800

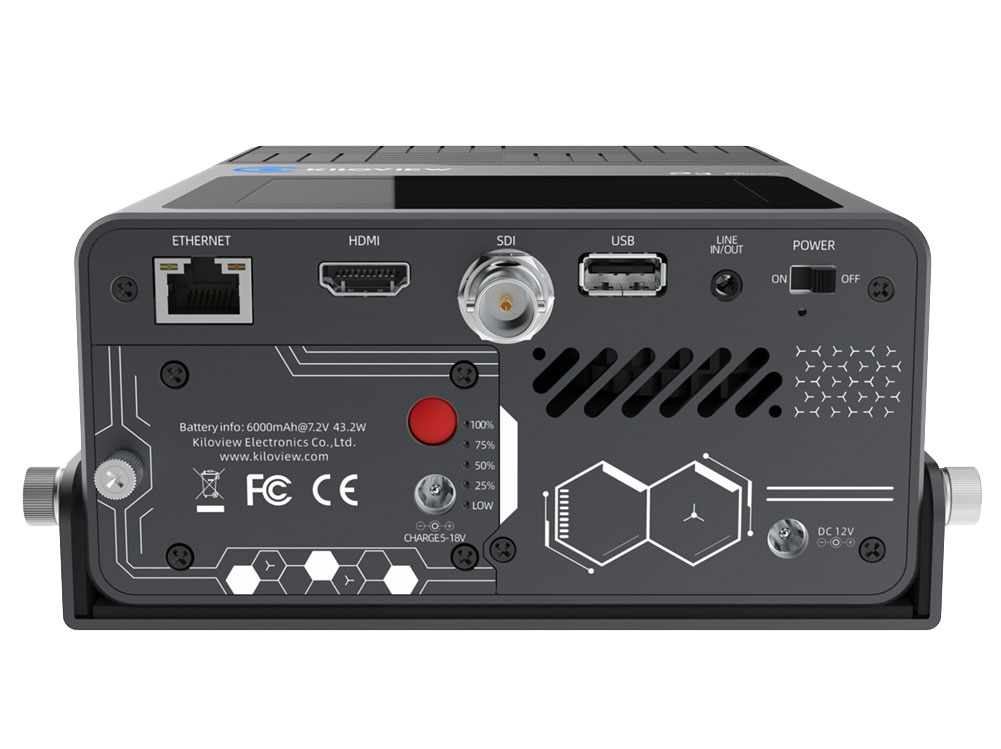

• Video Inputs: 1 x HDMI / 1 x 3G-SDI
• Audio Input: 1*3.5mm Line In
• USB Interface: 1 x USB Type 2.0
• Ethernet Port: 1 x RJ45 adaptive 1000Mbps Ethernet port
• WIFI: 1 x WIFI (2.4G/5G dual-band, IEEE 802.11a /b/g/n/ac)
• 5G/4G Modems: 4 x 5G/4G modems (support for worldwide use)
• CPU: ARM Cortex A7 Quad-core @1.2GHz
• Storage: 1 x eMMC（8GB)
• Memory: 2 x 1GB（DDR4）
• External Storage: SD storage card (maximum capacity 2TB)
• Cooling: Built-in fan
• Tally: Yes
• Intercom: Yes
• Portability: Backpack/Desktop
• Power Supply: DC 12V/2A

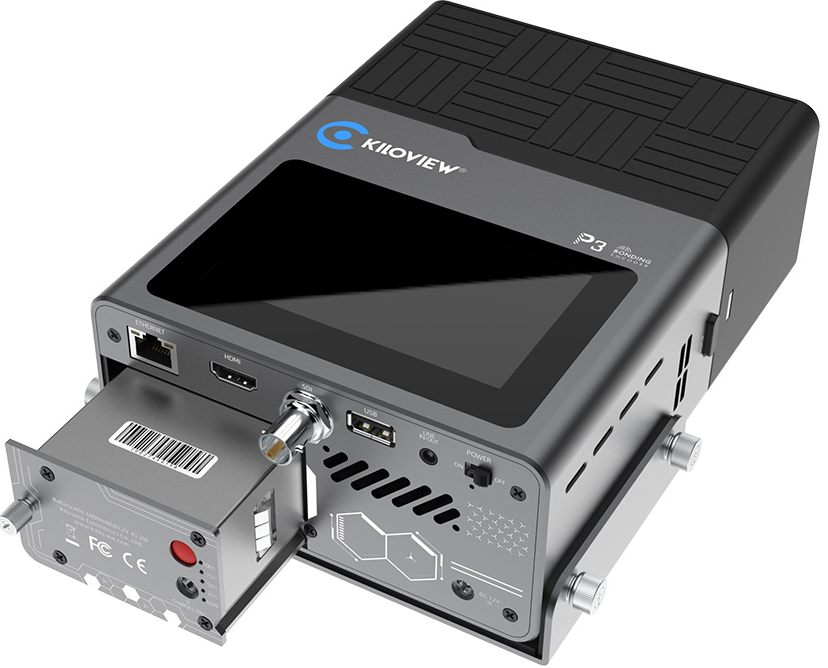

• Battery Life: Dual battery module (Capacity of each battery 5600mAh@7.2V 43.2W. Total of two batteries: 80.6W))
• Power Consumption: 20w
• Operating Temperature: -20℃-45℃
• Storage Temperature: -40℃-50℃
• Dimension: 216.8*143*68mm

Video Resolutions

• Up to 4kp30: 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
• 1280x720p 25/29.97/30/50/59.94/60
• 720x576 25p/50i (PAL SD)
• 720x480 29.97p/59.94i (NTSC SD)
