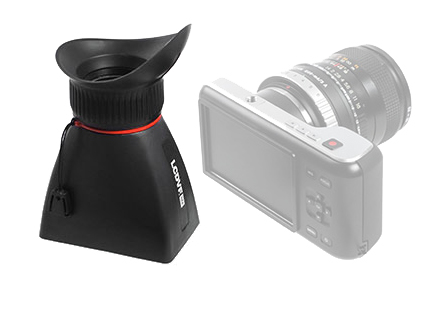

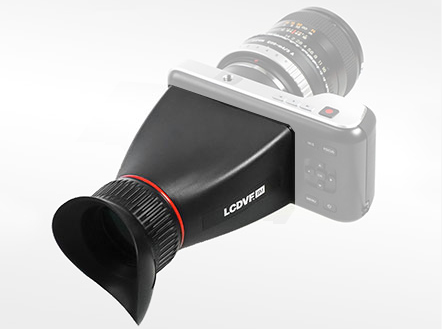

Kinotehnik LCDVF BM optical viewfinder

Kinotehnik LCDVF BM

It features a pair of vacuum cemented achromatic lenses with anti-reflective coating. Kinotehnik LCDVF BM provides 2.2X magnification and allows the Pocket Camera's LCD screen to be viewed even in bright, sunny outdoor conditions.The Kinotehnik LCDVF BM for the Blackmagic Pocket Camera features a magnetic quick-release mount that is designed to enable quick attachment and removal without incurring any wear and tear. A metal frame adheres around the Pocket Camera's LCD screen for the loupe to attach to.

Features

Blocks all ambient light and magnifies Blackmagic Pocket Camera's LCD screen by 220% to aid in focusing. Magnetic quick-release frame adheres to the perimeter of the LCD screen
Cushioned micro-fiber eyecup designed to maximize operator comfort and help reduce condensation

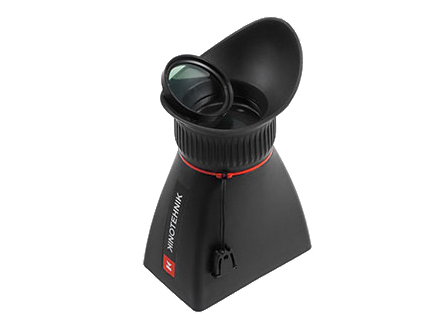

Features 37mm threading to attach diopter correction lenses sold separately
Eyecup rotates 180° to suit either right or left eye operation
Detachable lanyard keeps the LCDVFBM handy when not in use

Technical data

Magnification 2.2x (220%)

Objective Lens Diameter
40 mm
37mm threading for diopter correction lenses

Material
Body: Impact-resistant ABS
Eyecup: Silicone rubber
Eye Cushion: Microfiber
Camera Mount: Galvanized and powder coated metal shield

Weight 110 g

What’s included

1 x LCDVF viewfinder loupe
2 x spare frame for  LCDVF BM
1 x Microfiber eyecushion
1 x Protective neoprene pouch
1 x Lanyard
1 x Cleaning cloth
1 x User manual

Compatibility

Blackmagic Pocket Camera
Panasonic GX7
SONY FS7
SONY FS5
Canon C100
