Lilliput Q10 High Brightness 12G-SDI / HDMI / 4K Monitor

€720.00*

gross: €856.80

Prices excl. VAT plus shipping costs

Available, delivery time: 1-3 days

Product number: SW28323

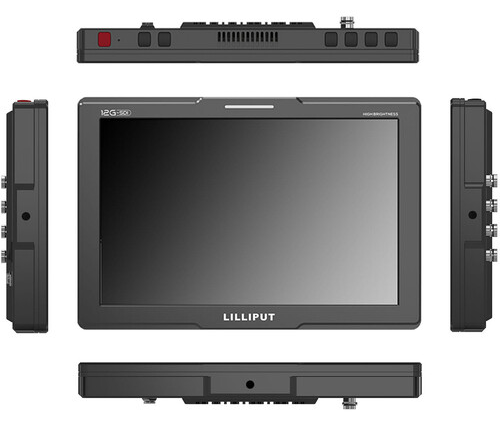

Lilliput Q10

The Lilliput Q10 is a professional camera-top monitor specifically designed for photography and film makers. Fitted with an amazing 1500 nit Ultra Bright LCD screen, it is especially geared for outdoor video and film shooting.

The 10.1" LCD panel has 1920×1200 Full HD native resolution and with 200:1 high-contrast it provides crystal-sharp superior picture quality. Supporting 4K HDMI 2.0 and 12G-SDI signal inputs and loop outputs, it is possible to receive 2× 12G-SDI signals and display both at the same time via the picture-in-picture function, (the size and position of which can be adjusted) and HDMI signals up to 4K 60Hz through an HDMI 2.0 interface - making it compatible with the very latest DSLR cameras on the market.

Features

10.1" inch panel with 1920*1200 resolution
1500cd/m²brightness, 1000:1 contrast, 170°/170°viewing angle

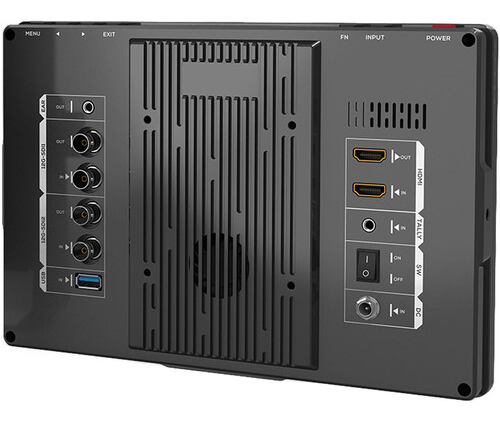

Input Ports: 2x12G-SDI, 1xHDMI 2.0, Tally
Output Ports: 2x12G-SDI loop, 1xHDMI 2.0
Audio: Built-in speaker, Earphone jack
12G-SDI Multiview mode
HDMI 2.0 supporting up to 4K 60Hz
Functions: Multiview, 3D-LUT, HDR, Delicate Milled, camera auxiliary functions etc
VESA 75mm Battery plate

Technical data

Display

Aspect Ratio; 16:10
Brightness: 1500 nits
Contrast Ratio: 1000:1
Display Screen: 10.1"
Look Up Table Support: 3D LUT .cube Format
Resolution: 1920 x 1200
Viewing Angle: 170° / 170°
HDR: ST2084 300 / 1000 / 10000 / HLG
Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User defined

Connections

Audio: SDI - 16CH, 48Khz, 24-bit : HDMI - 8 CH 24 Bit : Ear Jack - 3.5mm : Built in Speaker x1
HDMI Video Input: 1x HDMI 2.0 - 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
SDI Video Input; 2x 12G SDI - 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,1080i 60/50, 720p 60/50

Size

Dimensions: 251mm × 170mm × 30.5mm
Weight: 4KG (Shipping Weight)

Power

Input Voltage: DC 7-24V
Power Consumption: <=37W (12V)

Environment

Operating Temperature: 0°c to 50°c
Storage Temperature: -20°c to 60°c
